PRODUCT HIGHLIGHTS
- Product ConditionNew and Factory Fresh
- Limited Warranty2 Year
- Shipping Weight3 lbs.
- High-Performance KVM Extender | 4K 60Hz | Single Head | Dual Head | Single Port KVM | 2 Port KVM | 4 Port KVM | 4K DisplayPort | USB 2.0 | True USB Emulation | DVI KVM Switch | Fiber Optic | High Resolution Display
Vertiv Avocent LV5500 High-Performance KVM Extender | Receiver
PRODUCT HIGHLIGHTS
- Product ConditionNew and Factory Fresh
- Limited Warranty2 Year
- Shipping Weight3 lbs.
- High-Performance KVM Extender | 4K 60Hz | Single Head | Dual Head | Single Port KVM | 2 Port KVM | 4 Port KVM | 4K DisplayPort | USB 2.0 | True USB Emulation | DVI KVM Switch | Fiber Optic | High Resolution Display
OVERVIEW

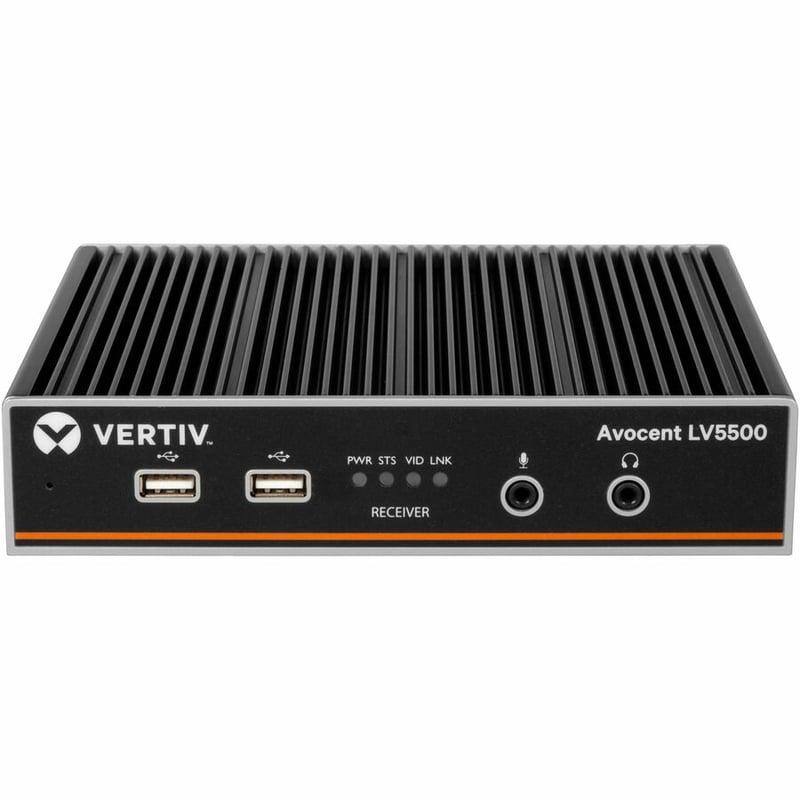

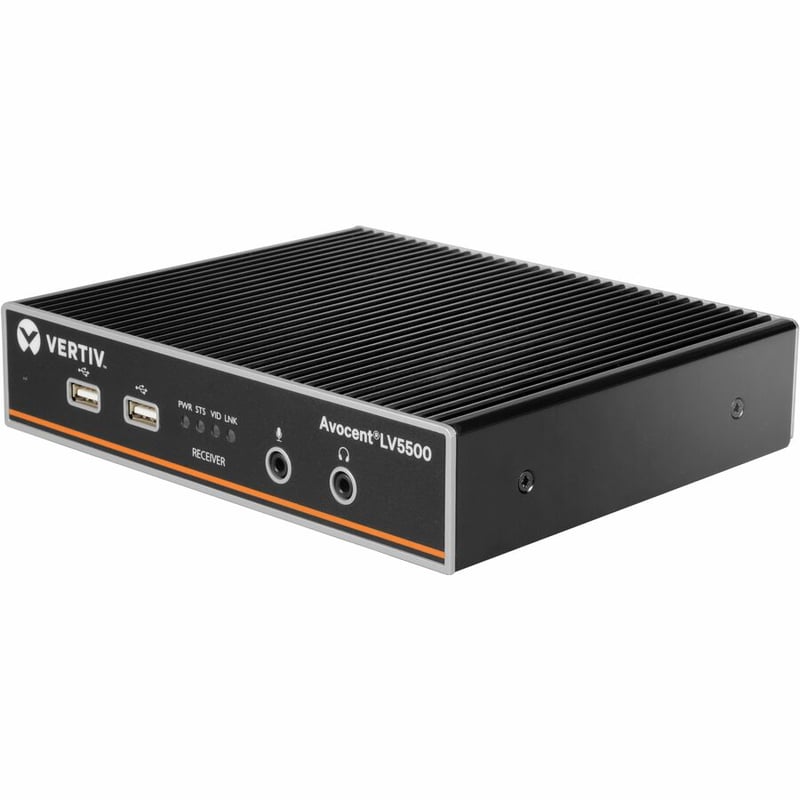

Vertiv Avocent LV5500 High-Performance KVM Extender | Receiver

The Vertiv Avocent LongView 5500 Receiver (LV5500R) is the latest in the Avocent high-performance family of products. Coupled with the Avocent LV5500T, the LV5500R is a point-to-point high performance KVM extender that provides 24-bit color graphics over a single head up to 4K@60Hz. Along with providing real-time access, local port pass through, and HD analog audio, the LV5500R provides an effortless and automatic connection for up to two users, local and remote, over the IP network without the need for extensive manual setup. Increase business security with signed upgrade files and firmware updates from a single USB flash drive. The LV5500R is ideal for broadcasting, control centers, and other industries requiring high performance, 4K video. More from the Manufacturer

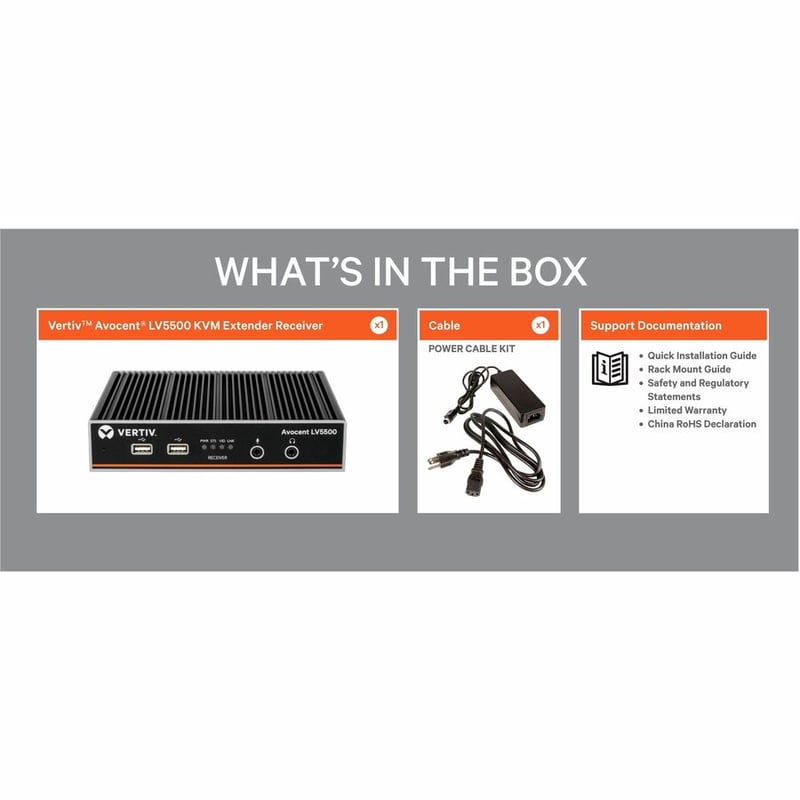

PACKAGE CONTENTS
- LV5500 High-Performance KVM Extender | Receiver
- 1 x LV5500 Extender Quick Installation Guide
- 1 x Extender RMK Quick Installation Guide
- 1 x Compliance/Safety Sheet (See PLM BOM) 1 each
- 1 x Customer Support/Warranty Card (See PLM BOM)
- 1 x 3.5mm stereo plug to plug audio cable, 3meter
- 1 x USB cable, Type A to Type B, 1.8meter
- 1 x DisplayPort cable, M-M, High Bit-Rate, 2meter
- 1 x Power supply: HK-AB-050A400-D56 or HK-25-AB-050A400-D56
- 1 x China RoHS Declaration
- 1 x Vertiv document wallet
