PRODUCT HIGHLIGHTS
- Product ConditionNew and Factory Fresh
- Limited Warranty3 Year
- Shipping Weight7 lbs.
- x HDMI Out
- USB
- Rack-mountable
Vaddio Cisco Codec Kit for OneLINK Bridge - For Conference Cameras - Black
PRODUCT HIGHLIGHTS
- Product ConditionNew and Factory Fresh
- Limited Warranty3 Year
- Shipping Weight7 lbs.
- x HDMI Out
- USB
- Rack-mountable
OVERVIEW

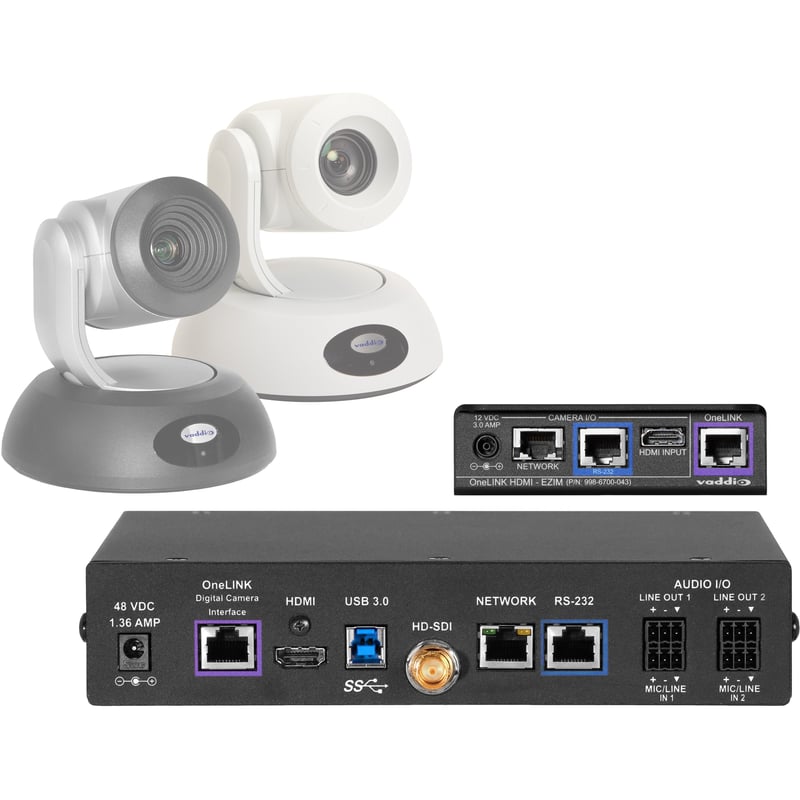

Vaddio Cisco Codec Kit for OneLINK Bridge - For Conference Cameras - Black

Brings your legacy RoboSHOT HDMI camera and non-USB audio components into your USB conferencing environment and enables you to pair them with a Cisco codec for traditional videoconferencing quality. Extends power, video and control to your camera over a single category cable. Packaged for Cisco SX20*, SX80 or C-Series codecs; compatible with legacy RoboSHOT 12 and 30 HDMI. Not compatible with RoboSHOT 12E HDMI and RoboSHOT 30E HDMI cameras. Key Features: Simple, clutter-free camera extension with HDBaseT technology Power, video and control over a single Cat-5e cable up to 230 ft. (70m), or over a Cat-6 cable up to 328 ft. (100m) Bridges audio and video for easy soft-client conferencing Configurable audio matrix with AEC Simultaneous HDMI, USB 3.0, and HD-SDI outputs Up to 1080p/60 resolution available over uncompressed USB
PACKAGE CONTENTS

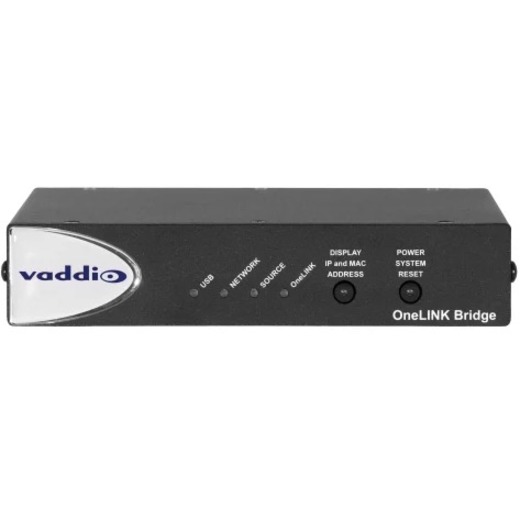

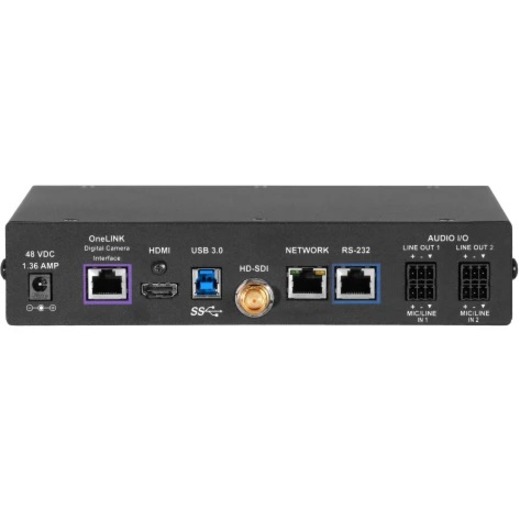

- OneLINK Bridge Interface
- OneLINK HDMI EZIM with mounting screws
- Quick-Start Guide
- 48V power supply with AC cord set(s)
- 4 x 3-position phoenix-style connectors
- 1' (0.3m) cat-5 cable, black
- 3' (0.9m) cat-5 cable, black
- 3' (0.3m) directional cat-5 cable for Cisco SX20**
- 1' (0.3m) HDMI cable
- 3' (0.9m) HDMI cable
- 1' (0.3m) EIAJ-04 to EIAJ-04 power cable for camera
- 6' (1.8m) USB 3.0 cable, type A to B
- EZCamera RS-232 Control Adapter for Cisco codec serial 9-pin ports
