PRODUCT HIGHLIGHTS
- Product ConditionNew and Factory Fresh
- Shipping Weight9 lbs.
- 1 Input Device
- 1 Output Device
- 328.08 ft Range
- 2 x Network (RJ-45)
- 1 x HDMI In
- 1 x HDMI Out
- 2160p
- 4K
- 3840 x 2160
- Twisted Pair
- Category 6
- Wall Mountable
Vaddio OneLINK System for Sony & Panasonic HDMI Cameras
PRODUCT HIGHLIGHTS
- Product ConditionNew and Factory Fresh
- Shipping Weight9 lbs.
- 1 Input Device
- 1 Output Device
- 328.08 ft Range
- 2 x Network (RJ-45)
- 1 x HDMI In
- 1 x HDMI Out
- 2160p
- 4K
- 3840 x 2160
- Twisted Pair
- Category 6
- Wall Mountable
OVERVIEW
Vaddio OneLINK System for Sony & Panasonic HDMI Cameras

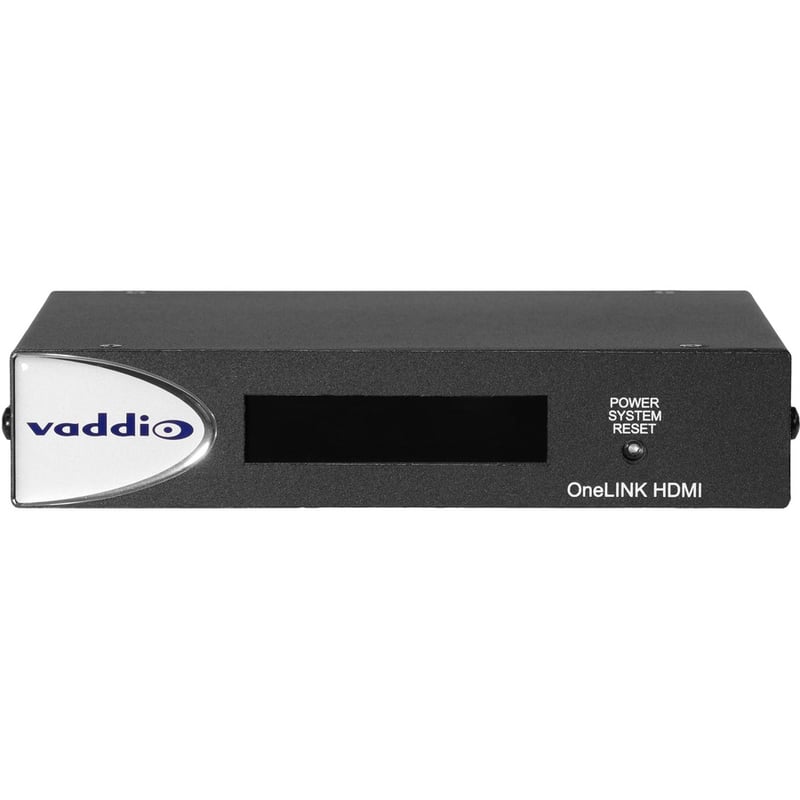

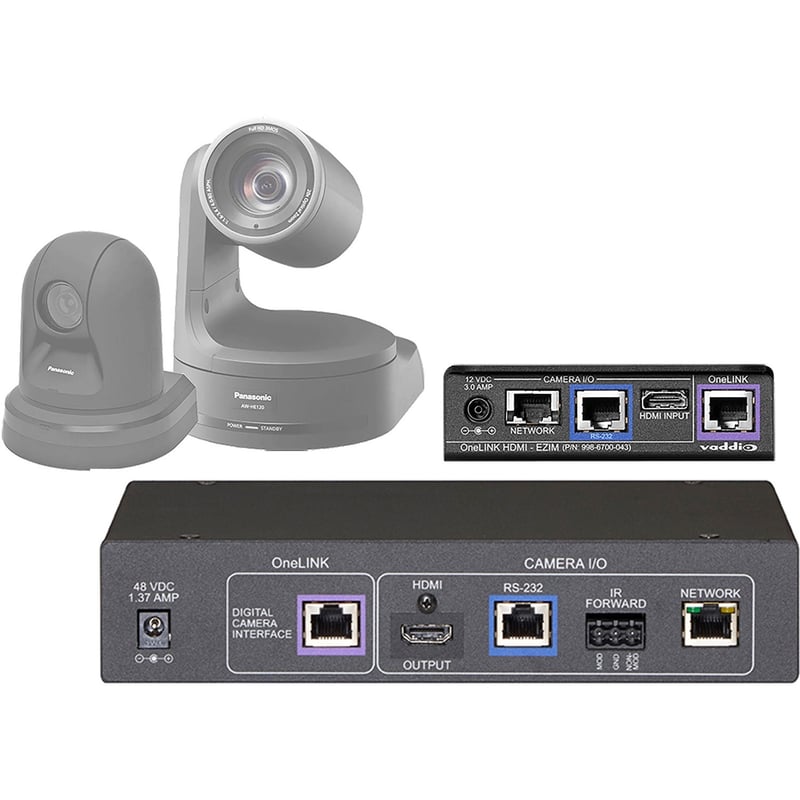

OneLINK™ Digital Camera Interface | Vaddio™ OneLINK System for Sony® and Panasonic® HDMI Cameras | HDBaseT™ Video, Power and Control Extension over a Single Cat-5e or Better Cable Part Numbers: 999-9530-000 North America, 999-9530-001 InternationalVaddio's OneLINK System for Sony and Panasonic HDMI Cameras is a digital camera extension system that extends HDMI video, power, network and RS232 control on a single Cat-5e/6 cable at distances of up to 328' (100m). Without any doubt, this new OneLINK system allows for easier, simpler and faster installations. The OneLINK system sends and regulates power to the camera, provides a bidirectional control channel for ...
PACKAGE CONTENTS
- 1 x OneLINK HDMI Interface
- 1 x OneLINK EZIM for the Camera Side
- 1 x 48 VDC, 1.36 Amp Switching Power Supply
- 1 x AC Cord Set
- 1 x 12\" (305mm) HDMI Cable
- 1 x 12\" (305mm) Sony 12 VDC Power Cable
- 1 x 12\" (305mm) Panasonic 12 VDC Power Cable
- 1 x 12\" (305mm) Cat-5e Patch Cable for Network
- 1 x 12\" (305mm) RJ-45 to 8-Pin Mini Din for RS-232

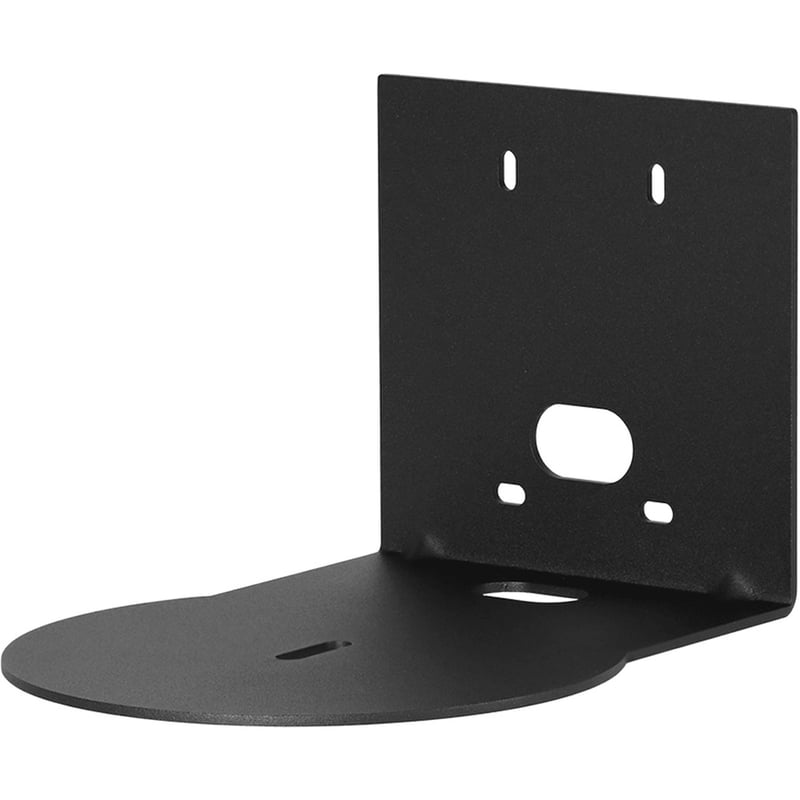

- 1 x Thin Profile Wall Mount (black) that fits Sony SRG120DH, SRG-300H and Panasonic AW-HE40H
- 2 x 6-32 x .188\" Black Phillips Flat Head Screws
