8 PORT POE SWITCH. PASSIVE POE

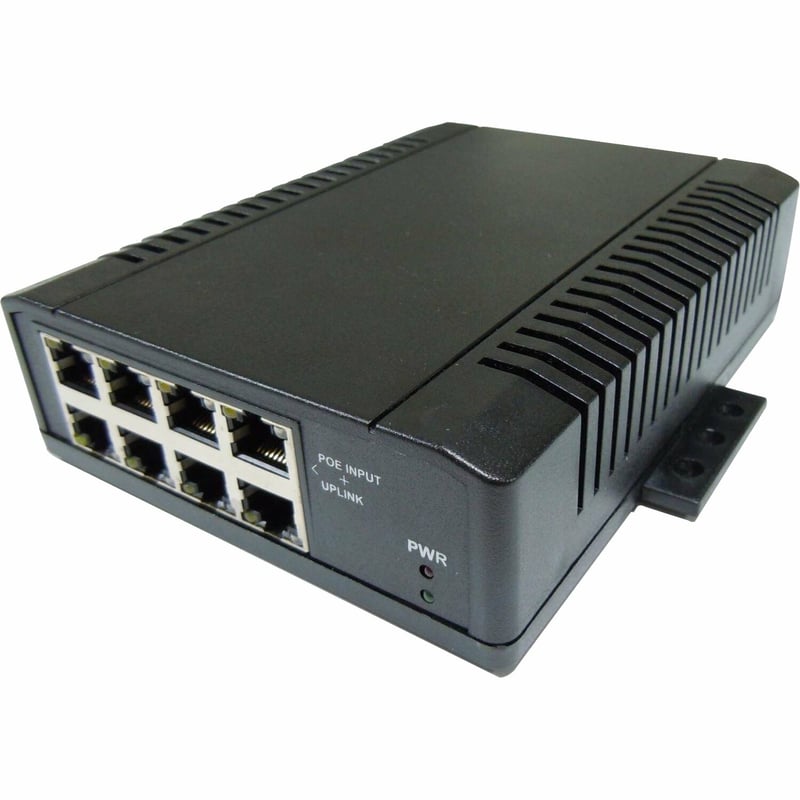

The TP-SW8-D Power Over Ethernet 802.3af/at (PoE) 10/100Mb switch offered by Tycon Power Systems is a fully automatic high speed 8 port Ethernet switch. The -NC version is a non compliant model for devices which are not 802.3af/at compliant. On the -NC version the PoE output voltage = the input voltage so it is universal in its application. The DC input power range can be from 12V to 57V. The units can be powered via PoE to port 8 (2A max). Both models supply power to the remote device on the unused Ethernet pins 4,5(V+) and 7,8(V-). The Ethernet spec supports distances up to 100m (328 feet) between the PoE switch and the remote device. 18V, 24V and 48V 60W, 120W and 180W power supplies are available. There are 2 power inputs for attachment of primary and backup power sources.
