PRODUCT HIGHLIGHTS
- Product ConditionNew and Factory Fresh
- Shipping Weight1 lbs.
- 10 V DC, 15 V DC Input
- 24 V DC Output
- 1 x Ethernet Input Port(s)
- 1 x PoE Output Port(s)
- 35 W
10-15VDC IN 24VDC OUT 35W HI POWER DC TO
PRODUCT HIGHLIGHTS
- Product ConditionNew and Factory Fresh
- Shipping Weight1 lbs.
- 10 V DC, 15 V DC Input
- 24 V DC Output
- 1 x Ethernet Input Port(s)
- 1 x PoE Output Port(s)
- 35 W
OVERVIEW
10-15VDC IN 24VDC OUT 35W HI POWER DC TO

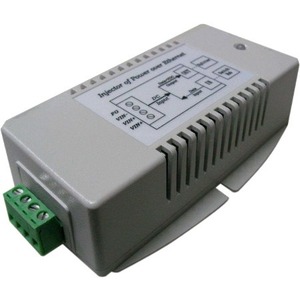

Tycon Power Systems The TP-DCDC-1224-HP DC to DC converters offered by Tycon Power Systems are a low cost and high reliability solution for those requiring 24VDC Power Over Ethernet voltage from a 12V battery system. They have an integrated POE injector to apply the regulated 24VDC to the CAT5 Ethernet cable. The input voltage must be between 10VDC and 15VDC.They accept data-in to a shielded RJ45 Jack and provide data-out and POE power on the shielded RJ45 output jack. They work by supplying power on the unused Ethernet pins 4,5(V+) and 7,8(V-).They have various protections for surge, short circuit and overload. The units have power output of 30W.
PACKAGE CONTENTS
No package contents information available.
