PRODUCT HIGHLIGHTS
- Product ConditionNew and Factory Fresh
- Shipping Weight6 lbs.
- 256 GB DDR3 SDRAM Maximum RAM
- DDR3-1600/PC3-12800, DDR3-1333/PC3-10600, DDR3-1066/PC3-8500, DDR3-800/PC3-6400
- DIMM, LRDIMM, RDIMM, UDIMM
- 16 x Memory Slots
- Gigabit Ethernet
- 3 x SATA Interfaces

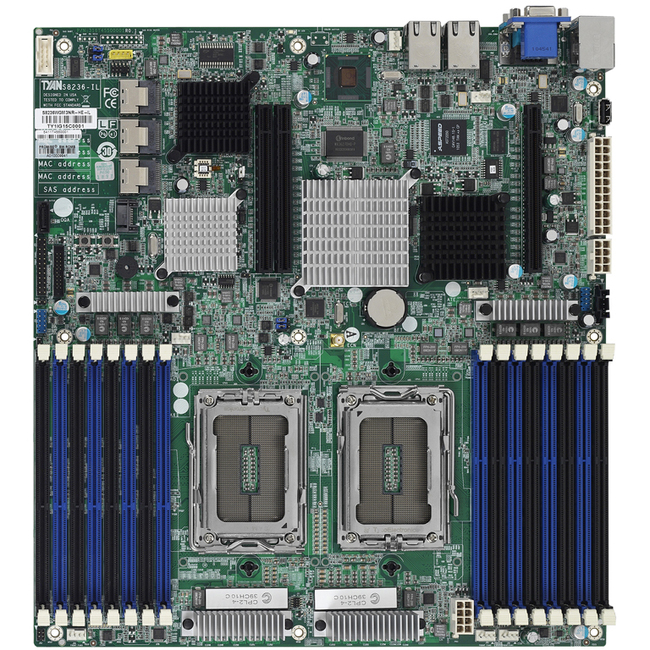

Tyan S8236-IL Server Motherboard - AMD SR5690 Chipset - Socket G34 LGA-1974 - SSI EEB
PRODUCT HIGHLIGHTS
- Product ConditionNew and Factory Fresh
- Shipping Weight6 lbs.
- 256 GB DDR3 SDRAM Maximum RAM
- DDR3-1600/PC3-12800, DDR3-1333/PC3-10600, DDR3-1066/PC3-8500, DDR3-800/PC3-6400
- DIMM, LRDIMM, RDIMM, UDIMM
- 16 x Memory Slots
- Gigabit Ethernet
- 3 x SATA Interfaces
OVERVIEW
Tyan S8236-IL Server Motherboard - AMD SR5690 Chipset - Socket G34 LGA-1974 - SSI EEB
AMD Opteron™ 6100/6200 series1U/2U-optimized dual-socket server platformfor enterprise & GPGPU applicationsDual G34 sockets support AMD Opteron™ 6100/6200 series list processors (Magny-Cours/Interlagos)Support (4) HyperTransport™ 3.0 link,Yes bandwidth up to 25.6 GB/s @ 6.4GT/s per linkAMD SR5690 + SR5650 + SP5100 (S8236WGM3NR-HE)AMD SR5690 + SP5100 (S8236WGM3NR/ S8236GM3NR)(16) 240-pin DDR3 DIMM slots support up to 256GB R-DDR3 1333/1066/800MHz w/ ECC memory(2) PCI-E Gen.2 x16 slots (S8236GM3NR/ S8236WGM3NR)(6) SATA-II ports via (1) Mini-SAS & (2) SATA connectors w/RAID 0, 1, 10, 5 support(8) SAS 6G ports via (2) Mini-SAS connectors w/ RAID 0, 1, 1E,10 support (S8236WGM3NR-HE/ S8236GM3NR)(3) GbE LANOnboard BMC w/ IPMI and iKVM supportEATX (12\" x 13\") form factor
PACKAGE CONTENTS
- S8236 Series S8236-IL Server Motherboard
- 1 x User's Manual / (1) Quick Ref. Guide
- 1 x TYAN Installation CD
- 1 x I/O Shield
- 2 x SATA Signal Cables / (1) Mini-SAS cable
- 3 x Mini-SAS Cables
