PRODUCT HIGHLIGHTS
- Product ConditionNew and Factory Fresh
- Shipping Weight5 lbs.
- 96 GB DDR3 SDRAM Maximum RAM
- DDR3-1333/PC3-10600, DDR3-1066/PC3-8500, DDR3-800/PC3-6400
- DIMM
- 12 x Memory Slots
- Gigabit Ethernet
- 3 x SATA Interfaces

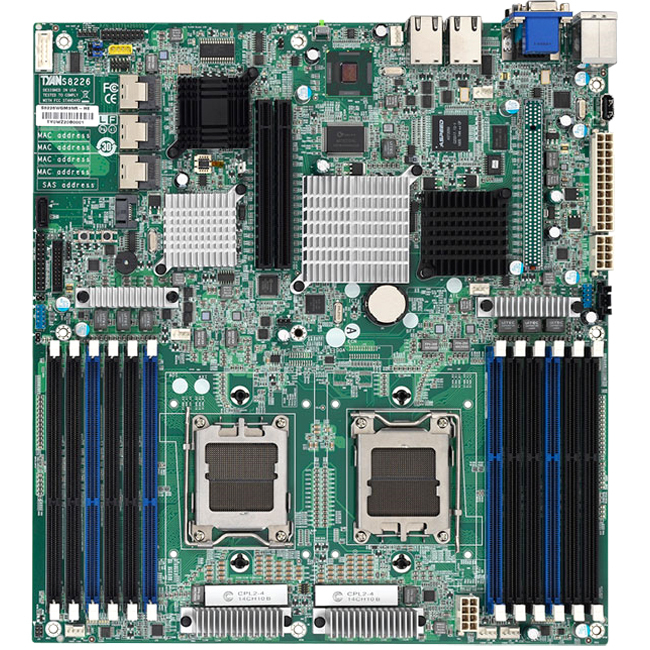

Tyan S8226 S8226WGM3NR Server Motherboard Server Motherboard - AMD SR5690 Chipset - Socket C32 LGA-1207 - SSI EEB
PRODUCT HIGHLIGHTS
- Product ConditionNew and Factory Fresh
- Shipping Weight5 lbs.
- 96 GB DDR3 SDRAM Maximum RAM
- DDR3-1333/PC3-10600, DDR3-1066/PC3-8500, DDR3-800/PC3-6400
- DIMM
- 12 x Memory Slots
- Gigabit Ethernet
- 3 x SATA Interfaces
OVERVIEW
Tyan S8226 S8226WGM3NR Server Motherboard Server Motherboard - AMD SR5690 Chipset - Socket C32 LGA-1207 - SSI EEB
AMD OpteronTM 4100/4200 series1U/2U-optimized dual-socket serverplatform for enterprise & IPDC applicationsDual C32 sockets support up to (2) AMD OpteronTM 4100/4200 series processors (Lisbon/Valencia)Support (2) HyperTransportTM 3.0 link, max. bandwidth up to 25.6 GB/s @ 6.4GT/s per linkAMD SR5690 + SR5650 + SP5100 (S8226WGM3NR-HE)AMD SR5690 + SP5100 (S8226WGM3NR/ S8226GM3NR)(12) 240-pin DDR3 DIMM slots support up to 192GB R-DDR3 1333/1066/800MHz w/ ECC memory(2) PCI-E Gen.2 x16 slots (S8226GM3NR/ S8226WGM3NR)(3) PCI-E Gen.2 x16 slots (S8226WGM3NR-HE)(6) SATA-II ports via (1) Mini-SAS & (2) SATA connectors w/ RAID 0, 1, 10, 5 support(8) SAS 6G ports via (2) Mini-SAS connectors w/ RAID 0, 1, 1E, 10 support (S8226WGM3NR-HE/ S8226GM3NR)(3) GbE LANOnboard BMC w/ IPMI and iKVM supportEATX (12\" x 13\") form factor
PACKAGE CONTENTS
- S8226 S8226WGM3NR Server Motherboard
- 1 x User's Manual / (1) Quick Ref. Guide
- 1 x Tyan Installation Cd
- 1 x I/O Shield
- 2 x Sata Signal Cables / (1) Mini-Sas Cable
- 3 x Mini-Sas Cables
