PRODUCT HIGHLIGHTS
- Product ConditionNew and Factory Fresh
- Limited Warranty3 Year
- Shipping Weight150 lbs.
- 5000VA/3750W
- 8.5 Minute Full Load
- 1 x NEMA L6-30R, 2 x NEMA L6-20R, 8 x NEMA 5-15/20R
Tripp Lite by Eaton UPS SmartPro 208 & 120V 5kVA 3.75kW Line-Interactive Sine Wave UPS 3U Extended Run Network Card Options USB DB9
PRODUCT HIGHLIGHTS
- Product ConditionNew and Factory Fresh
- Limited Warranty3 Year
- Shipping Weight150 lbs.
- 5000VA/3750W
- 8.5 Minute Full Load
- 1 x NEMA L6-30R, 2 x NEMA L6-20R, 8 x NEMA 5-15/20R
OVERVIEW

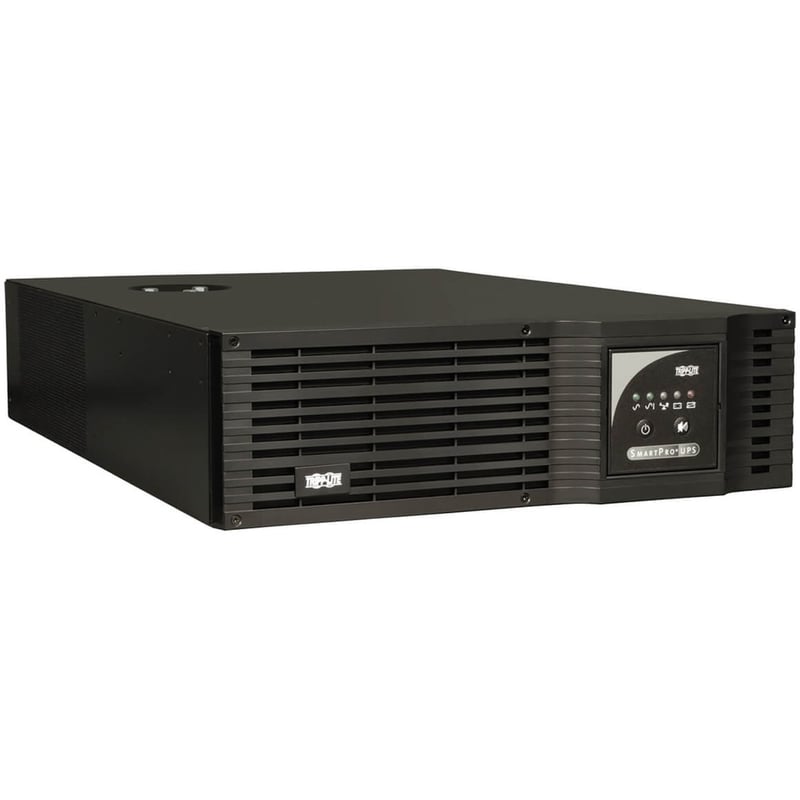

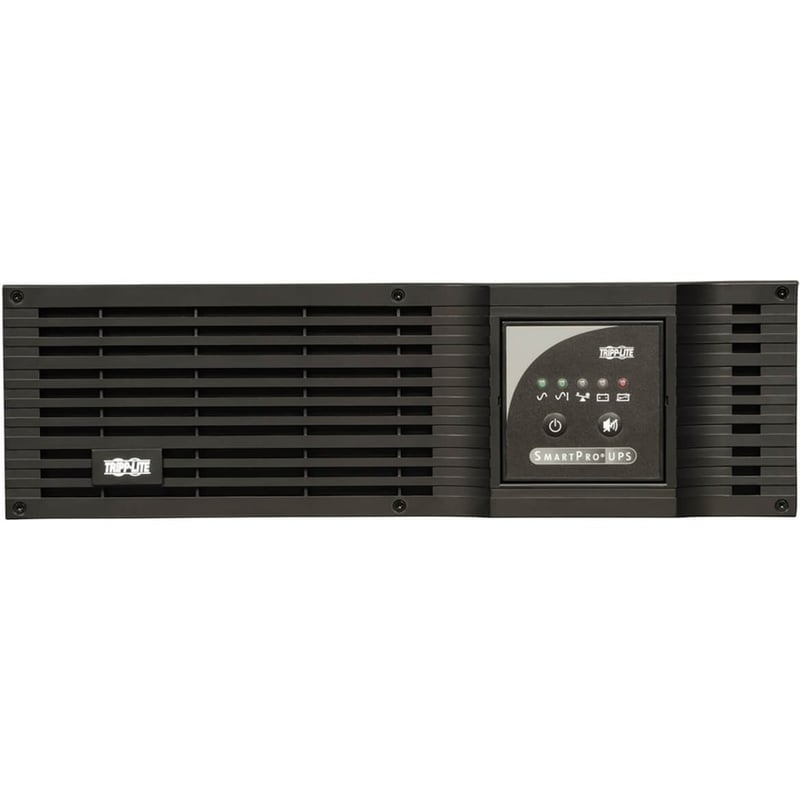

Tripp Lite by Eaton UPS SmartPro 208 & 120V 5kVA 3.75kW Line-Interactive Sine Wave UPS 3U Extended Run Network Card Options USB DB9

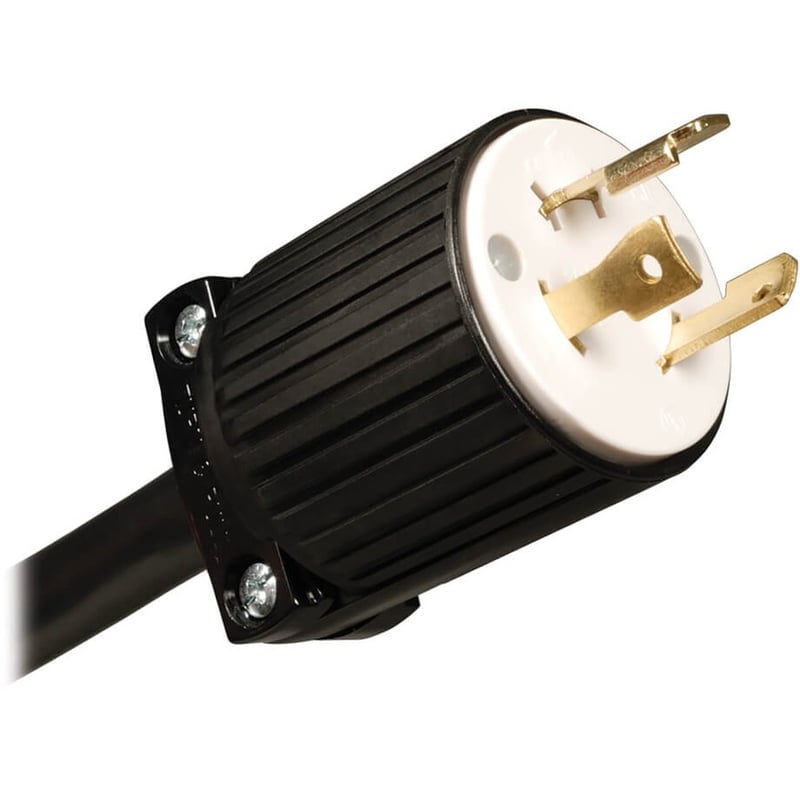

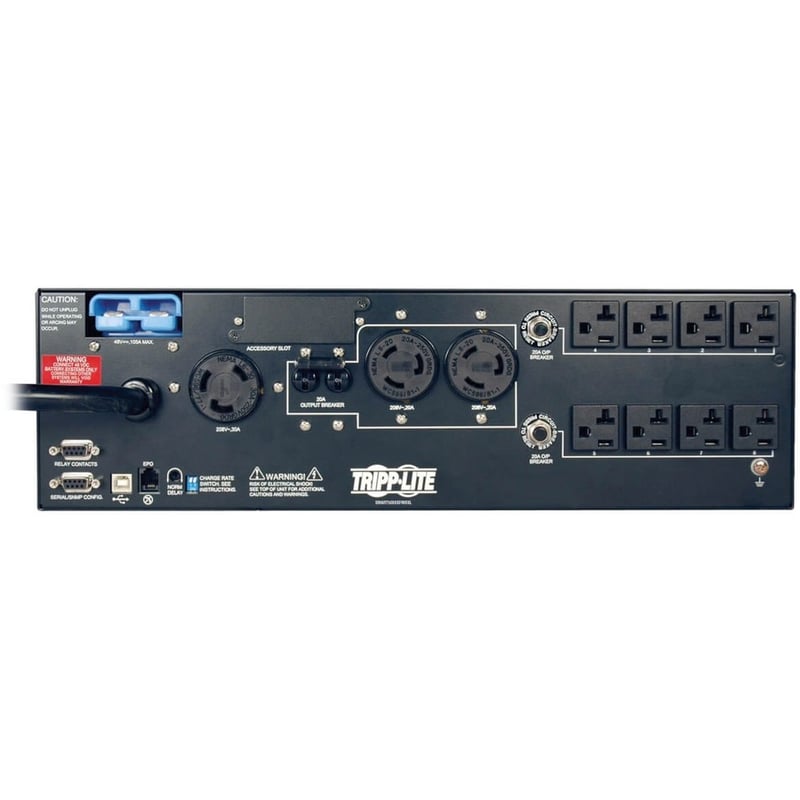

Tripp Lite 5kVA Smart RM UPS. 5000VA line-interactive UPS for server, network and telecommunications equipment. UPS with internal batteries requires 3 rack spaces installed. Accepts 208V nominal input voltage. Simultaneous 208 & 120V output. Corrects brownouts and overvoltages from 167V to 260V. Sine wave output. Maintains battery-derived AC output during blackouts and severe voltage fluctuations. Expandable runtime with optional external battery packs. 11 output receptacles. NEMA L6-30P input connection with support for user-supplied 50A or hardwire input. Network-grade AC surge and noise suppression. Network management interfaces include USB, DB9 serial and SNMPWEBCARD slot. Supports simultaneous detailed monitoring of equipment load ...

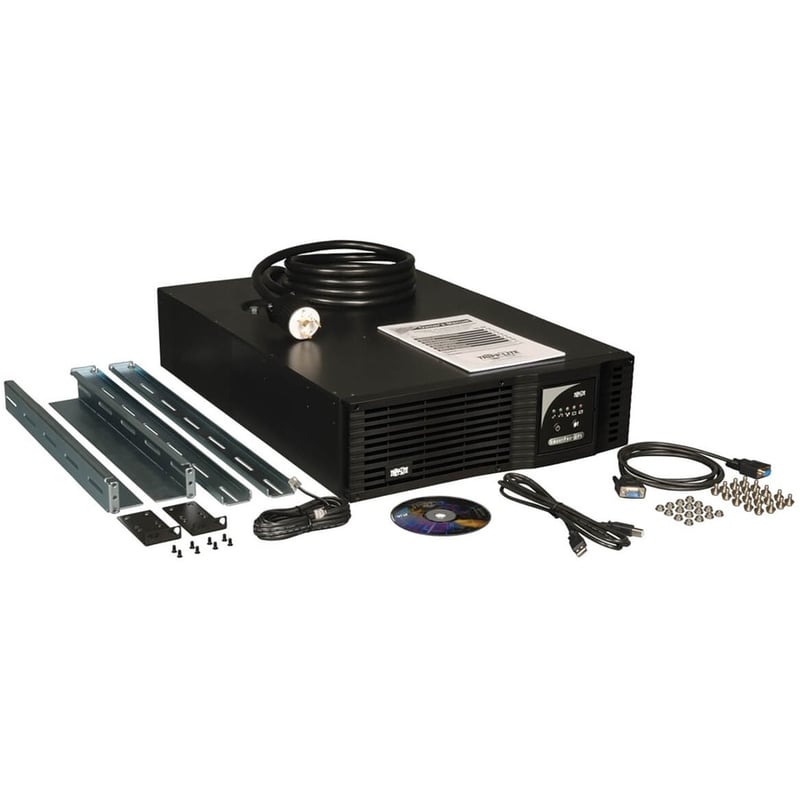

PACKAGE CONTENTS
- SmartPro Series SMART5000XFMRXL 5000VA Tower/Rack Mountable UPS
- SMART 5000XFMRXL UPS System
- PowerAlert Software and Cabling
- Mounting hardware for 4-post rackmount installation
- Warranty information
- Instruction manual
