PRODUCT HIGHLIGHTS
- Product ConditionNew and Factory Fresh
- Limited Warranty2 Year
- Shipping Weight15 lbs.
- Switched
- NEMA L6-20P, IEC 60320 C20
- 4 x IEC 60320 C19, 20 x IEC 60320 C13
- 230 V AC
- 0U
- Vertical
- Rack Mount
- TAA Compliant
Tripp Lite by Eaton PDU 3.7kW Single-Phase Switched PDU - LX Interface 208/230V Outlets (20 C13 & 4 C19) C20/L6-20P 0U TAA
PRODUCT HIGHLIGHTS
- Product ConditionNew and Factory Fresh
- Limited Warranty2 Year
- Shipping Weight15 lbs.
- Switched
- NEMA L6-20P, IEC 60320 C20
- 4 x IEC 60320 C19, 20 x IEC 60320 C13
- 230 V AC
- 0U
- Vertical
- Rack Mount
- TAA Compliant
OVERVIEW

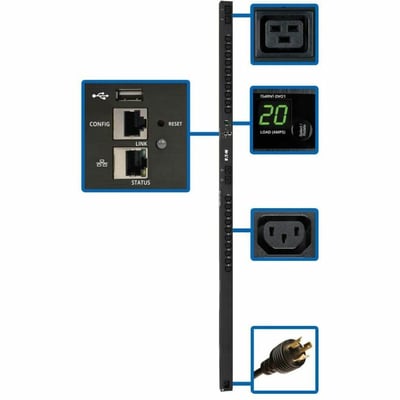

Tripp Lite by Eaton PDU 3.7kW Single-Phase Switched PDU - LX Interface 208/230V Outlets (20 C13 & 4 C19) C20/L6-20P 0U TAA

The PDUMV20HVNETLX 3.2-3.8kW Single-Phase Switched PDU provides advanced network control and remote power monitoring with the ability to turn on, turn off, reboot or lock out power to each outlet. Recommended for any IT or industrial application, it features 24 switched outlets (20 C13 and 4 C19) with included plug-lock insert sleeves to prevent cables from becoming accidentally disconnected. A 10-foot cord with NEMA L6-20P plug connects the PDU's C20 inlet to a compatible AC power source, generator or protected UPS.The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via ...
PACKAGE CONTENTS
- PDUMV20HVNETLX 24-Outlet PDU
- Built-in LX Platform Interface
- Detachable NEMA L6-20P to C19 power cord, 10 ft.
- Configuration Cable
- 24 x Plug-lock Inserts
- Rack-mounting Hardware
- Mounting Bracket Accessory
- Owner's Manual
