PRODUCT HIGHLIGHTS
- Product ConditionNew and Factory Fresh
- Limited Warranty2 Year
- Shipping Weight17 lbs.
- Monitored
- NEMA L6-30P
- 6 x IEC 60320 C19, 36 x IEC 60320 C13
- 230 V AC
- 0U
- Vertical
- Rack Mount
- Rack-mountable
- TAA Compliant
Tripp Lite by Eaton PDU 5.5kW Single-Phase Monitored PDU LX Interface 208/230V Outlets (36 C13/6 C19) L6-30P 10 ft. (3.05 m) Cord 0U 1.8m/70 in. Height TAA
PRODUCT HIGHLIGHTS
- Product ConditionNew and Factory Fresh
- Limited Warranty2 Year
- Shipping Weight17 lbs.
- Monitored
- NEMA L6-30P
- 6 x IEC 60320 C19, 36 x IEC 60320 C13
- 230 V AC
- 0U
- Vertical
- Rack Mount
- Rack-mountable
- TAA Compliant
OVERVIEW
Tripp Lite by Eaton PDU 5.5kW Single-Phase Monitored PDU LX Interface 208/230V Outlets (36 C13/6 C19) L6-30P 10 ft. (3.05 m) Cord 0U 1.8m/70 in. Height TAA

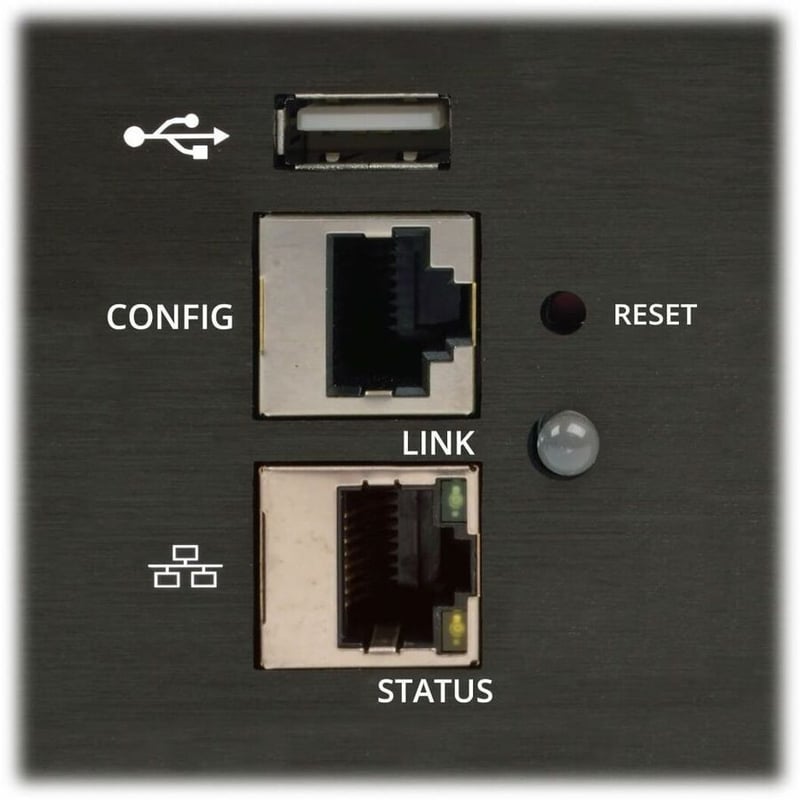

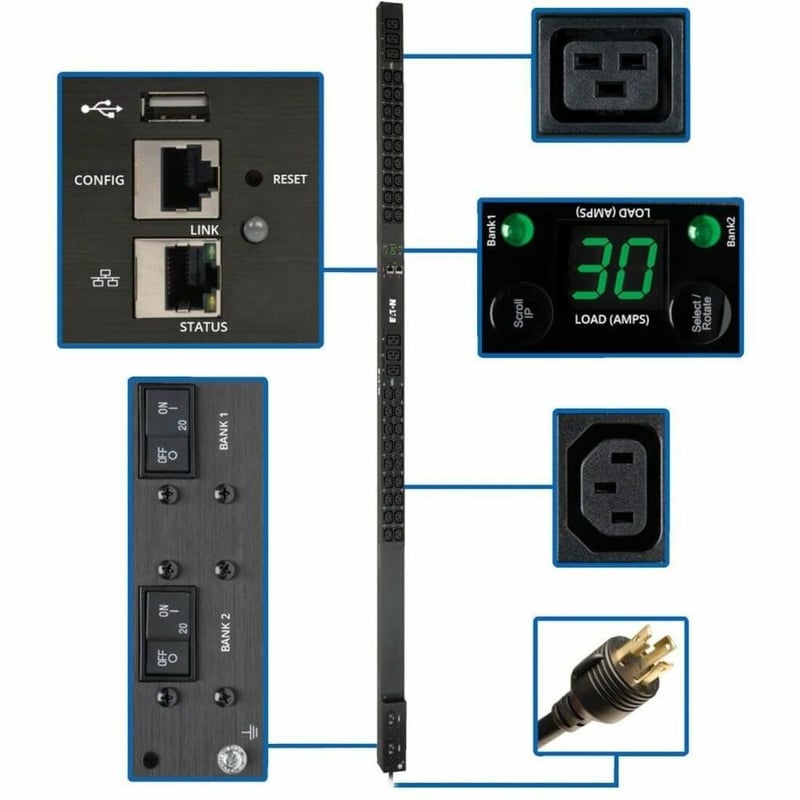

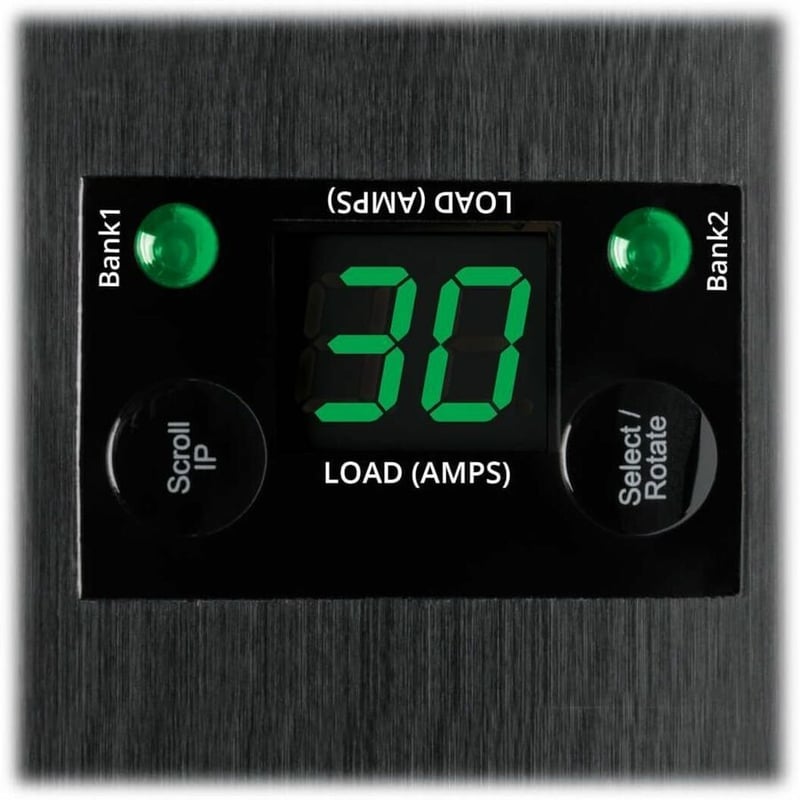

The PDUMNV30HV2LX 5.8kW Single-Phase Monitored PDU provides real-time remote monitoring of voltage, frequency and load levels via built-in network connection. By reducing the frequency of on-site visits, these advanced remote capabilities can save you money and reduce downtime. The 0U PDU features 42 outlets (36 C13 and 6 C19) with included plug-lock insert sleeves to prevent cables from becoming accidentally disconnected. A 10-foot cord with NEMA L6-30P plug connects the PDU to a compatible AC power source, generator or protected UPS. The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications ...
PACKAGE CONTENTS
- PDUMNV30HV2LX 42-Outlet PDU
- Built-in LX Platform Interface
- Configuration Cable
- 42 x Plug-lock Insert Sleeves
- Rack-mounting Hardware
- Mounting Bracket Accessory
- Owner's Manual
