PRODUCT HIGHLIGHTS
- Product ConditionNew and Factory Fresh
- Limited Warranty2 Year
- Shipping Weight22 lbs.
- IEC 60309 32A BLUE (2P+E)
- 200 V AC, 208 V AC, 220 V AC, 230 V AC, 240 V AC
- 7.70 kVA
- 1U
- Horizontal Rackmount
Eaton Tripp Lite Series 7.7kW Single-Phase 200-240V Monitored Automatic Transfer Switch PDU, Two 32A IEC309 32A Blue Inputs, 1 IEC309 32A Outlet, 1U
PRODUCT HIGHLIGHTS
- Product ConditionNew and Factory Fresh
- Limited Warranty2 Year
- Shipping Weight22 lbs.
- IEC 60309 32A BLUE (2P+E)
- 200 V AC, 208 V AC, 220 V AC, 230 V AC, 240 V AC
- 7.70 kVA
- 1U
- Horizontal Rackmount
OVERVIEW

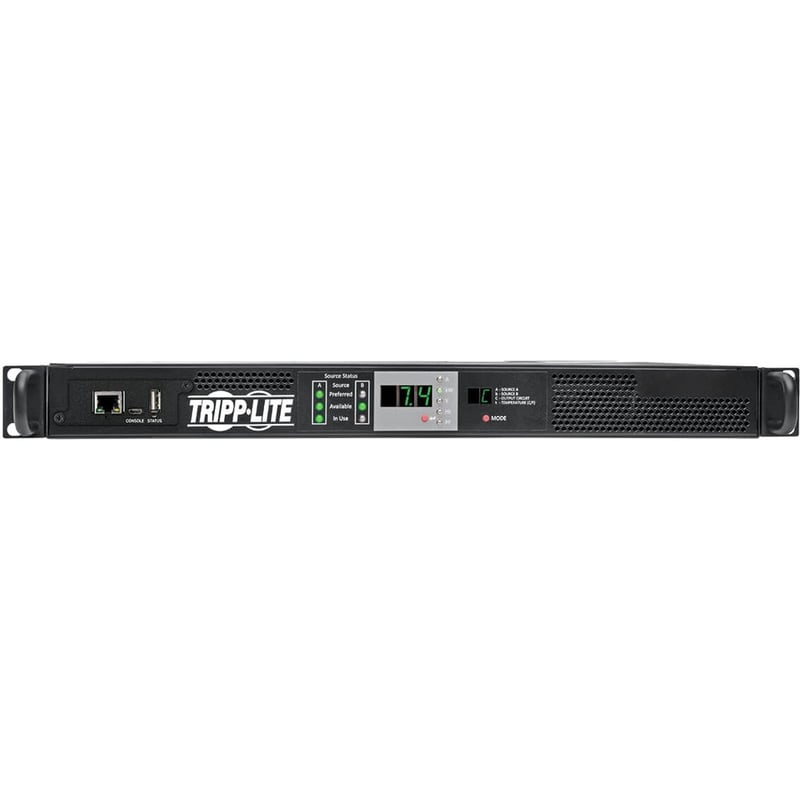

Eaton Tripp Lite Series 7.7kW Single-Phase 200-240V Monitored Automatic Transfer Switch PDU, Two 32A IEC309 32A Blue Inputs, 1 IEC309 32A Outlet, 1U

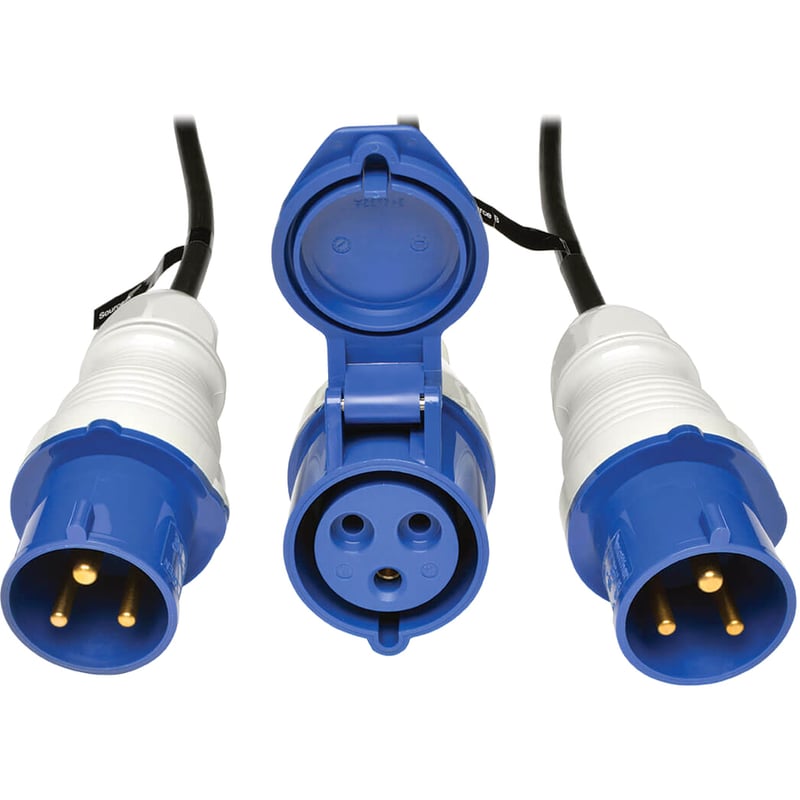

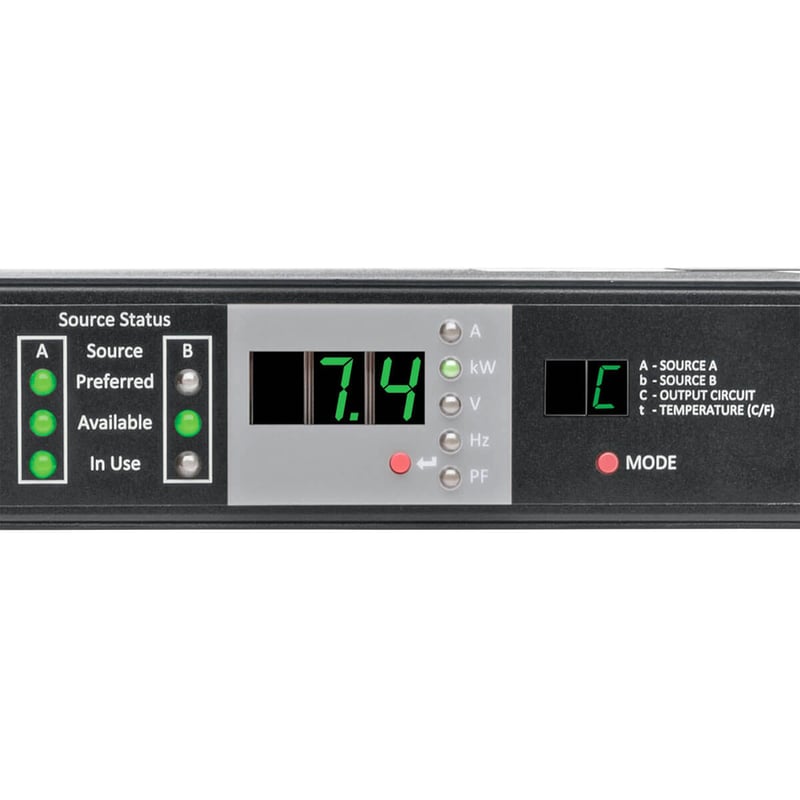

The PDUMNH32HVAT 7.4kW Single-Phase 230V ATS/Monitored PDU provides remote power monitoring and enables redundant power for network devices with non-redundant power supply configurations. Ideal for data centers and server rooms, it mounts in 1U of space in EIA-standard 19-inch racks and has one IEC 309 32A Blue outlet for connecting a single device or an additional 230V multi-outlet PDU with IEC 309 32A Blue plug, such as Tripp Lite's PDUMV32HV.Dual 3 meter (10ft) input cords, each with IEC 309 32A Blue input plug, connect to any two separate primary and secondary input power sources, including out-of-phase input sources. The PDU ...
PACKAGE CONTENTS
- PDUMNH32HVAT 7.4kW Single-Phase 230V ATS/Monitored PDU
- Rack-Mounting Brackets
- Rear Support Rail Kit
- Owner's Manual
