PRODUCT HIGHLIGHTS
- Product ConditionNew and Factory Fresh
- Limited Warranty2 Year
- Shipping Weight16 lbs.
- Metered
- NEMA L6-30P
- 16 x IEC 60320 C13, 2 x IEC 60320 C19
- 230 V AC
- 2U
- Horizontal
- Rack-mountable
- TAA Compliant

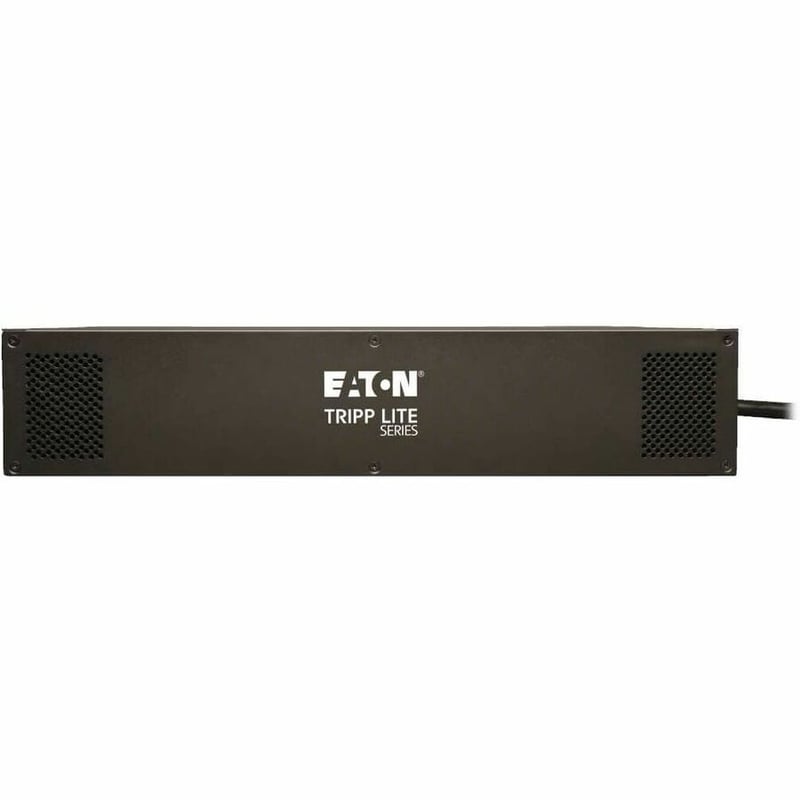

Tripp Lite by Eaton PDU 5.5kW Single-Phase Local Metered PDU - 16 C13 & 2 C19 Outlets (208/230V) L6-30P Input 1.8 m Cord 2U TAA
PRODUCT HIGHLIGHTS
- Product ConditionNew and Factory Fresh
- Limited Warranty2 Year
- Shipping Weight16 lbs.
- Metered
- NEMA L6-30P
- 16 x IEC 60320 C13, 2 x IEC 60320 C19
- 230 V AC
- 2U
- Horizontal
- Rack-mountable
- TAA Compliant
OVERVIEW
Tripp Lite by Eaton PDU 5.5kW Single-Phase Local Metered PDU - 16 C13 & 2 C19 Outlets (208/230V) L6-30P Input 1.8 m Cord 2U TAA

Single-Phase PDU Distributes and Monitors Network-Grade Power This metered PDU provides real-time monitoring of load levels via its built-in digital current metering. Ideal for network IT applications, small computer rooms and other equipment rack applications, the PDUMH30HV6 features 16 C13 and two C19 208/240V outlets in two separately breakered load banks, which distribute AC power to rack equipment. The banks can be individually monitored to ensure proper load balance and make any necessary upgrades before the PDU becomes overloaded. Plug-lock insert sleeves are included to prevent connected cables from becoming accidentally dislodged. Digital Load Meter Helps Prevent Potentially Expensive Overloads ...

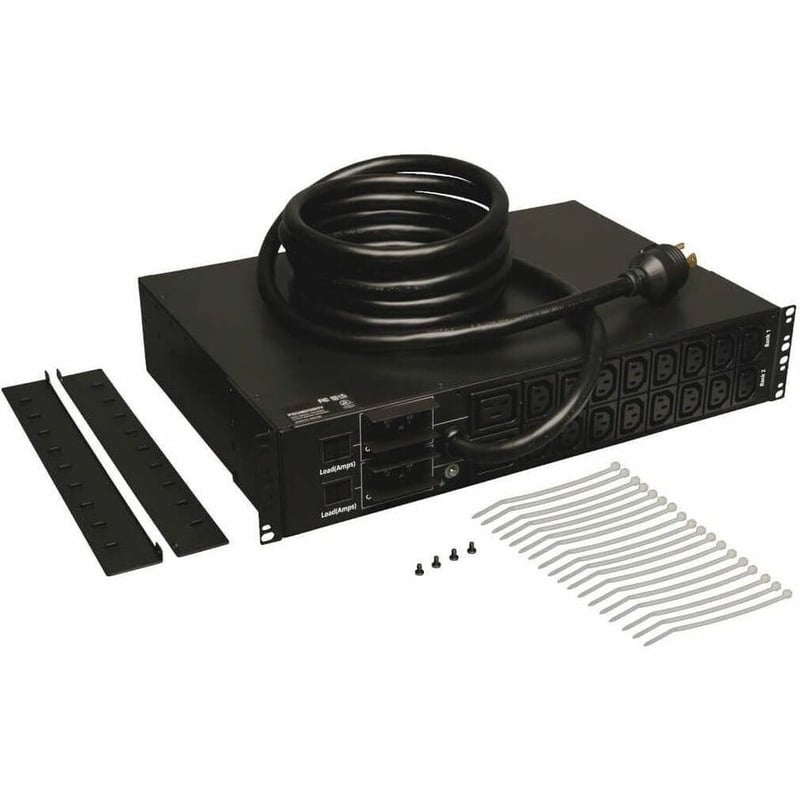

PACKAGE CONTENTS
- PDUMH30HV6 18-Outlets PDU
- 18 x Plug-Lock Insert Sleeves
- Rack-Mounting Hardware
- Owner's Manual
