PRODUCT HIGHLIGHTS
- Product ConditionNew and Factory Fresh
- Limited Warranty2 Year
- Shipping Weight2 lbs.
- Metered Auto Transfer Switch
- IEC 60320 C20
- 8 x IEC 60320 C13, 2 x IEC 60320 C19
- 230 V AC
- 1U
- Horizontal
- Rack-mountable
- TAA Compliant

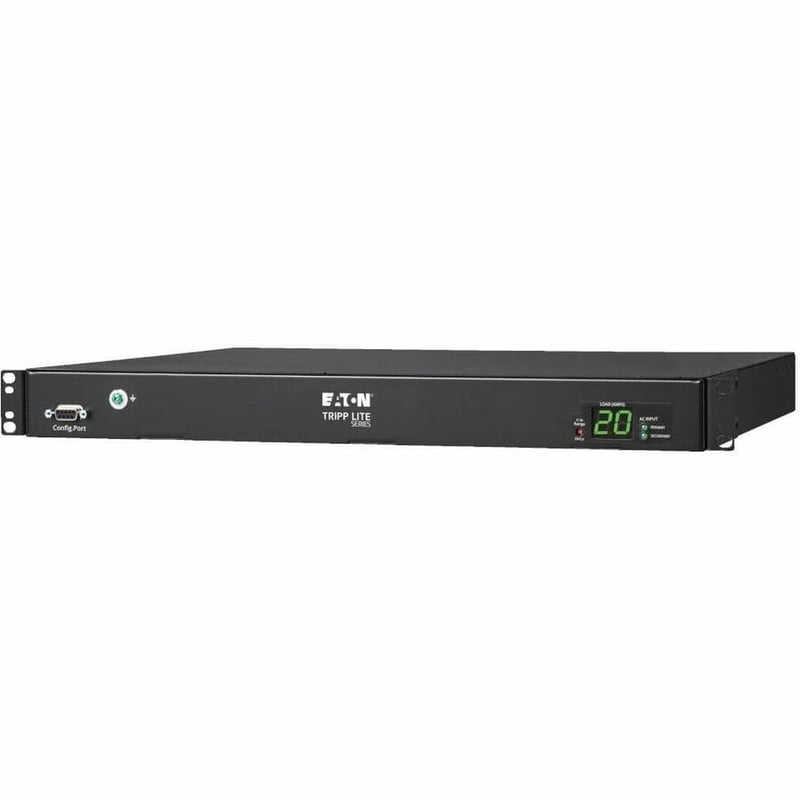

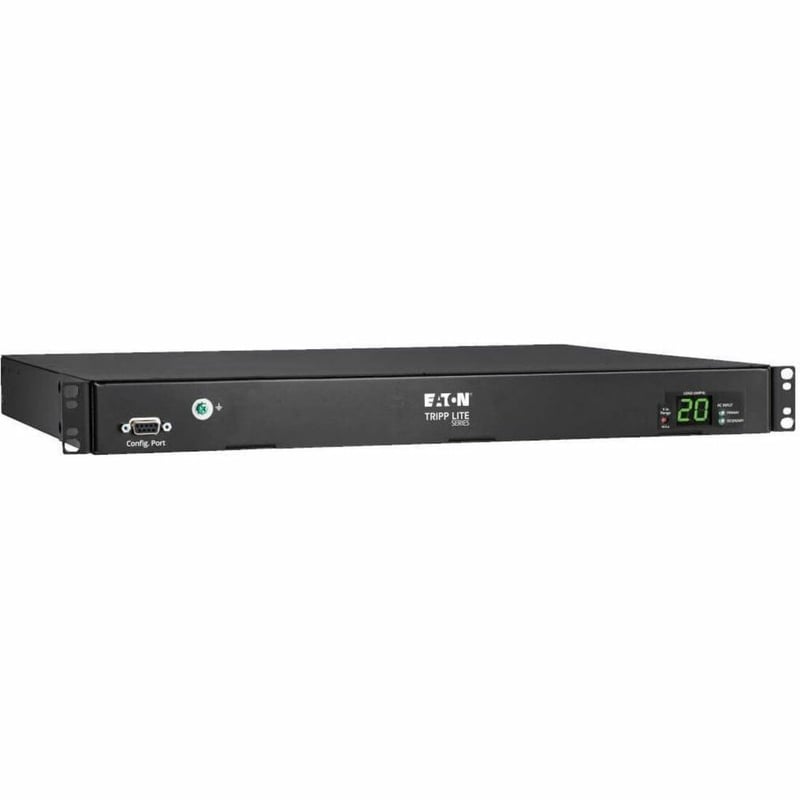

Tripp Lite by Eaton PDU 3.8kW 200-240V Single-Phase ATS/Local Metered PDU - 8 C13 and 2 C19 Outlets Dual C20 Inlets 12 ft. Cords 1U TAA
PRODUCT HIGHLIGHTS
- Product ConditionNew and Factory Fresh
- Limited Warranty2 Year
- Shipping Weight2 lbs.
- Metered Auto Transfer Switch
- IEC 60320 C20
- 8 x IEC 60320 C13, 2 x IEC 60320 C19
- 230 V AC
- 1U
- Horizontal
- Rack-mountable
- TAA Compliant
OVERVIEW
Tripp Lite by Eaton PDU 3.8kW 200-240V Single-Phase ATS/Local Metered PDU - 8 C13 and 2 C19 Outlets Dual C20 Inlets 12 ft. Cords 1U TAA

Single-Phase 20A ATS PDU Distributes and Monitors Network-Grade Power in Real TimeThis metered PDU provides real-time local reporting of the total load level via its built-in digital current meter. Ideal for network IT applications, small computer rooms and other equipment rack applications, the PDUMH20HVATS features eight C13 and two C19 200-240V outlets for connecting equipment. Outlets are factory-programmed for sequential turn-on at 250-millisecond intervals when the PDU is first energized to prevent inrush-related equipment interaction at startup. Switches from Primary to Secondary Power Source in MillisecondsDual 12-foot (3.7-meter) power cables with C20 inputs connect to separate primary and secondary mains ...
PACKAGE CONTENTS
- PDUMH20HVATS 10-Outlets PDU
- 2 x Detachable C19 to C20 Input Cords, 12 ft. (3.7 m)
- 10 x Plug-lock Insert Sleeves
- Rack-mounting Hardware
- Owner's Manual
