Tripp Lite by Eaton PDU 2.4kW Single-Phase Local Metered Automatic Transfer Switch PDU Two 200-240V C14 Inlets 10 C13 Outputs 1U TAA
IN STOCK
PRODUCT HIGHLIGHTS
- Product ConditionNew and Factory Fresh
- Limited Warranty2 Year
- Shipping Weight17 lbs.
- IEC 60320 C14
- 10 x IEC 60320 C13
- 200 V AC, 208 V AC, 220 V AC, 230 V AC, 240 V AC
- 2.40 kVA
- 1U/2U
- Horizontal Rackmount
OVERVIEW

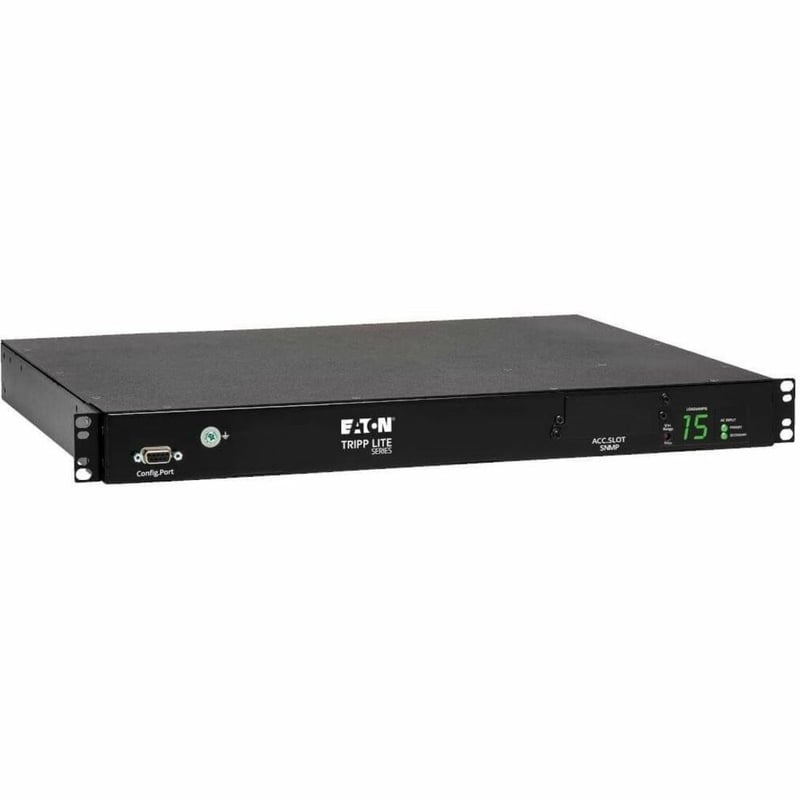

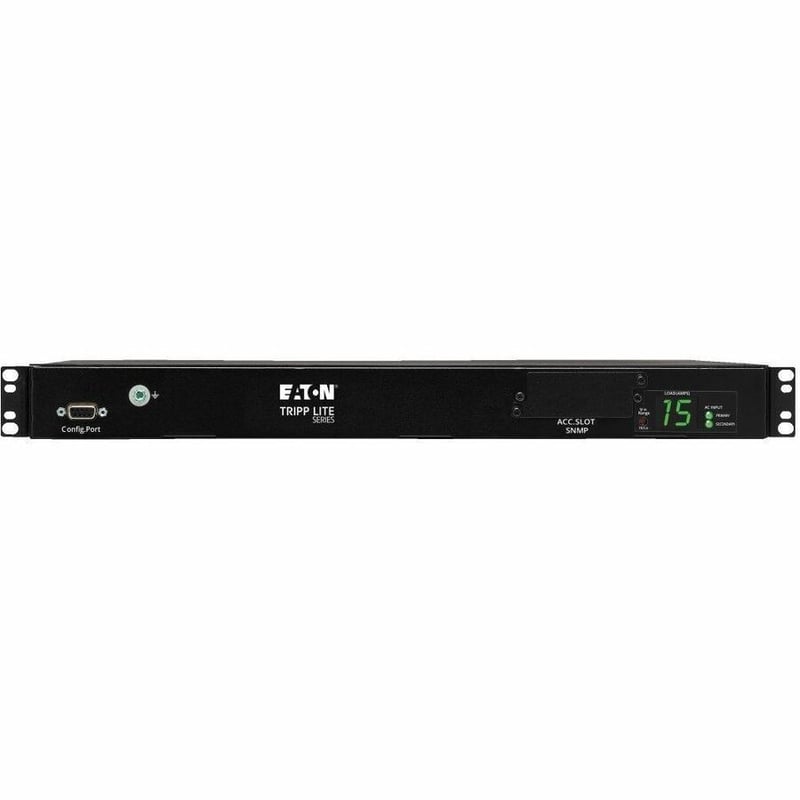

Tripp Lite by Eaton PDU 2.4kW Single-Phase Local Metered Automatic Transfer Switch PDU Two 200-240V C14 Inlets 10 C13 Outputs 1U TAA
The PDUMH15HVAT 2-2.4kW Single-Phase 200-240V ATS/Metered PDU enables redundant power for network devices with non-redundant power supply configurations. Ideal for data centers and server rooms, it mounts in 1U of space in EIA-standard 19-inch racks and features 10 C13 outlets.Dual 3.6-meter input cords with IEC-320 C14 plugs connect to separate primary and secondary single-phase power sources in a nominal voltage range from 200-240V. Plug lock inserts prevent cords from accidental disconnection. The PDUMH15HVAT constantly evaluates the power quality of both input sources. Dynamic solid-state (TRIAC) automatic transfer switching allows the PDU to switch to the secondary source within 2-5 milliseconds ...

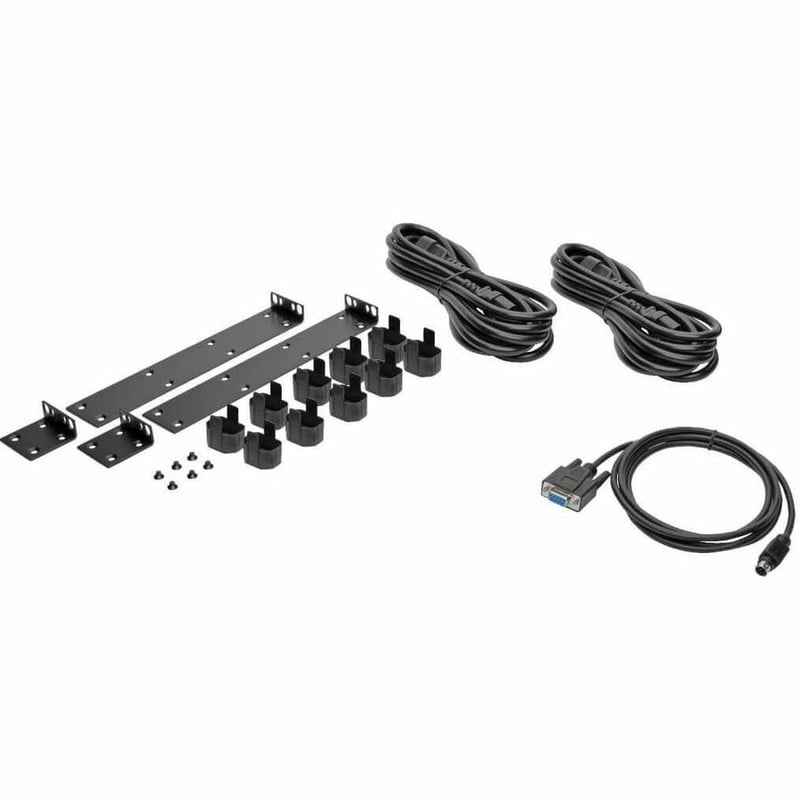

PACKAGE CONTENTS
- PDUMH15HVAT 10-Outlet PDU
- 10 x C14 plug lock inserts

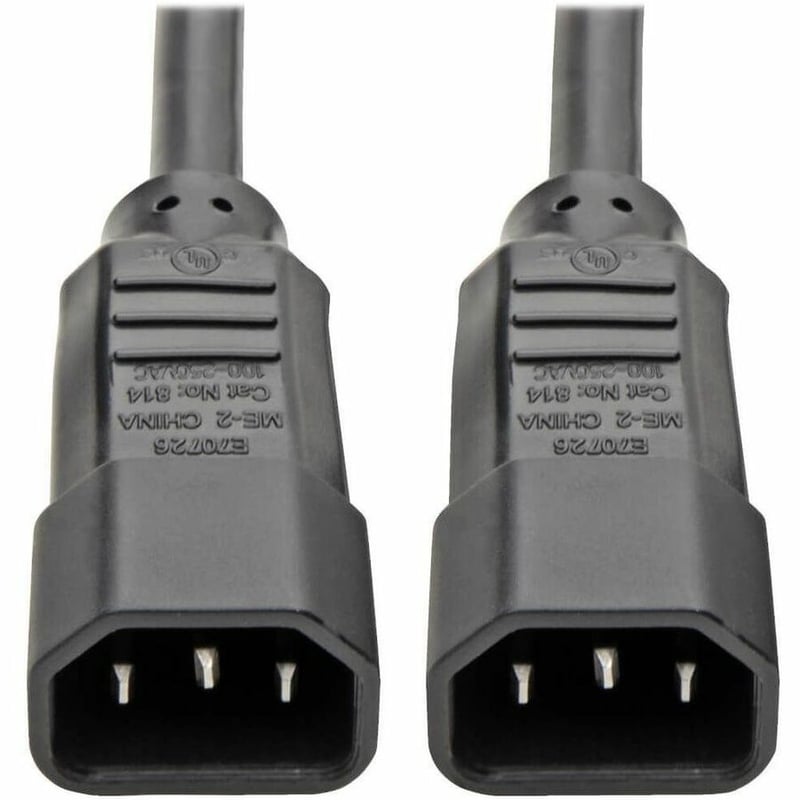

- 2 x C13 to C14 power cords, 3.6 m (11.8 ft.)
- 2 x Mounting brackets, horizontal
- 2 x Mounting brackets, vertical
- 6 x Screws
- Owner's manual
