PRODUCT HIGHLIGHTS
- Product ConditionNew and Factory Fresh
- Limited Warranty2 Year
- Shipping Weight18 lbs.
- Monitored
- NEMA L21-30P
- 6 x IEC 60320 C19, 36 x IEC 60320 C13, 3 x NEMA 5-15/20R
- 230 V AC
- Network (RJ-45)
- 0U
- Vertical
- MountRack-mountable
- TAA Compliant
Tripp Lite by Eaton PDU 8.6kW 208/120V 3PH Monitored PDU - LX Interface Gigabit 45 Outlets L21-30P Input LCD 1.8 m Cord 0U 1.8 m Height TAA
PRODUCT HIGHLIGHTS
- Product ConditionNew and Factory Fresh
- Limited Warranty2 Year
- Shipping Weight18 lbs.
- Monitored
- NEMA L21-30P
- 6 x IEC 60320 C19, 36 x IEC 60320 C13, 3 x NEMA 5-15/20R
- 230 V AC
- Network (RJ-45)
- 0U
- Vertical
- MountRack-mountable
- TAA Compliant
OVERVIEW
Tripp Lite by Eaton PDU 8.6kW 208/120V 3PH Monitored PDU - LX Interface Gigabit 45 Outlets L21-30P Input LCD 1.8 m Cord 0U 1.8 m Height TAA

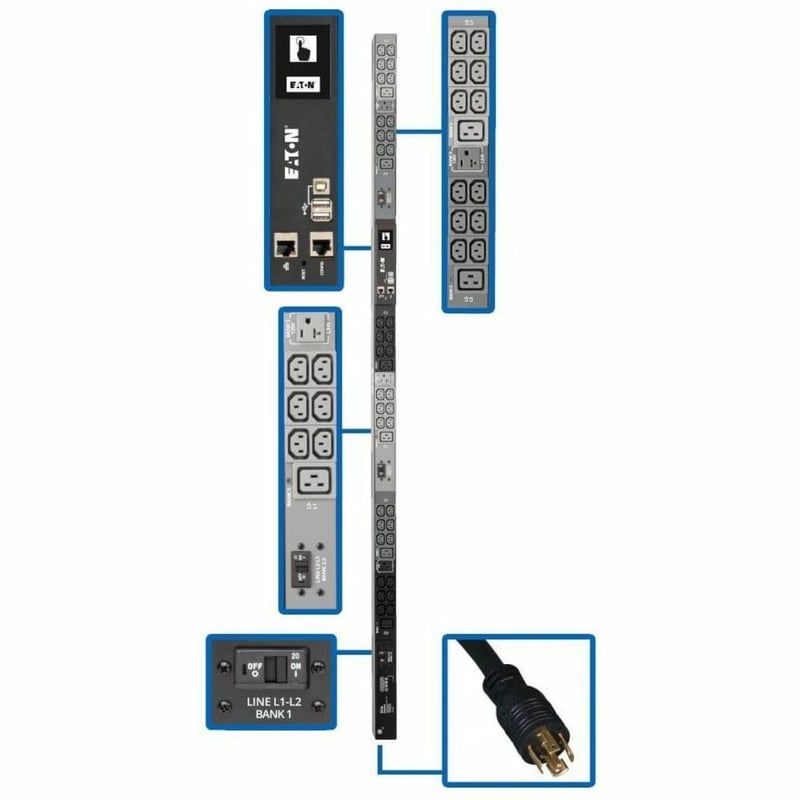

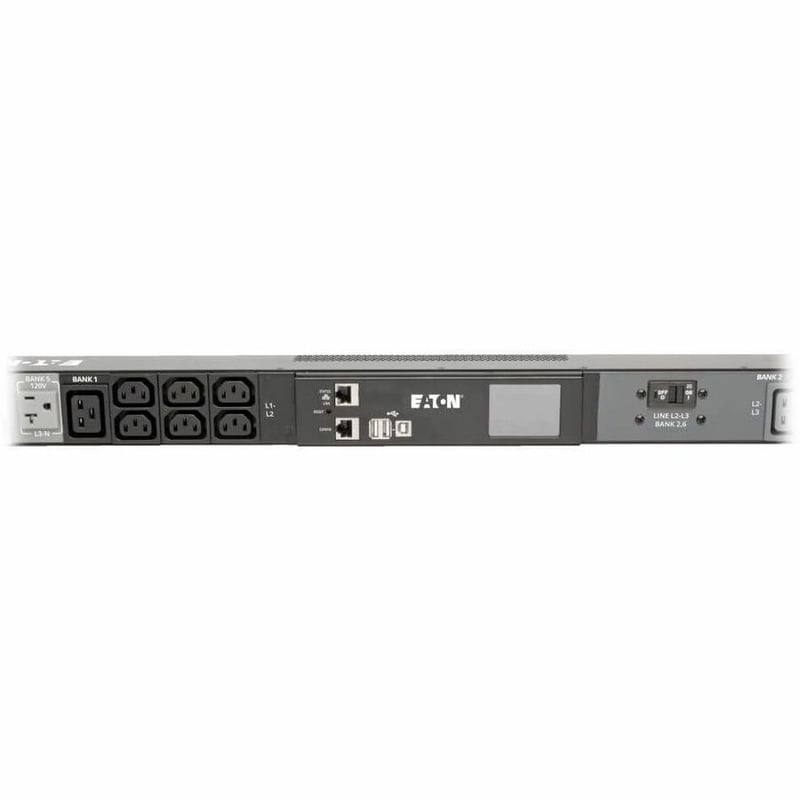

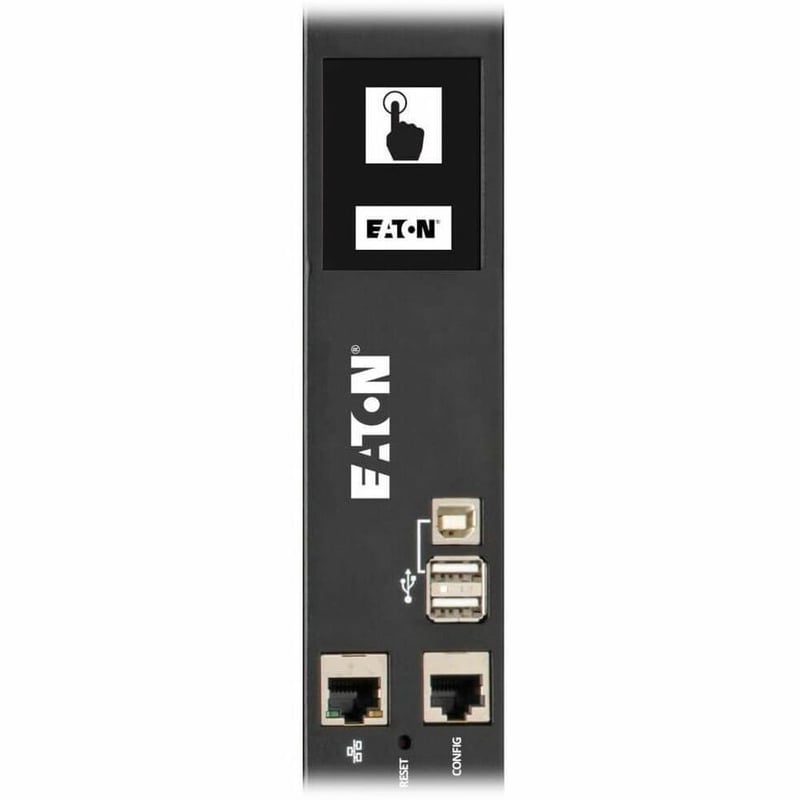

The PDU3EVN6L2130 8.6kW 3-Phase Monitored PDU provides real-time remote monitoring of voltage, frequency and load levels via built-in network connection. Recommended for IT and industrial applications, it features 45 outlets-36 C13 (208V), 6 C19 (208V) and 3 NEMA 5-15/20R (120V)-with included plug-lock insert sleeves to prevent cables from becoming accidentally disconnected. A six-foot cord with NEMA L21-30P input plug connects the 3-phase PDU to a compatible AC power source, generator or protected UPS.The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It ...
PACKAGE CONTENTS
- PDU3EVN6L2130 45-Outlet PDU
- Configuration Cable
- 42 x Plug-lock Insert Sleeves
- Rack-mounting Hardware
- Mounting Bracket Accessory
- Owner's Manual
