PRODUCT HIGHLIGHTS
- Product ConditionNew and Factory Fresh
- Limited Warranty2 Year
- Shipping Weight14 lbs.
- 300 VA
- 120 V AC, 230 V AC Input
- 115 V AC, 230 V AC Output

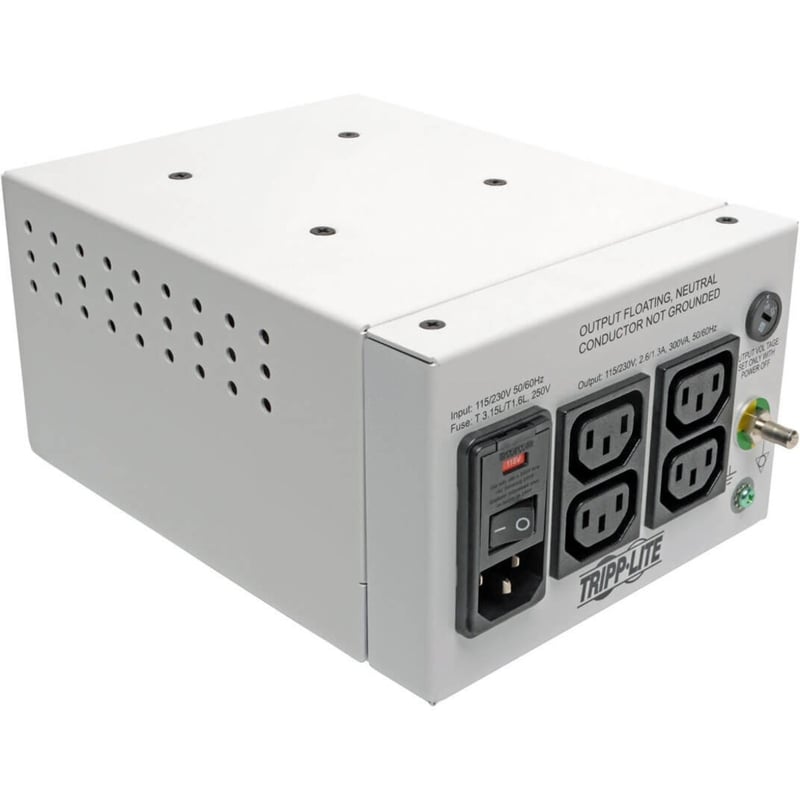

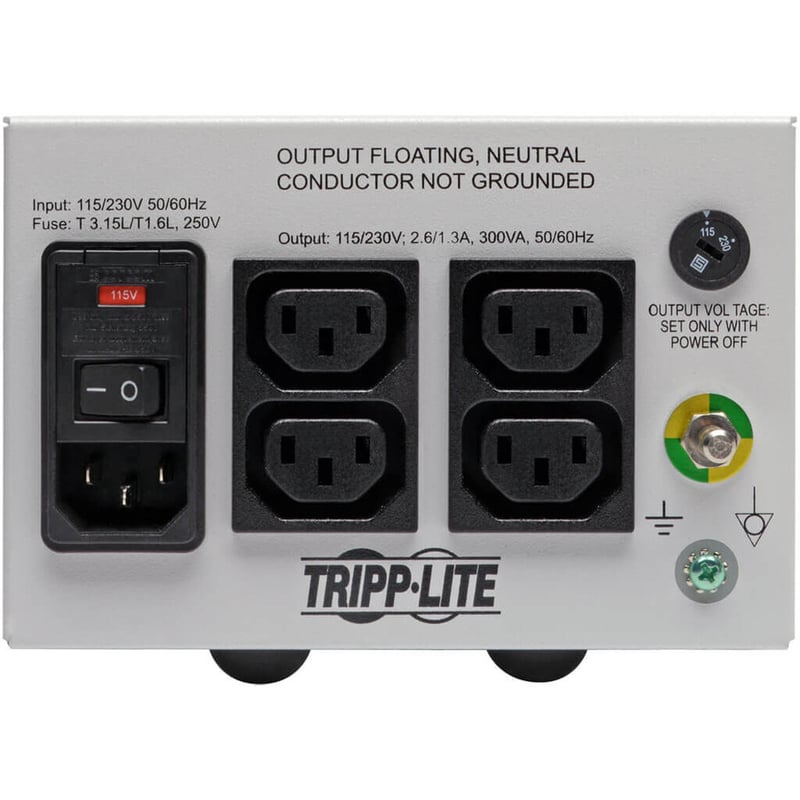

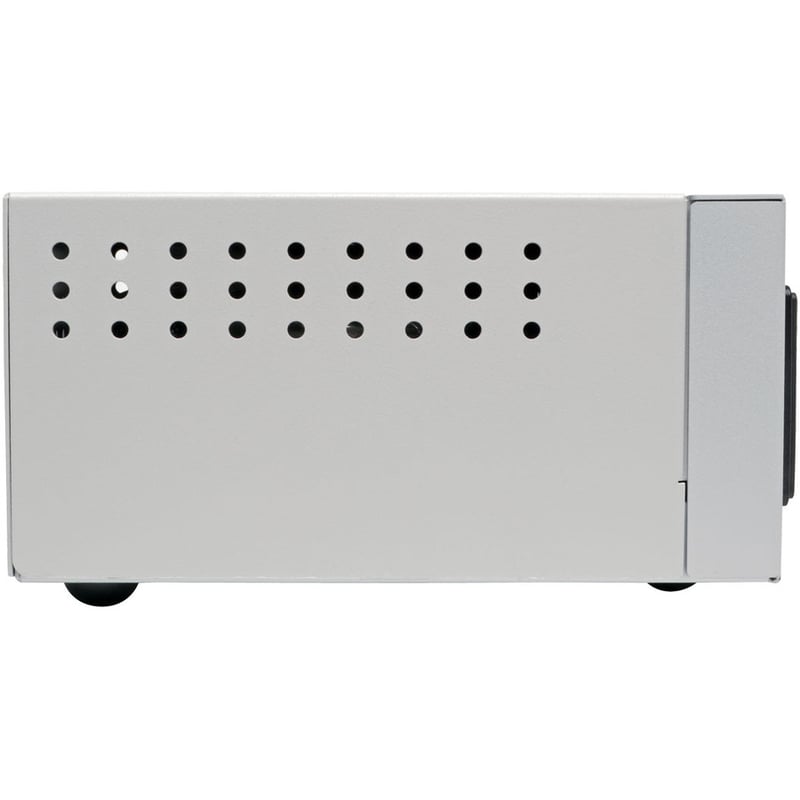

Tripp Lite by Eaton Isolator Series Dual-Voltage 115/230V 300W 60601-1 Medical-Grade Isolation Transformer C14 Inlet 4 C13 Outlets
PRODUCT HIGHLIGHTS
- Product ConditionNew and Factory Fresh
- Limited Warranty2 Year
- Shipping Weight14 lbs.
- 300 VA
- 120 V AC, 230 V AC Input
- 115 V AC, 230 V AC Output
OVERVIEW
Tripp Lite by Eaton Isolator Series Dual-Voltage 115/230V 300W 60601-1 Medical-Grade Isolation Transformer C14 Inlet 4 C13 Outlets

The IS300HGDV Isolator® Series Dual-Voltage 115/230V 300W 50/60Hz Medical-Grade™ Transformer with full CAN/ES/IEC/EN 60601-1 listing is ideal for protecting sensitive electronic equipment in patient-care vicinities. It can be configured for either step-up voltage, step-down voltage or pass-through voltage operation. Along with line isolation and continuous EMI/RFI line noise filtering, its surge protection rating of 240 joules suppresses excess voltage to prevent it from damaging connected equipment.An internal low-impedance isolation transformer component offers 100% isolation from the input mains AC line. Faraday shield reduces the cumulative leakage current of the IS300HGDV and connected equipment to levels less than 50 microamps, while ...
PACKAGE CONTENTS
- Isolator IS300HGDV Isolation Transformer
- 2 x Fuse Sets (115V and 230V Operation)
- Input/Output Cable Selector Data Sheet
- Owner's Manual
