PRODUCT HIGHLIGHTS
- Product ConditionNew and Factory Fresh
- Limited Warranty1 Year
- Shipping Weight779 lbs.
- 65000 mAh
- 120 V DC
- Lead Acid
- Valve-regulated
Eaton Tripp Lite Series ±120VDC External Battery Cabinet for Select 10-100K S3M-Series 3-Phase UPS - Requires 40x 65Ah Batteries (Not Included)
PRODUCT HIGHLIGHTS
- Product ConditionNew and Factory Fresh
- Limited Warranty1 Year
- Shipping Weight779 lbs.
- 65000 mAh
- 120 V DC
- Lead Acid
- Valve-regulated
OVERVIEW

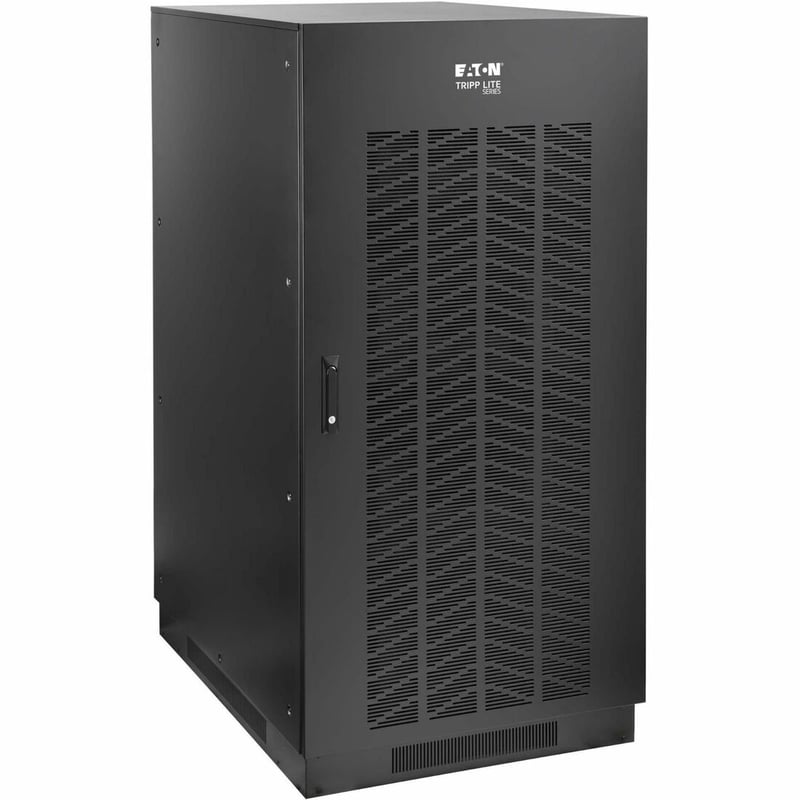

Eaton Tripp Lite Series ±120VDC External Battery Cabinet for Select 10-100K S3M-Series 3-Phase UPS - Requires 40x 65Ah Batteries (Not Included)

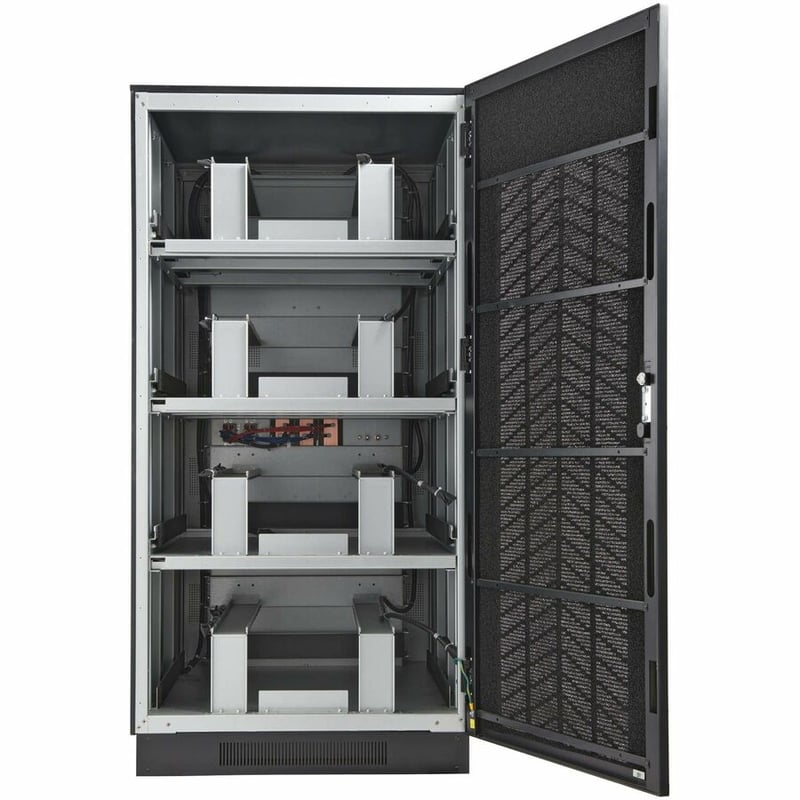

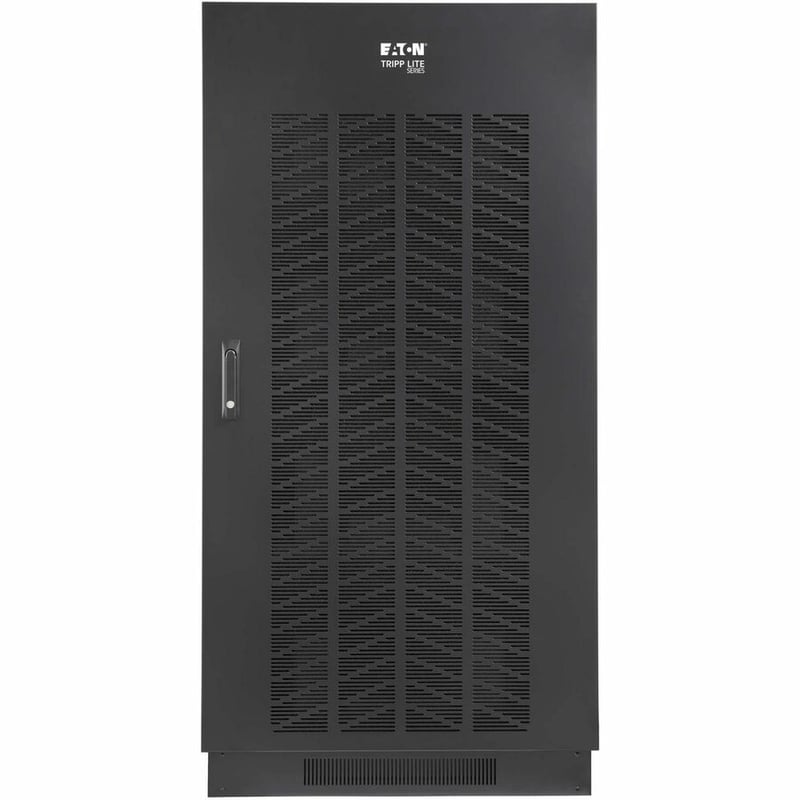

±120VDC Battery Cabinet Gives Your Compatible 3-Phase UPS Extended RuntimeThis external battery pack connects to a compatible SmartOnline® S3M-Series 3-phase UPS system to provide long-lasting battery backup for data centers, telecommunications, networks, industrial facilities, security, emergency systems and other mission-critical applications that require high capacity, high availability and extended runtime. In addition to battery backup and extended runtime, the BP240V65L-NIB can also be daisy-chained to other external battery cabinets for even longer extended-run operation. Rugged Steel Construction Designed to Last in Demanding IT ApplicationsThe cabinet is made from heavy-gauge steel with a baked powder-coated finish that helps prevent chipping and ...
PACKAGE CONTENTS
- SmartOnline S3M BP240V65L-NIB Battery Cabinet
- 2 x External Battery Cables, 3 m
- 16 x Internal Battery Cables
- 28 x Copper Jumper Bars
- 16 x Battery Insulators
- 4 x Cabinet Bottom Side Metal Skirts
- Owner's Manual
