PRODUCT HIGHLIGHTS
- Product ConditionNew and Factory Fresh
- Limited Warranty1 Year
- Shipping Weight1 lbs.
- 1 x HDMI Port(s)
- 1 x RJ-45 Port(s)
- TAA Compliant
Eaton Tripp Lite Series HDMI over Cat5/6 Passive Extender, Wall Plate Remote Receiver for Video/Audio, Up to 50 ft. (15 m), TAA
PRODUCT HIGHLIGHTS
- Product ConditionNew and Factory Fresh
- Limited Warranty1 Year
- Shipping Weight1 lbs.
- 1 x HDMI Port(s)
- 1 x RJ-45 Port(s)
- TAA Compliant
OVERVIEW

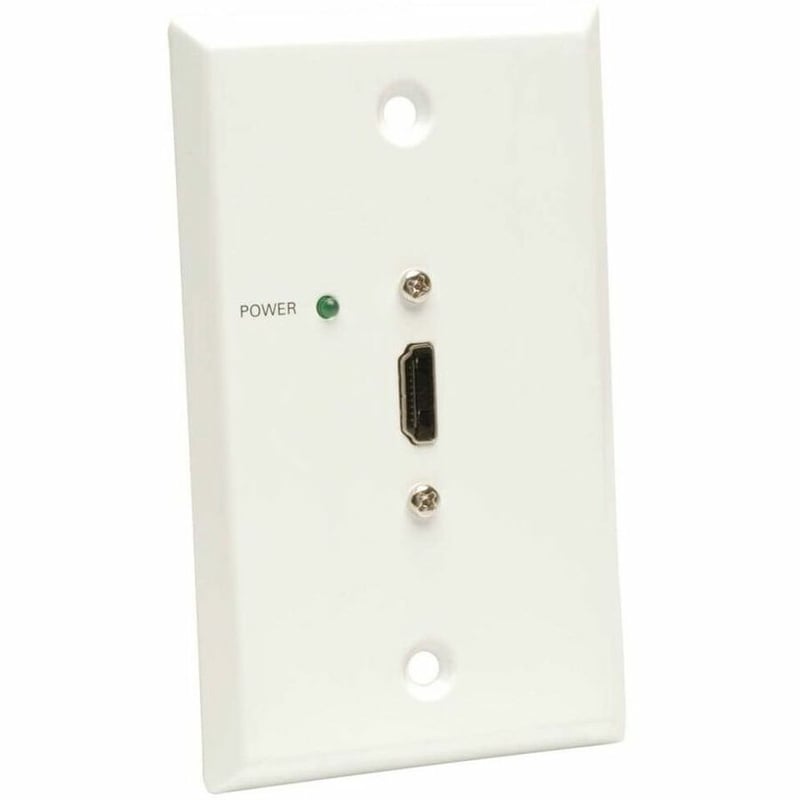

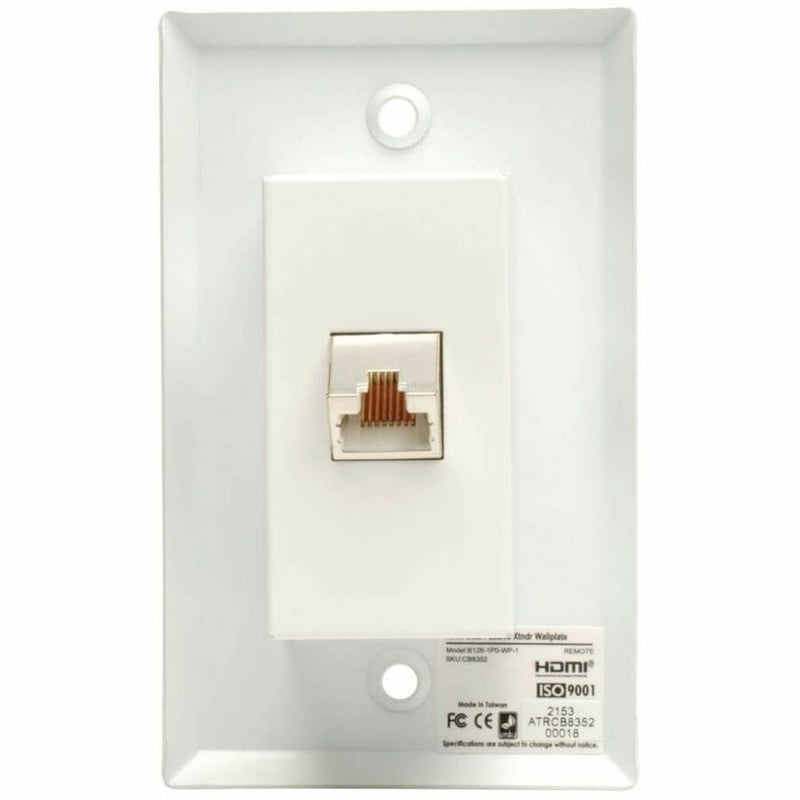

Eaton Tripp Lite Series HDMI over Cat5/6 Passive Extender, Wall Plate Remote Receiver for Video/Audio, Up to 50 ft. (15 m), TAA

The B126-1P0-WP-1 is a receiver wallplate that is used with the B126-002 and B126-004 transmitter units. It extends a 1080p (60Hz) signal to a monitor up to 50 ft. away using Cat5e/6 cable. To achieve maximum distance and resolution, use 24Awg Solid Wire Cat5e/6 cable. (Tripp Lite's N202-Series) It features RJ45 jacks for easy connection with patch cables; 110 punchdown not required. No external power required. Supports 24-bit True Color (8-bits per channel), HDCP, 3D, and both stereo audio and 7.1 channel surround sound audio (7.1 channel surround sound signal will be Multi-Channel or PCM). More from the Manufacturer
PACKAGE CONTENTS
- HDMI Over Cat5 Passive Extender Remote Wallplate
- Wallplate Mounting Hardware
- Owner's Manual
