PRODUCT HIGHLIGHTS
- Product ConditionNew and Factory Fresh
- Limited Warranty5 Year
- Shipping Weight16 lbs.
- 26 Ports
- Manageable
- Gigabit Ethernet
- 10/100/1000Base-T, 1000Base-X
- 4 Layer Supported
- Modular
- 2 SFP Slots
- 79 W Power Consumption
- Twisted Pair, Optical Fiber
- PoE Ports
- Rack-mountable
- 5 Year Limited Warranty
Lantronix SM24TBT2DPB-2XPS Ethernet Switch
PRODUCT HIGHLIGHTS
- Product ConditionNew and Factory Fresh
- Limited Warranty5 Year
- Shipping Weight16 lbs.
- 26 Ports
- Manageable
- Gigabit Ethernet
- 10/100/1000Base-T, 1000Base-X
- 4 Layer Supported
- Modular
- 2 SFP Slots
- 79 W Power Consumption
- Twisted Pair, Optical Fiber
- PoE Ports
- Rack-mountable
- 5 Year Limited Warranty
OVERVIEW

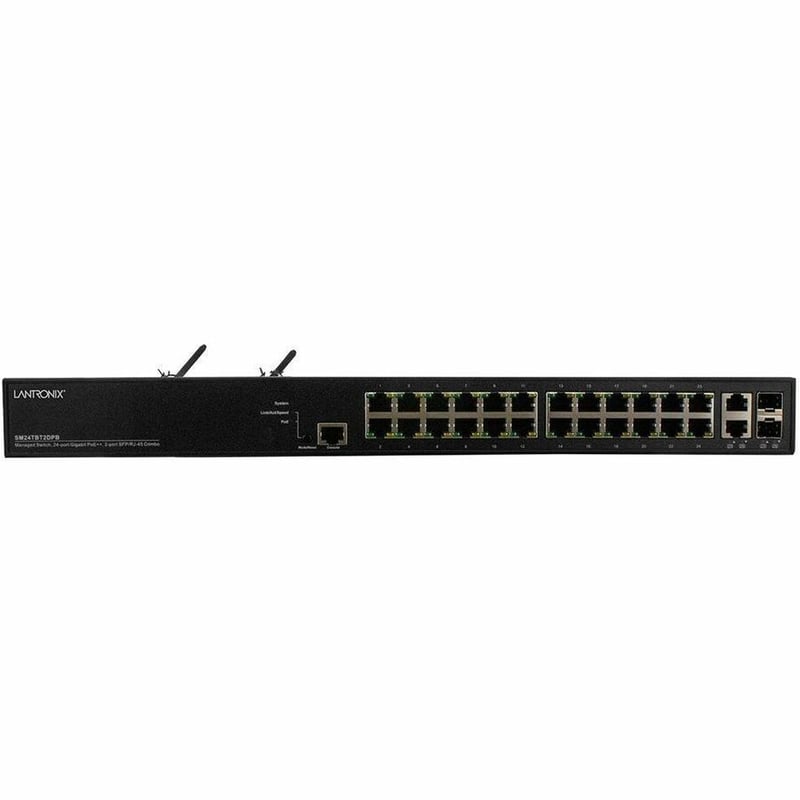

Lantronix SM24TBT2DPB-2XPS Ethernet Switch

(24) 10/100/1000Base-T Ports + (2) 100/1000Base-X SFP/RJ-45 Combo PortsThis switch is a high performance Layer 2 managed switch with 52 Gbps switching capacity. Itprovides (24) 10/100/1000Mbps copper ports with IEEE 802.3bt PoE++ capability and (2) additional100/1000Mbps dual speed SFP/RJ-45 combo ports. The SM24TBT2DPB complies with the latestIEEE 802.3bt PoE++ standard and supplies up to 90 Watts per port. It can provide full PoE++ outputon all 24 ports when equipped with the dual hot-swappable PS-ACDC-1200 power supplies. TheSM24TBT2DPB can be powered by low-line and high-line AC or DC power and Digital Electricity*,making it ideal for use in a wide variety of building applications.
PACKAGE CONTENTS
- SM24TBT2DPB-2XPS Ethernet Switch
- 19\" Rack Mount Bracket
- 2 x PS-ACDC-1200 Secondary AC & DC Modular Power Supply
- 2 x Saf-D Adapter Cable
- 2 x Power Cord
