PRODUCT HIGHLIGHTS
- Product ConditionNew and Factory Fresh
- Shipping Weight3 lbs.
- 5 Ports
- Gigabit Ethernet
- 10/100/1000Base-T, 100/1000Base-X
- 2 Layer Supported
- Modular
- 5 W Power Consumption
- 360 W PoE Budget
- Optical Fiber, Twisted Pair
- PoE Ports
- DIN Rail Mountable, Wall Mountable
HARDENED UNMANAGED SWITCH, 4-PORT GE POE++, (1) 10/100/1000BAST-T, 1 100/1000 SF
PRODUCT HIGHLIGHTS
- Product ConditionNew and Factory Fresh
- Shipping Weight3 lbs.
- 5 Ports
- Gigabit Ethernet
- 10/100/1000Base-T, 100/1000Base-X
- 2 Layer Supported
- Modular
- 5 W Power Consumption
- 360 W PoE Budget
- Optical Fiber, Twisted Pair
- PoE Ports
- DIN Rail Mountable, Wall Mountable
OVERVIEW

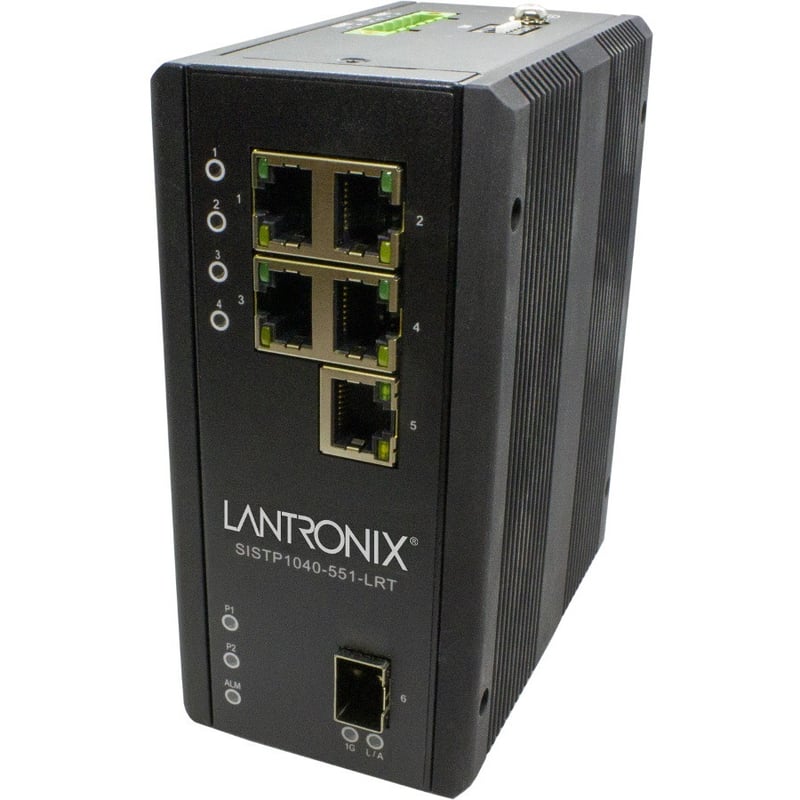

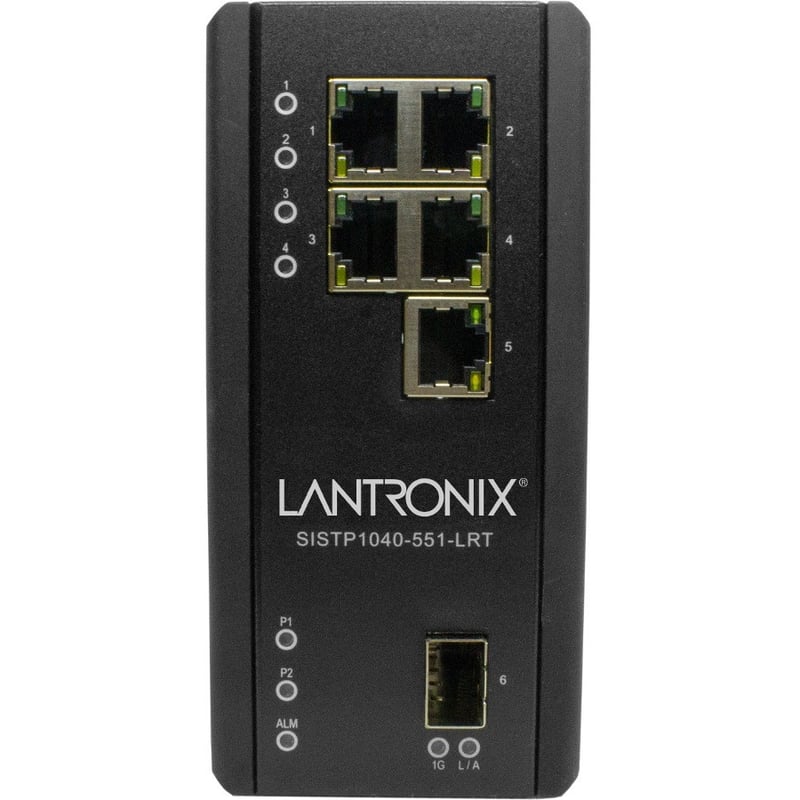

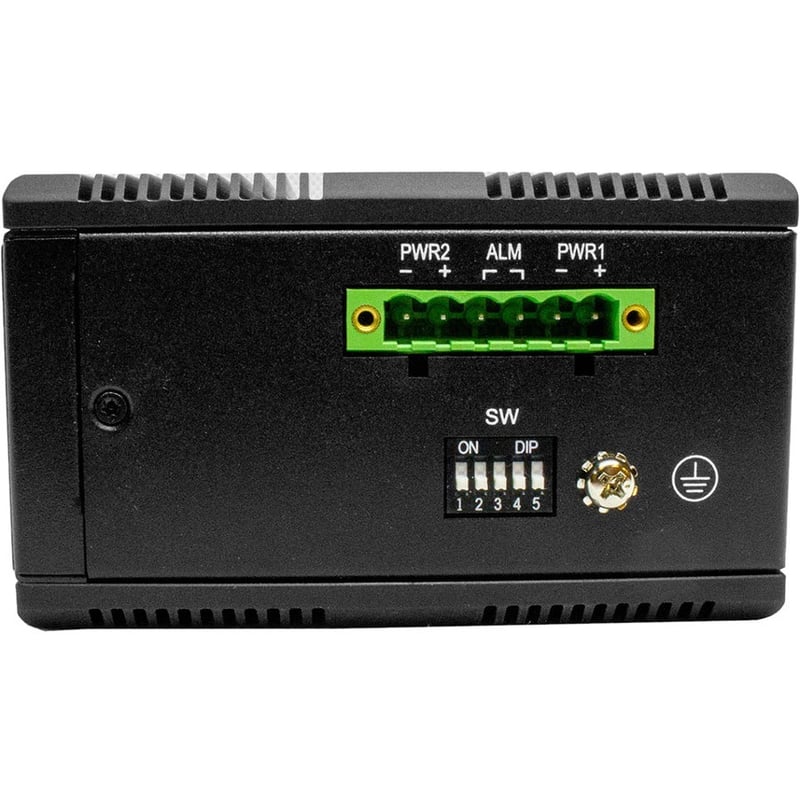

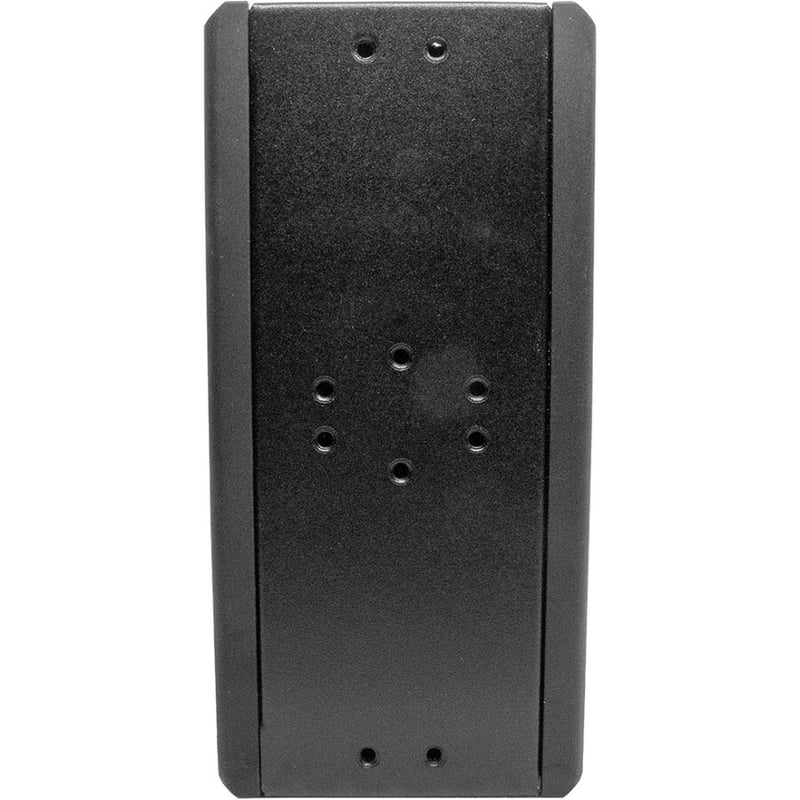

HARDENED UNMANAGED SWITCH, 4-PORT GE POE++, (1) 10/100/1000BAST-T, 1 100/1000 SF

This switch is an unmanaged full Gigabit Ethernet hardened PoE++ switch that complies with IEEE 802.3bt, IEEE 802.3at and IEEE 802.3af. The switch has (4) 10/100/1000Base-T PoE++ ports, (1) 10/100/1000Base-T port with (1) 100/1000 dual speed SFP slot. It can deliver up to 90 Watts on each PoE++ port simultaneously and also supports Power over HDBaseT (PoH) mode (95 Watts) when enabled by DIP switch. The SISTP1040-551-LRT can be used to power PoE lighting, high powered IP cameras and digital signage. It has redundant input power connections to ensure safe reliable operation in temperatures between -40°C and +75°C.
PACKAGE CONTENTS
No package contents information available.
