PRODUCT HIGHLIGHTS
- Product ConditionNew and Factory Fresh
- Shipping Weight1 lbs.
- 1 Processor Support
- 32 GB RAM Support
- DDR4 SDRAM
- 10 Gigabit Ethernet
- 1 x SFF Bay(s)
Supermicro MicroBlade MBI-6219G-T8HX Blade Server - 1 Xeon E3-1585 v5 - Serial ATA/600 Controller
PRODUCT HIGHLIGHTS
- Product ConditionNew and Factory Fresh
- Shipping Weight1 lbs.
- 1 Processor Support
- 32 GB RAM Support
- DDR4 SDRAM
- 10 Gigabit Ethernet
- 1 x SFF Bay(s)
OVERVIEW
Supermicro MicroBlade MBI-6219G-T8HX Blade Server - 1 Xeon E3-1585 v5 - Serial ATA/600 Controller

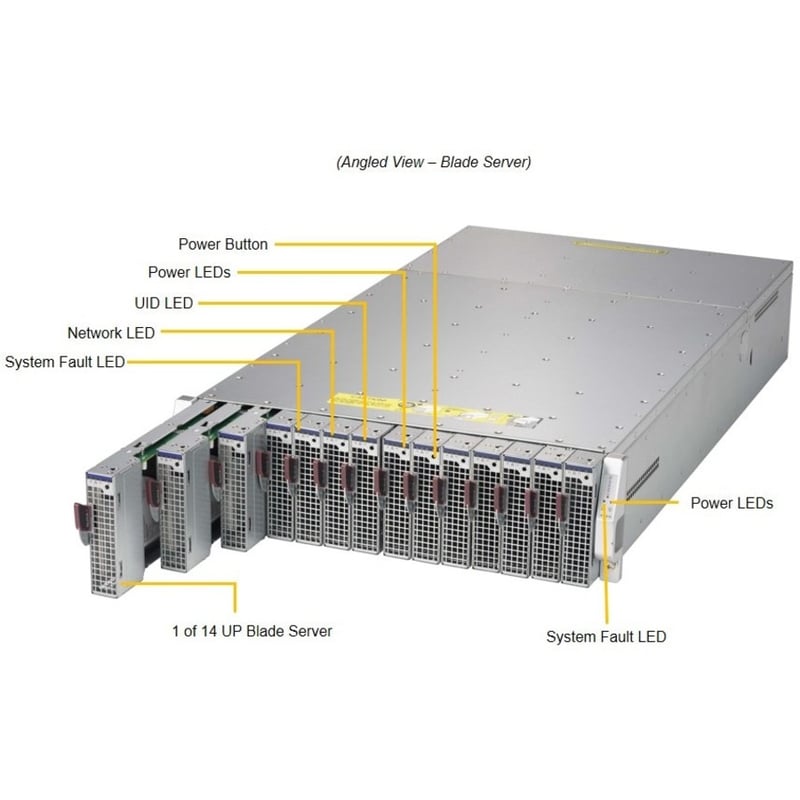

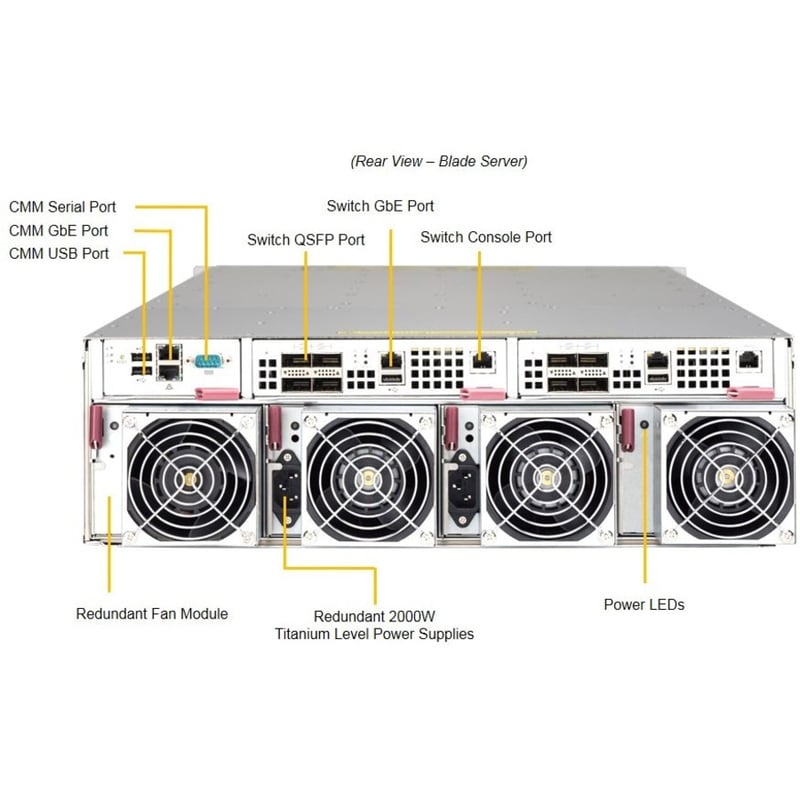

The Supermicro MicroBlade microserver represents an entirely new type of computing platform. It is a powerful and flexible extreme-density 6U/3U all-in-one total system that features 28/14 hot-swappable MicroBlade Servers supporting 28/14 Newest Dual-Node Xeon UP systems with Intel E3-1200 v5 family configurations with up to 2 SSDs/1 HDD per Node. The 6U/3U MicroBlade enclosure can incorporate up to 2 Chassis Management Modules, and up to 2 Switch Modules for efficient, high-bandwidth communications. It can incorporate up to 8 redundant (N+1 or N+N) 1600/2000W High-Efficiency (95%/96%) power supplies with cooling fans. This innovative new generation architecture includes microserver, networking, storage, and unified remote management for cloud computing, Video Streaming, Content Delivery, Social Networking, Desktop Virtualization and Remote Workstation applications.
PACKAGE CONTENTS
- MicroBlade MBI-6219G-T8HX
- 1x MicroBlade Board

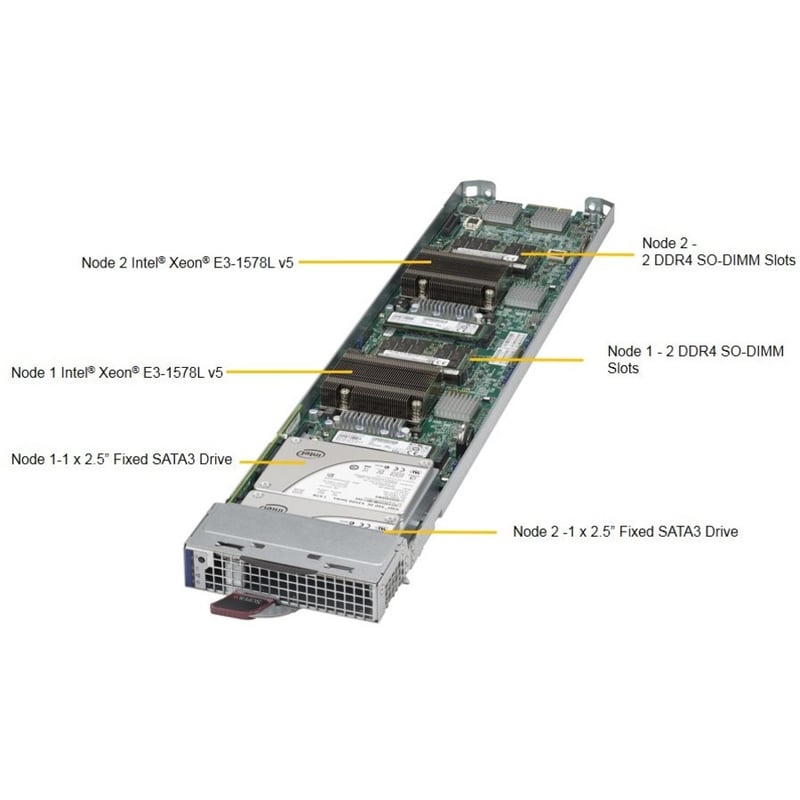

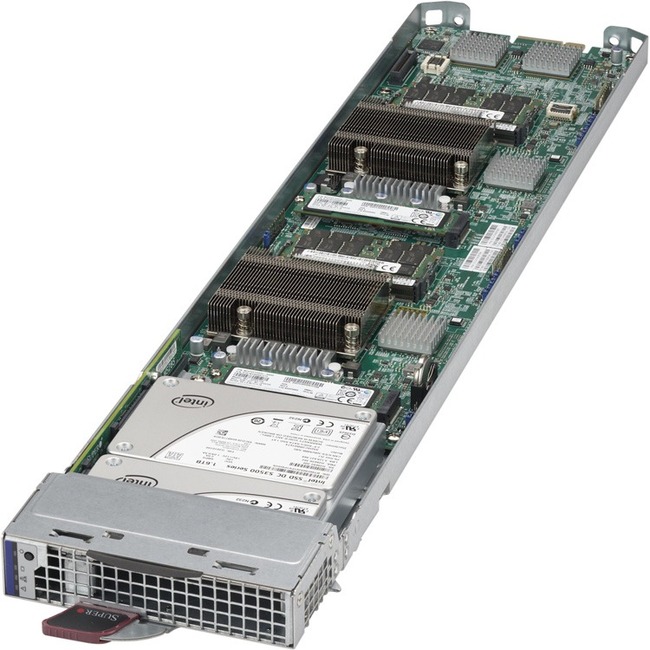

- 1 x M628 MicroBlade Skylake UP transcoding (complete assembly)
- 2 x M628 Sled AOM-BPN Bracket
- 1 x M628 Sled Node Cover with asset tag
- 1 x M628 Sled Front Window with asset tag opening
- 1 x M628 MicroBlade Skylake UP transcoding Sled Base
- 1 x AOM-BPN-MS28HS-P
