PRODUCT HIGHLIGHTS
- Product ConditionNew and Factory Fresh
- Limited Warranty2 Year
- Shipping Weight1 lbs.
- SATA III 6Gbps PCIe 3.0 x4 card
- SATA expansion adapter card
- 6-Port SATA to PCIe Card w/ASM1166 controller for 16Gbps combined max
- PCI Express 3.0/SATA 3.2/AHCI 1.4
- ATA/ATAPI for HDD/SSD/ODD support
- Windows/macOS/Linux
- Full/low-profile

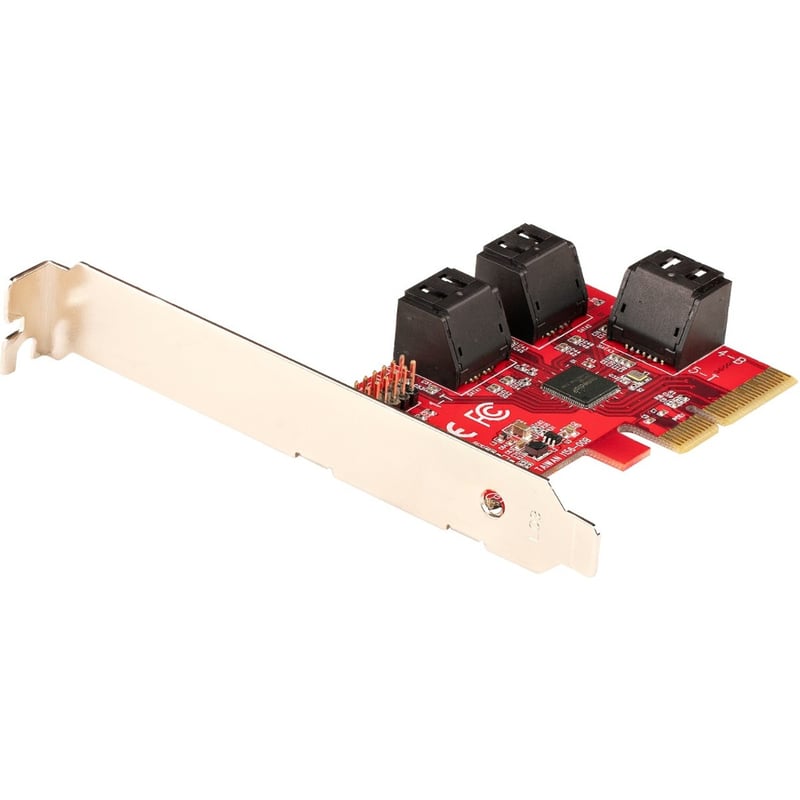

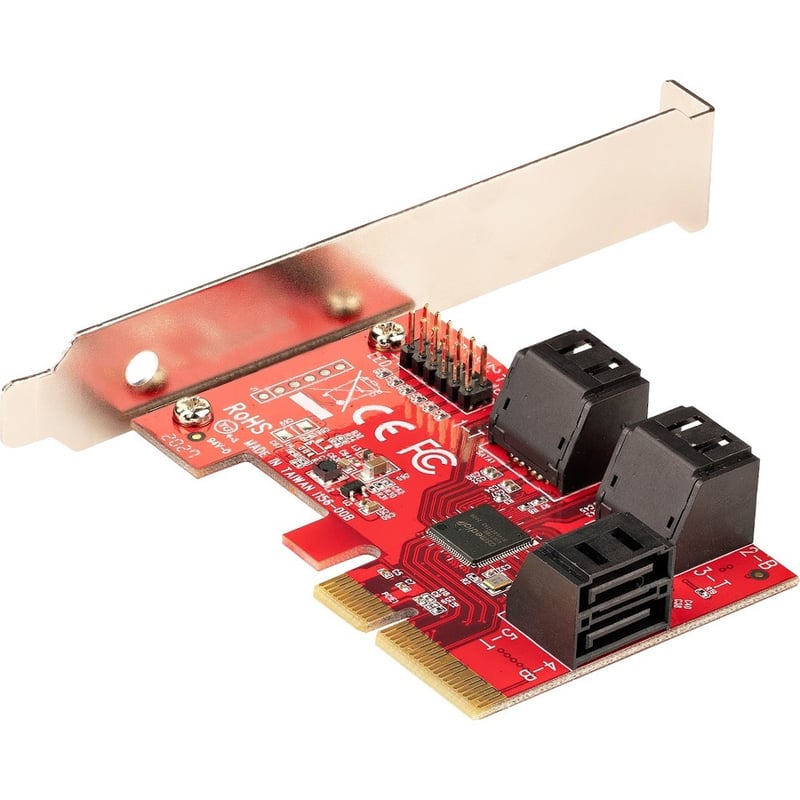

StarTech.com SATA PCIe Card, 6 Port PCIe SATA Expansion Card, 6Gbps SATA Adapter, Stacked SATA Connectors, PCI Express to SATA Converter
PRODUCT HIGHLIGHTS
- Product ConditionNew and Factory Fresh
- Limited Warranty2 Year
- Shipping Weight1 lbs.
- SATA III 6Gbps PCIe 3.0 x4 card
- SATA expansion adapter card
- 6-Port SATA to PCIe Card w/ASM1166 controller for 16Gbps combined max
- PCI Express 3.0/SATA 3.2/AHCI 1.4
- ATA/ATAPI for HDD/SSD/ODD support
- Windows/macOS/Linux
- Full/low-profile
OVERVIEW
StarTech.com SATA PCIe Card, 6 Port PCIe SATA Expansion Card, 6Gbps SATA Adapter, Stacked SATA Connectors, PCI Express to SATA Converter

This 6-port SATA III (6Gbps) controller enables you to add six SATA 6Gbps hard drives (HDDs) or solid State Drives (SSDs) to your computer system or server via an available PCIe x4 card slot. The card supports SATA III and PCI-Express 3.0 Specifications. ASM1166 to Deliver 6-Port SATA 6Gbps Performance Featuring the ASM1166 controller, this SATA card enables the connection of six high-performance SATA 6Gbps drives with a combined total throughput of up to 16Gbps. The SATA drives are connected via six individual SATA ports located on the card (SATA cables sold separately). Wide Compatibility The controller card is widely ...
PACKAGE CONTENTS

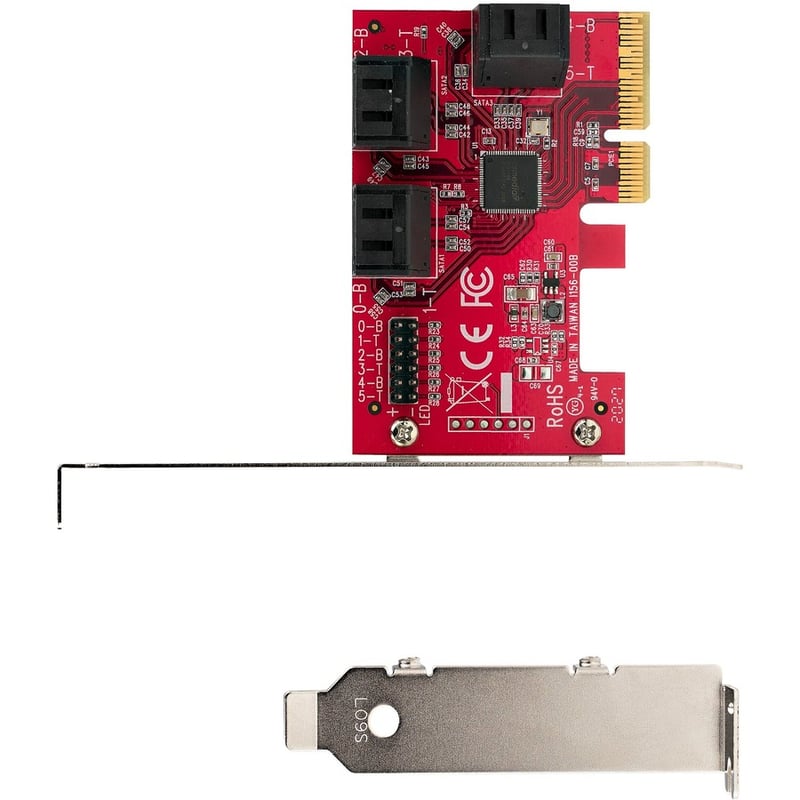

- PCIe SATA Card
- Full-Profile Bracket (Installed)
- Low-Profile Bracket
- Quick-Start Guide
