PRODUCT HIGHLIGHTS
- Product ConditionNew and Factory Fresh
- Limited Warranty3 Year
- Shipping Weight2 lbs.
- SDI Loop-out For a 3G/HD/SD-SDI Monitor / Display Connection
SIIG 3G-SDI to HDMI Converter with Scaler 1080p - TAA Compliant
PRODUCT HIGHLIGHTS
- Product ConditionNew and Factory Fresh
- Limited Warranty3 Year
- Shipping Weight2 lbs.
- SDI Loop-out For a 3G/HD/SD-SDI Monitor / Display Connection
OVERVIEW

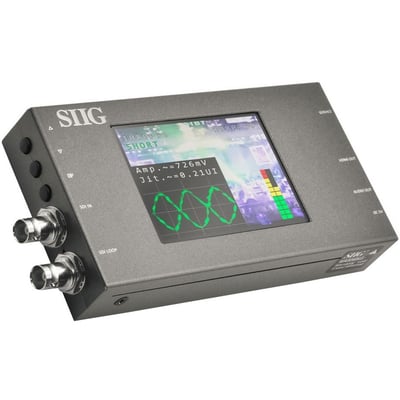

SIIG 3G-SDI to HDMI Converter with Scaler 1080p - TAA Compliant

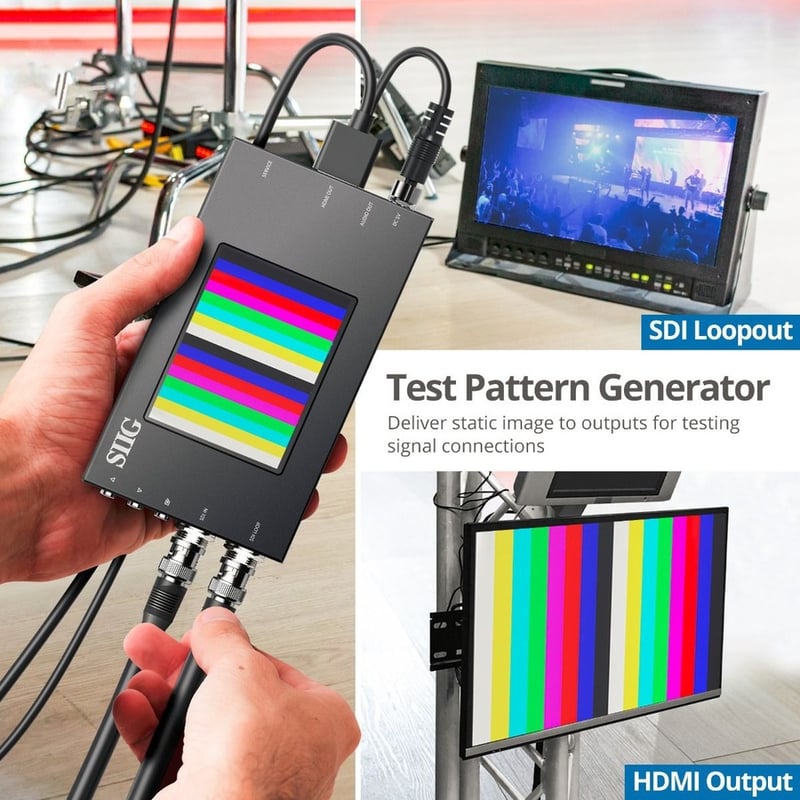

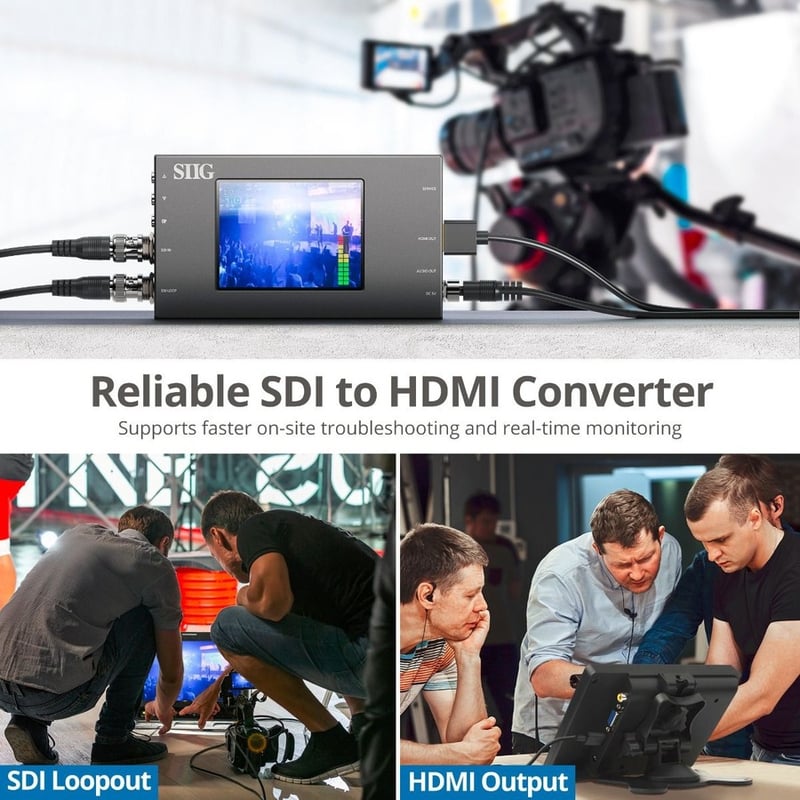

Converts 3G/HD/SD SDI signal to HDMI - 1080p@60Hz, audio extraction, SDI loop-out Conversion: 3G/HD/SD SDI signal to HDMI with resolution up to 1080p. This is not a bi-directional converter, DOES NOT work for HDMI to SDI conversion 3G-SDI: 1080p @60/59.94/50Hz; HD-SDI: 1080i @60/59.94/50Hz, 720p @60/59.94/50Hz; SD-SDI: NTSC @59.94Hz, PAL @50Hz SDI Cable Runs: 3G-SDI (300ft), HD-SDI (500ft), SD-SDI (1000ft). Bit rate support: 2.97Gbps, 2.967Gbps, 1.485Gbps, 1.4835Gbps, 270Mbps Advanced Features: SDI loop-out for a 3G/HD/SD-SDI monitor/display connection, audio extraction to stereo audio output (2Ch), noise reduction and video enhancement, Video H/V mirror, output test pattern display screen, and active video area adjustment High Quality Components: Made in Taiwan, TAA, FCC, CE and RoHS compliant. Metal housing with ESD protection
PACKAGE CONTENTS
- 3G-SDI to HDMI Converter with Scaler and Monitor
- Power Adapter 5VDC/2A
- Installation Guide
