PRODUCT HIGHLIGHTS
- Product ConditionNew and Factory Fresh
- Shipping Weight7 lbs.
- Intel H610 Chip
- 64 GB DDR4 SDRAM DDR4-3200/PC4-25600 Maximum RAM Support
- 2 Total Memory Slots
- Serial ATA/600 Controller
- 1 SATA Interface(s)
- Processor Support (Core i9, Core i7, Core i5, Core i3, Pentium Gold, Celeron)
- Gigabit Ethernet
- Windows 10 x64, Windows 11 x64, Linux Supported Operating System
- 3 USB 3.2 Gen 1 Port(s)
- 120 W
Shuttle XPC slim DH610S Barebone System - Slim PC - Socket LGA-1700 - 1 x Processor Support
PRODUCT HIGHLIGHTS
- Product ConditionNew and Factory Fresh
- Shipping Weight7 lbs.
- Intel H610 Chip
- 64 GB DDR4 SDRAM DDR4-3200/PC4-25600 Maximum RAM Support
- 2 Total Memory Slots
- Serial ATA/600 Controller
- 1 SATA Interface(s)
- Processor Support (Core i9, Core i7, Core i5, Core i3, Pentium Gold, Celeron)
- Gigabit Ethernet
- Windows 10 x64, Windows 11 x64, Linux Supported Operating System
- 3 USB 3.2 Gen 1 Port(s)
- 120 W
OVERVIEW

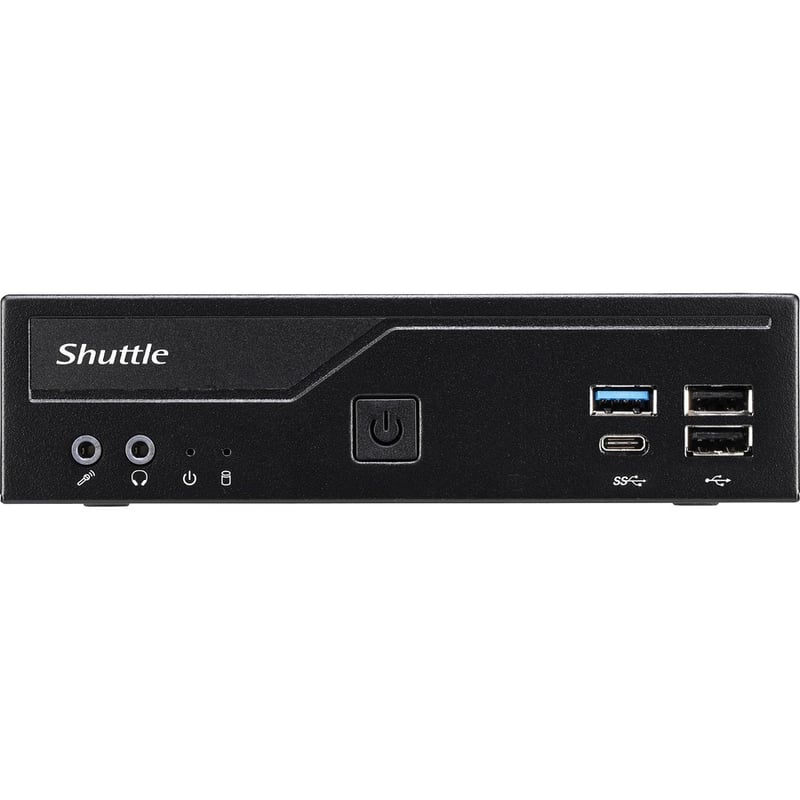

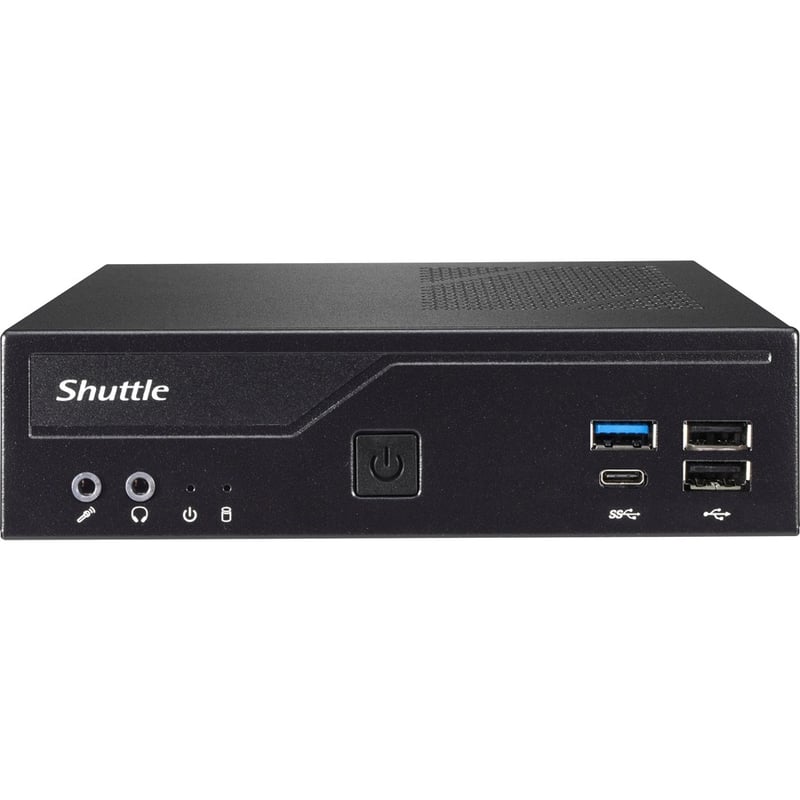

Shuttle XPC slim DH610S Barebone System - Slim PC - Socket LGA-1700 - 1 x Processor Support

Robust 1.3-litre Slim PC supports Intel Core Gen. 12 processors \"Alder Lake-S\" and two UHD displaysThe Shuttle XPC slim Barebone DH610S with H610 chipset houses the performance of Intel's 12th generation Core desktop processors (codenamed Alder Lake-S) for socket LGA1700 in a compact 1.3-litre format. The DH610S allows for two Ultra HD displays to be operated at the same time via HDMI and DisplayPort. It also offers Intel LAN, eight USB ports and Audio ports. The slim metal chassis provides versatile connectivity and reliable operation in environments with ambient temperatures of up to 50 °C. This platform is targeted at professional applications such as Digital Signage, POS, POI, gambling machines, office, healthcare and industry.
PACKAGE CONTENTS
- XPC slim DH610S Barebone System
- Multi-Language User Guide (EN, DE, FR, ES, JP, KR, SC, TC)
- 4 x Screws M3 x 4 mm (to mount a 2.5\" storage device into the bay)
- 2 x Screws M3 x 5 mm (silver colour, to mount two M.2 cards)
- Driver DVD (Windows 64-bit)
- Serial ATA Cable for 2.5\" Drive Including Power Cable
- External 120 W Power Adapter with Power Cord
- Protection Cap for CPU Socket (do not use if heatpipe or fan is mounted)
- Heatsink Compound
