Quam 20W, Embossed Positions, 10-Step, UL Listed

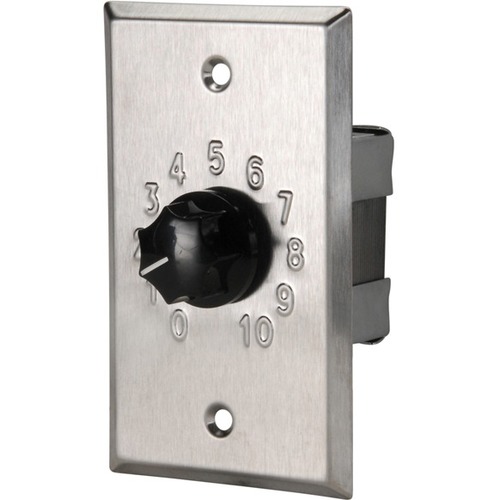

GENERAL DESCRIPTION The QC10 is a UL Listed, single-gang, 20W, ten-step, continuous rotary, audio level attenuator with an OFF position. Stainless steel faceplate with embossed positions and a black knob. Intended Use - Indoor Environment Primary Use - Attenuates audio power to any number of loudspeakers, up to 20W load. For use with 25V or 70V distributed audio systems. UL Listed 813 Commercial Audio Equipment - When installed in accordance with supplied instructions and connected to supply circuits in accordance with ANSI/NFPA70, NEC, and AHJ. Installation - Single-gang electrical box, 2-1/8\"D Audio Specifications Power Rating - 20W Continuous Attenuation (Ref: 25V, 70.7V line) - Position 10: Full Signal Position 9-3:-3 dB each Positions 2-1:-6 dB each Position 0: No Signal Insertion Loss - Audio Connection - 10\" long, pre-cut, color coded leads Recommended Quam Components Enclosures - Surface Mount: SE4W
