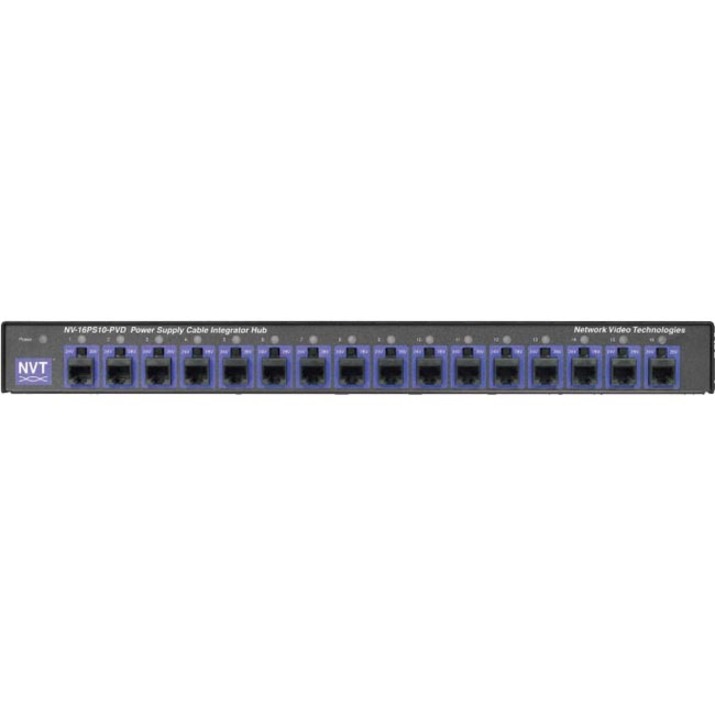

16-CH POWER SUPPLY CABLE INTEGRATOR HUB
PRODUCT HIGHLIGHTS
- Product ConditionNew and Factory Fresh
- Limited WarrantyLifetime
- Shipping Weight1 lbs.
- 120 V AC, 230 V AC Input
- 28 V AC, 1 A Output
- 16 x Ethernet Output Port(s)
- 325 W
- 1U
OVERVIEW
16-CH POWER SUPPLY CABLE INTEGRATOR HUB

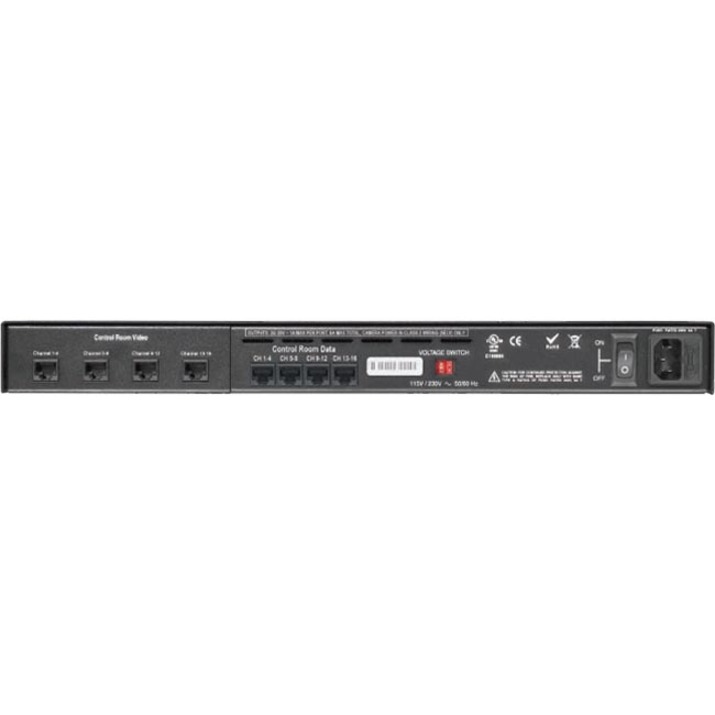

The NVT Phybridge model NV-16PS10-PVD combines a 1 Amp/channel power supply with pass through video and telemetry data, for up to 16 cameras, all over UTP wire. Designed for installation in the wiring/IDF telecom closet, or at the Control/MDF room, the NV-16PS10-PVD consolidates connectivity via standard 4-pair RJ45 EIA/TIA 568B compliant premises wiring and pinouts.At the camera, Power, Video and Data connections are made using a PVD™ transceiver via an RJ45 connector and a single 4-pair cable. Control/MDF room connections are achieved with a single 4-pair RJ45 cable for each group of four cameras. Consolidated P/T/Z telemetry data, if required, passes through the NV-16PS10-PVD's data path, and is connected to the controller via another 4-pair RJ45 cable.
PACKAGE CONTENTS
- NV-16PS10-PVD Power over Ethernet Midspan
- Rack Mount \"L\" brackets (For front, rear, or wall installations)
- Rubber Feet (For desk applications)
- Power Cord (7ft)
