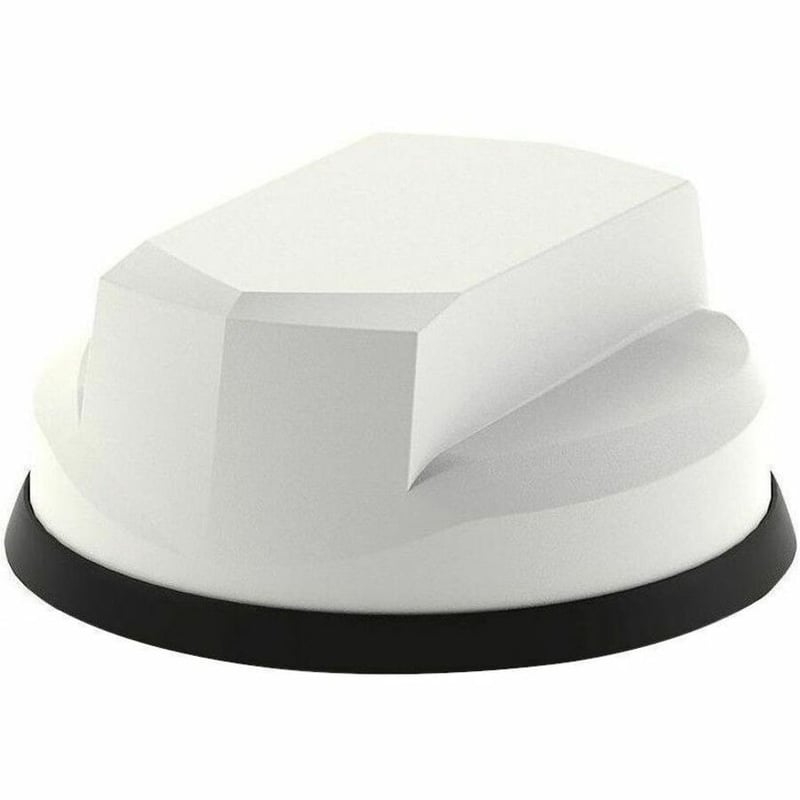

LGMTMB-6-60-24-58 KIT WHITE LGMTMB-6-60-24-58 FITTED CABLES KIT

The L[G]M[X]M[X]-6-60[-24-58] range has been designed to provide 2\u00d72 4G/5G MiMo performance from 617-960/1427-6000MHz in a robust low profile package.The flexible platform allows the main elements to be combined with a number of other functions including GPS/GNSS and up to 6\u00d76 MiMo WiFi 2.4/4.9-7.2GHz.The antenna is designed to be panel mounted and can be fitted on a conductive or non-conductive panel. Supplied with integrated flame retardant RG174 cables (Compliant to UN ECE R118.03 and EN45545-2) and a halogen-free flame retardant radome the antenna is suitable for many environments and applications.The LGM variants have an integrated GPS/GNSS module supporting GPS, Glonass, Galileo and Compass with 26dB LNA gain. This GPS module features advanced filtering for LTE B13/14 designed to minimise potential in-band interference.The antenna is available with a black or white radome which meets IK10 for vandal resistance and IP69K for ingress protection.
