Panorama Antennas BATGM | Internal MiMo 4G/5G Antenna with optional GPS/GNSS & WiFi
PRODUCT HIGHLIGHTS
- Product ConditionNew and Factory Fresh
- Shipping Weight1 lbs.
- Upto 9.8 ft Range
- UHF, VHF
- 1559 MHz to 1612 MHz, 1710
- 6000 MHz
- 26 dB
- 9 dBi
- Cellular Network, GPS
- Black
- Vehicle Mount, Surface Mount
- Omni-directional
- SMA, RP-SMA Connector
OVERVIEW

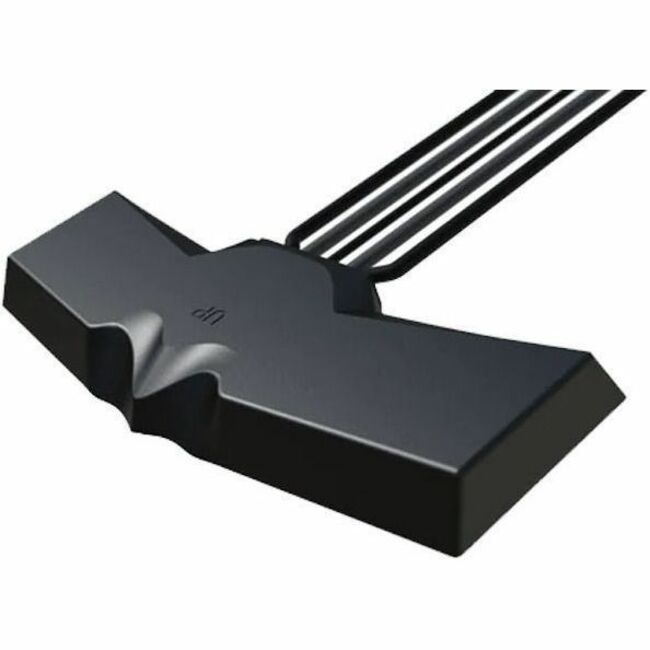

Panorama Antennas BATGM | Internal MiMo 4G/5G Antenna with optional GPS/GNSS & WiFi
The Panorama BAT is range of internal discrete/covert 'all in one' antennas with 2\u00d72 MiMo 4G / 5G (including Band 71), with option of GPS/GNSS, and dual band SiSo or 2\u00d72 MiMo WiFi 2.4/5.0-7.2GHz, including WiFi 6e.The 4G/5G antennas cover 617-960/1427-6000MHz and provide isolation and low correlation coefficient values for effective MiMo function. The optional GPS/GNSS antenna features a 26dB gain LNA with advance filtering.The antenna is designed to be mounted on or under a vehicle dashboard but can be mounted on any non-conductive surface. The BAT range is supplied with low loss cables which are flame retardant and meet the requirements of UN ECE 118 and EN45545-2.
