PRODUCT HIGHLIGHTS
- Product ConditionNew and Factory Fresh
- Limited Warranty3 Year
- Shipping Weight1 lbs.
- 12Gbps SAS/SATA
- PCI Express 3.0 x8
- Plug-in Card
- RAID Supported
- 0, 1, 5, 10 RAID Level
- 2 x SFF-8643, 2 x SFF-8644
- 16 Total SAS Port(s)
- 8 SAS Port(s) Internal
- 8 SAS Port(s) External
- PC, Linux
MICROCHIP
Authorized Dealer
SMARTHBA 2100-8I8E
BYMICROCHIPPCN#8329BRMFG#2301900-R
OUT OF STOCK
FREE SHIPPING
$597.88
PRODUCT HIGHLIGHTS
- Product ConditionNew and Factory Fresh
- Limited Warranty3 Year
- Shipping Weight1 lbs.
- 12Gbps SAS/SATA
- PCI Express 3.0 x8
- Plug-in Card
- RAID Supported
- 0, 1, 5, 10 RAID Level
- 2 x SFF-8643, 2 x SFF-8644
- 16 Total SAS Port(s)
- 8 SAS Port(s) Internal
- 8 SAS Port(s) External
- PC, Linux
OVERVIEW

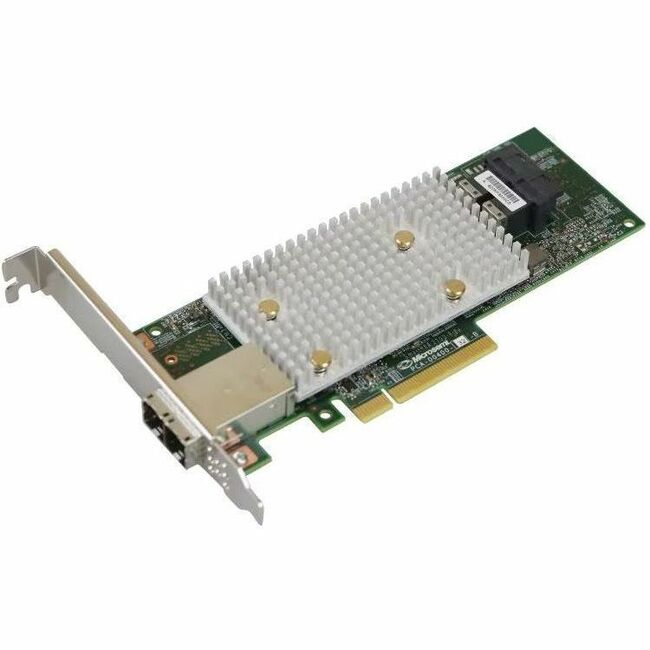

SMARTHBA 2100-8I8E
The 12 Gbps Adaptec SmartHBA 2100-8i8e Host Bus Adapter has 8 internal and 8 external SAS/SATA ports in a x8 PCIe Gen 3 low-profile, MD2 form factor and uniquely combines the capabilities of a full-featured host bus adapter (HBA) with those of a basic RAID adapter using hardware RAID. Built on the Microchip SmartIOC 2100 SAS/SATA protocol controller, HBA 2100 adapters can aggregate the performance of devices to the limits of the PCIe Gen 3 host bus at 6.6 Gbps, and achieve up to 1.7M IOPS without additional overhead or latency. The HBA 2100 adapters also have 40 percent power ...
PACKAGE CONTENTS
No package contents information available.
FEATURES & DESIGN
Features
No features information available.
