PRODUCT HIGHLIGHTS
- Product ConditionNew and Factory Fresh
- Shipping Weight1 lbs.
- 6Gb/s SAS, Serial ATA/600
- PCI Express 2.0 x8
- Plug-in Card
- RAID Supported
- JBOD, 0, 1, 5, 6, 10, 50 RAID Level
- 2 x SFF-8087
- 8 Total SAS Port(s)
- Mac, PC, Linux
- 512 MB

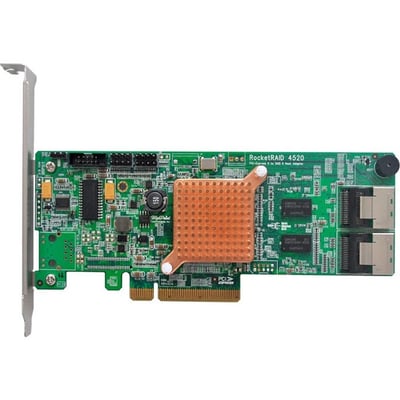

HighPoint RocketRAID 4520 Controller Card
PRODUCT HIGHLIGHTS
- Product ConditionNew and Factory Fresh
- Shipping Weight1 lbs.
- 6Gb/s SAS, Serial ATA/600
- PCI Express 2.0 x8
- Plug-in Card
- RAID Supported
- JBOD, 0, 1, 5, 6, 10, 50 RAID Level
- 2 x SFF-8087
- 8 Total SAS Port(s)
- Mac, PC, Linux
- 512 MB
OVERVIEW
HighPoint RocketRAID 4520 Controller Card

The RocketRAID 4500 series 6Gb/s SAS/SATA RAID HBA's were designed to meet the demanding requirements of professional business and media applications, where consistent performance, data availability and reliability of storage are paramount. 8-Port, PCIe x8 2.0 6Gb/s SAS/SATA Hardware RAID HBA The RocketRAID 4500 HBA's dedicated RAID-on-Chip processor and 512MB of onboard DDR 3 cache memory offloads RAID processing from the host system, ensuring stable and high-performance data transfer. RocketRAID 4500 HBA's are direct upgrades for our 3Gb/s RocketRAID 4300 Series Hardware RAID Controllers. Customers with existing RAID configurations can move these directly from the 4300 series controller to the ...
PACKAGE CONTENTS
- RocketRAID 4520 Controller Card
- 1 x Low Profile Bracket
- 1 x Quick Installation Guide
