JBL MTC-CBT-70T Transformer

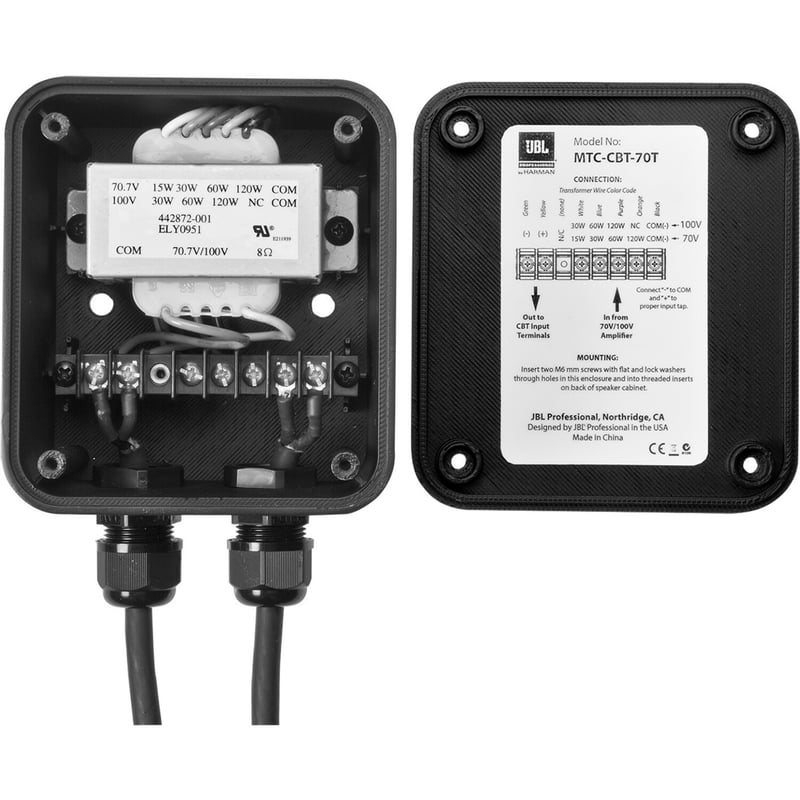

MTC-CBT-70T is a bolt-on transformer module to adapt CBT 70J-1 and CBT 70JE-1 (and CBT 70J-1/JE-1 arrays) for use on distributed loudspeaker lines. It allows long cable runs and multiple speakers to be driven from a single distributed system amplifier channel.Transformer taps include 120W, 60W, and 30W for 70V and 100V distributed lines, plus 15W for 70V only.Connections are made via customer-supplied cable to screwdown terminals inside the enclosure. Two gland nuts are provided - one for the cable into the enclosure from the amplifier and one for the cable from the enclosed terminal strip to the input terminal of ...
