PRODUCT HIGHLIGHTS
- Product ConditionNew and Factory Fresh
- Limited Warranty2 Year
- Shipping Weight23 lbs.
- Monitored
- NEMA L21-30P
- 6 x IEC 60320 C19, 42 x IEC 60320 C13
- 230 V AC
- Network (RJ-45)
- 0U
- Vertical
- Rack Mount
- Rack-mountable
- TAA Compliant
Tripp Lite by Eaton PDU 10kW 200-240V 3PH Monitored PDU - LX Interface Gigabit 48 Outlets L21-30P Input LCD 1.8 m Cord 0U 1.8 m Height TAA
PRODUCT HIGHLIGHTS
- Product ConditionNew and Factory Fresh
- Limited Warranty2 Year
- Shipping Weight23 lbs.
- Monitored
- NEMA L21-30P
- 6 x IEC 60320 C19, 42 x IEC 60320 C13
- 230 V AC
- Network (RJ-45)
- 0U
- Vertical
- Rack Mount
- Rack-mountable
- TAA Compliant
OVERVIEW

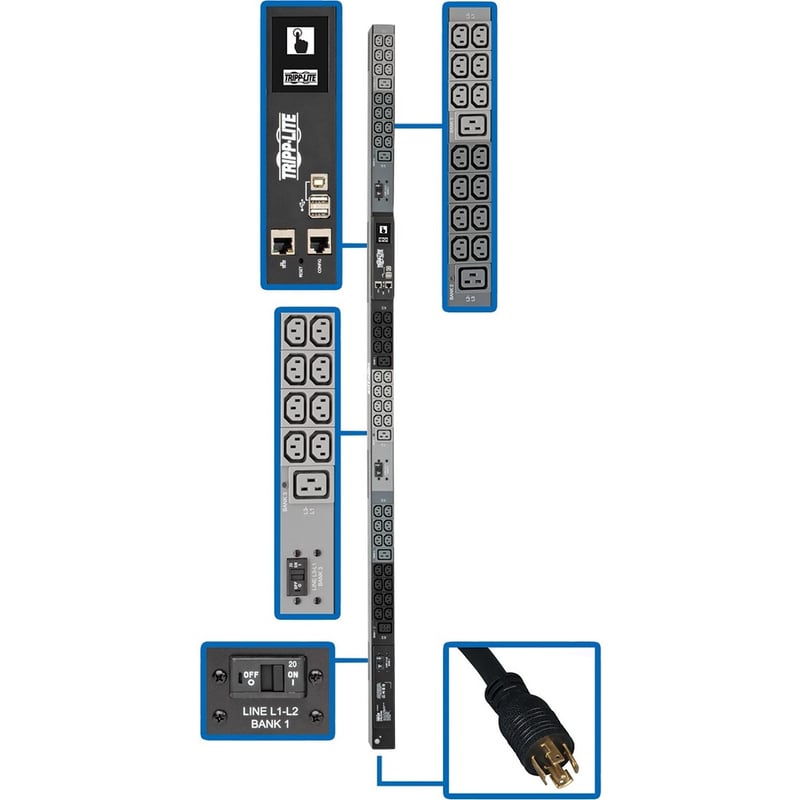

Tripp Lite by Eaton PDU 10kW 200-240V 3PH Monitored PDU - LX Interface Gigabit 48 Outlets L21-30P Input LCD 1.8 m Cord 0U 1.8 m Height TAA

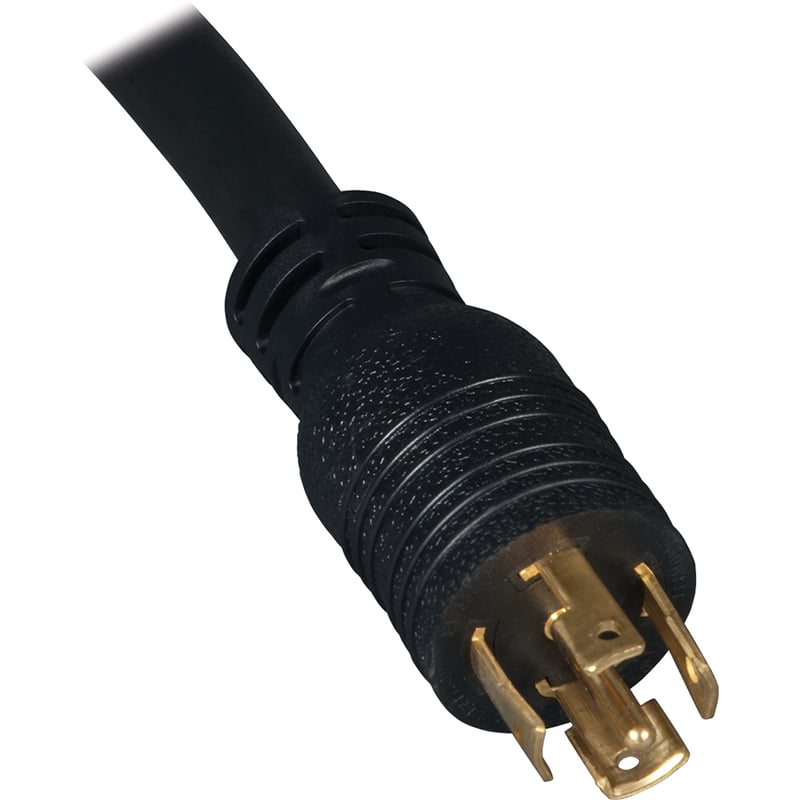

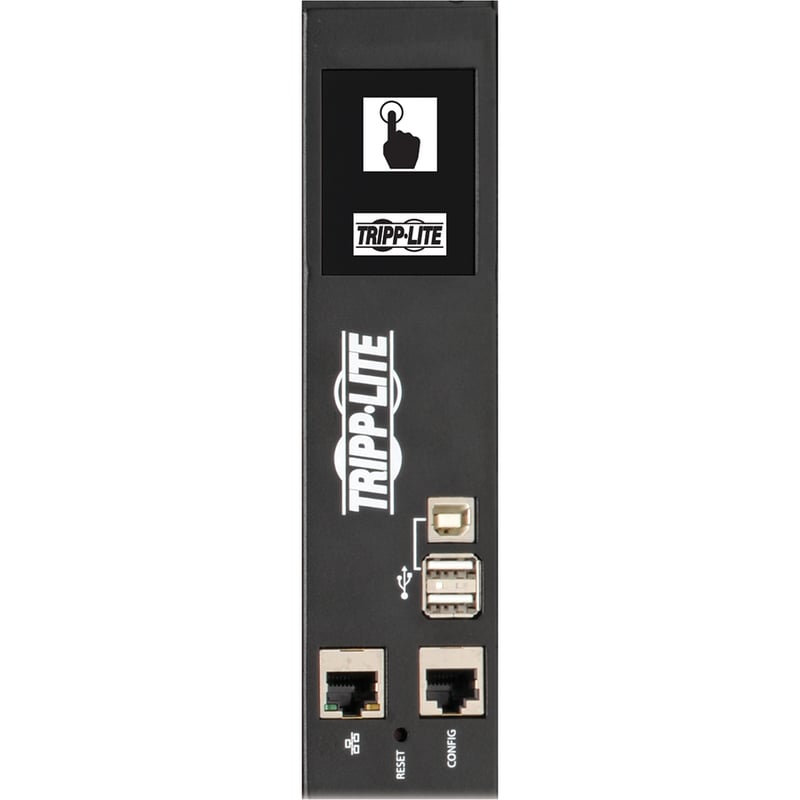

The PDU3EVN6L2130B 10kW 3-Phase Monitored PDU provides real-time remote monitoring of voltage, frequency and load levels via built-in network connection. Recommended for IT and industrial applications, it features 48 outlets-42 C13, 6 C19-with included plug-lock insert sleeves to prevent cables from becoming accidentally disconnected. A six-foot cord with NEMA L21-30P input plug connects the 3-phase PDU to a compatible AC power source, generator or protected UPS.The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication ...
PACKAGE CONTENTS
- PDU3EVN6L2130B 48-Outlet PDU
- Configuration Cable
- 48 x Plug-lock Insert Sleeves
- Rack-mounting Hardware
- Mounting Bracket Accessory
- Owner's Manual
