PRODUCT HIGHLIGHTS
- Product ConditionNew and Factory Fresh
- Limited Warranty2 Year
- Shipping Weight2 lbs.
- 1 x Network (RJ-45)
- 1 x LC Ports
- DuplexLC Port
- Multi-mode
- Gigabit Ethernet
- 10/100/1000Base-T, 1000Base-X

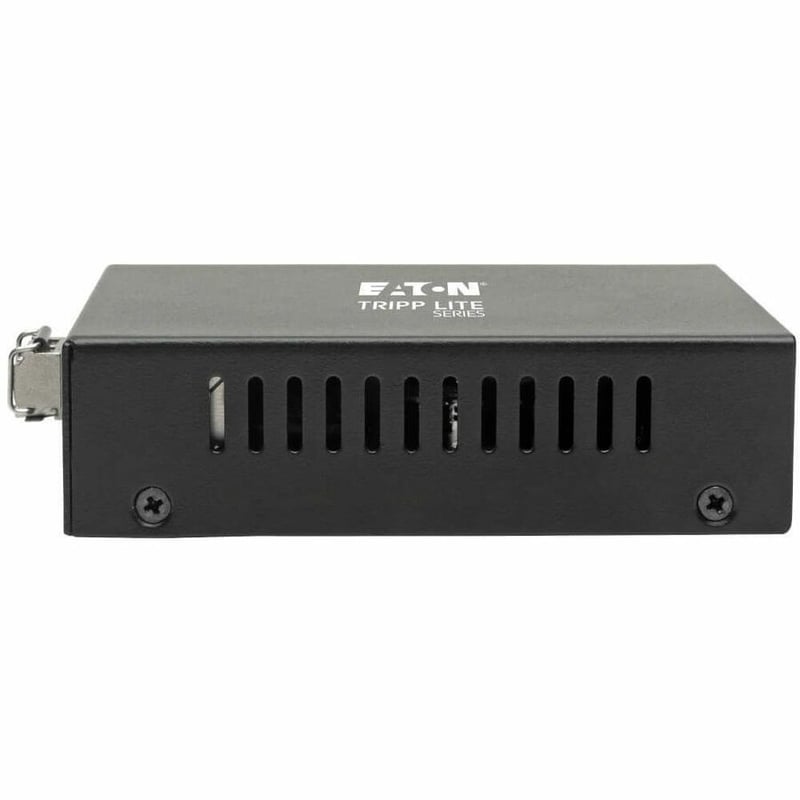

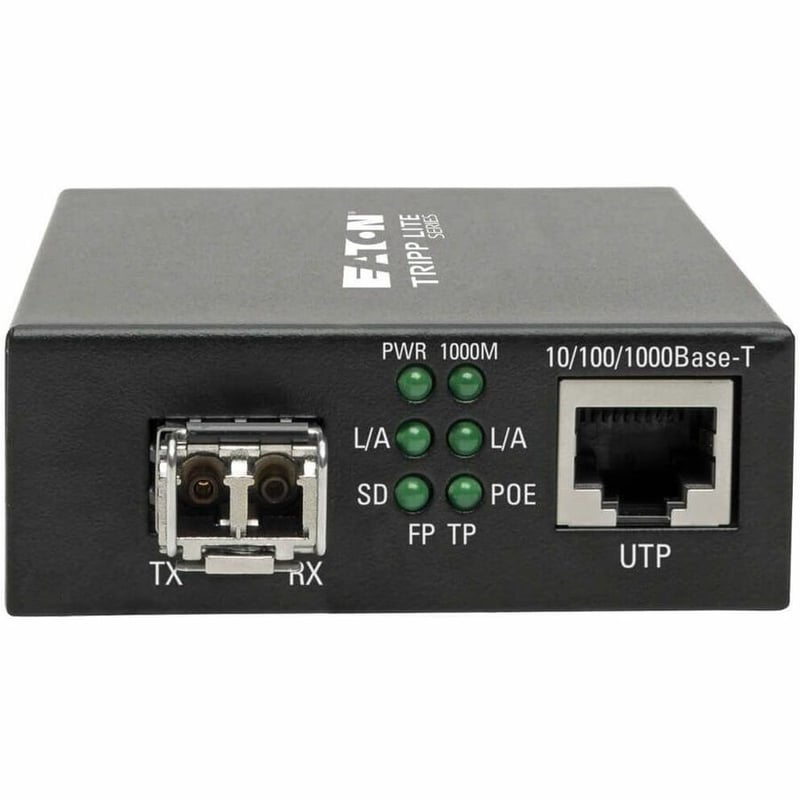

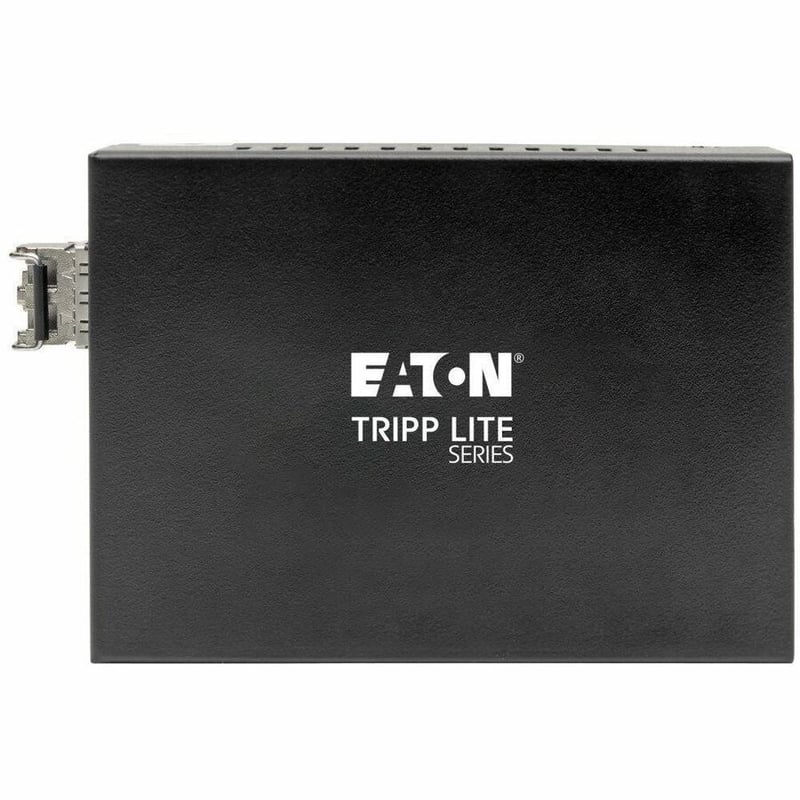

Tripp Lite by Eaton Gigabit Multimode Fiber to Ethernet Media Converter POE+ - 10/100/1000 LC 850 nm 550M (1804.46 ft.)
PRODUCT HIGHLIGHTS
- Product ConditionNew and Factory Fresh
- Limited Warranty2 Year
- Shipping Weight2 lbs.
- 1 x Network (RJ-45)
- 1 x LC Ports
- DuplexLC Port
- Multi-mode
- Gigabit Ethernet
- 10/100/1000Base-T, 1000Base-X
OVERVIEW
Tripp Lite by Eaton Gigabit Multimode Fiber to Ethernet Media Converter POE+ - 10/100/1000 LC 850 nm 550M (1804.46 ft.)

Extends Power and Data to a PoE+ Device up to 550 Meters via LC Multimode Fiber Cable This economical unit converts a multimode fiber optical signal to a copper Ethernet signal that extends both power (48 VDC) and 10/100/1000 Mbps Gigabit Ethernet to a PoE+ (Power over Ethernet) device. Because Cat5e/6 cables are limited to only 100 meters, it is more effective to couple the N785-P01-LC-MM1 with multimode fiber cable to reach greater distances. This could include providing both data and power to PoE and PoE+ devices, such as security cameras, VoIP telephones, point-of-sale kiosks and access control devices. Supports ...
PACKAGE CONTENTS
- N785-P01-LC-MM1 Transceiver/Media Converter

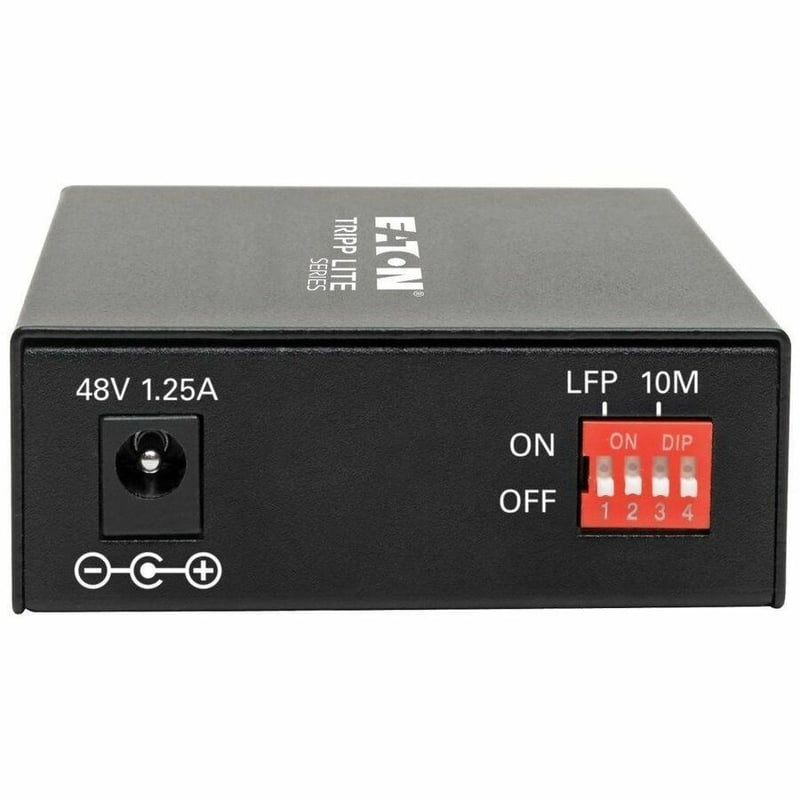

- External Power Supply with 3.6 ft. Cord and NEMA 5-15P Plug (Input: 100-240V, 50/60 Hz, 1.5A; Output: 48V 1.25A)
- Owner's Manual
