PRODUCT HIGHLIGHTS
- Product ConditionNew and Factory Fresh
- Limited Warranty3 Year
- Shipping Weight232 lbs.
- 6U Rack/Tower
- 3 Hour Recharge
- 7.50 Minute Stand-by
- 230 V AC Input
- 240 V AC, 230 V AC, 220 V AC, 208 V AC, 200 V AC, 100 V AC, 110 V AC, 120 V AC Output
- Single Phase
- Pure Sine Wave
- Serial Port
- USB

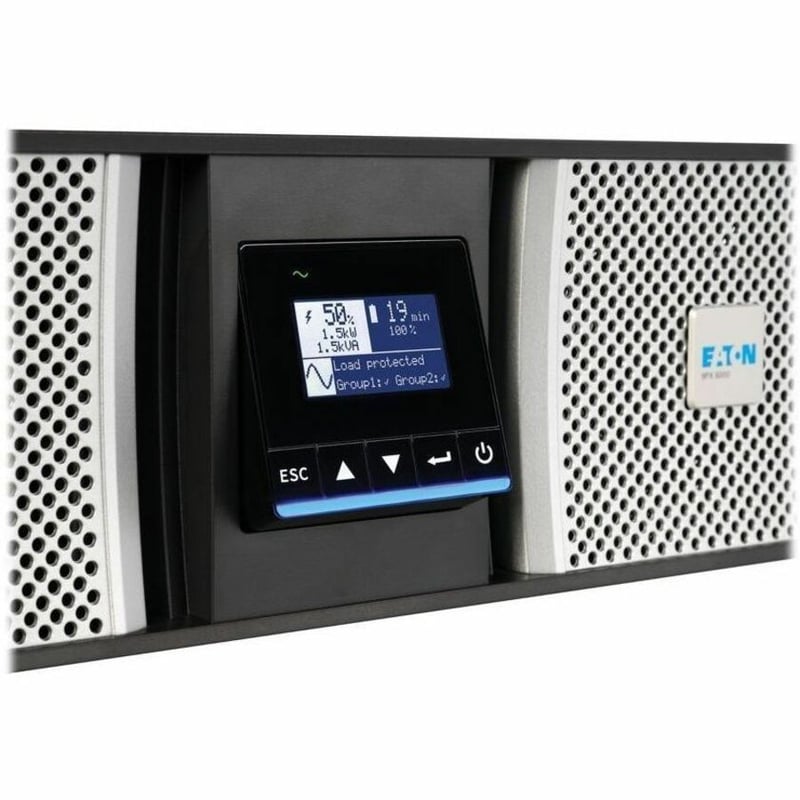

- LCD Display

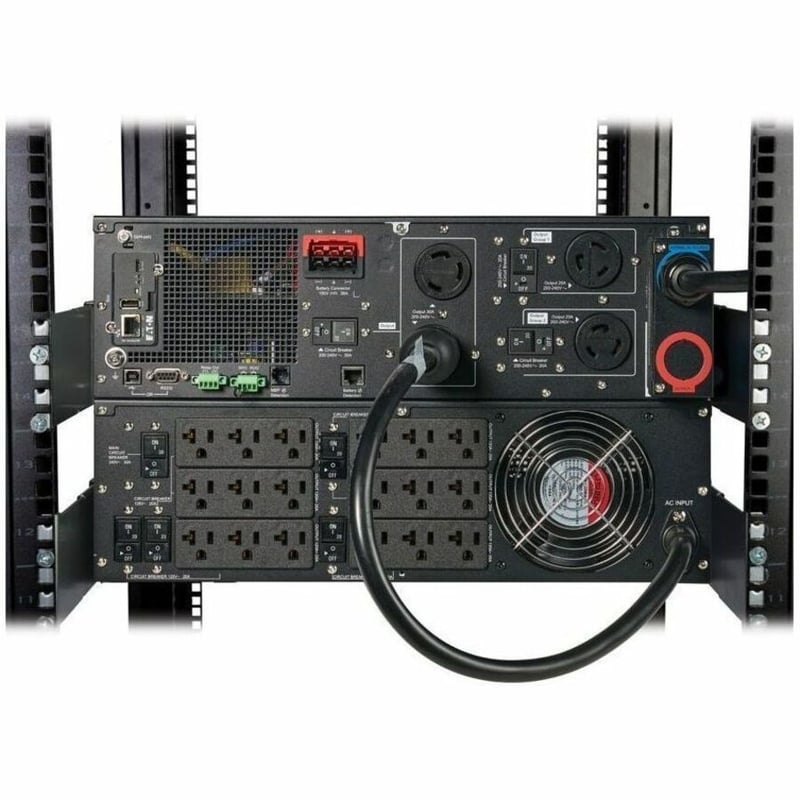

- 18 x NEMA 5-20R, 2 x NEMA L6-20R, 1 x NEMA L6-30R, 1 x Hardwired Receptacle(s)
- Network-M3 Card, INDGW-M2 Card, Relay-MS Card
9PX 3KVA/KW 208/120V ONLINE UPS L6-30P HW 18X 5-20R 2X L6-20R 6U
PRODUCT HIGHLIGHTS
- Product ConditionNew and Factory Fresh
- Limited Warranty3 Year
- Shipping Weight232 lbs.
- 6U Rack/Tower
- 3 Hour Recharge
- 7.50 Minute Stand-by
- 230 V AC Input
- 240 V AC, 230 V AC, 220 V AC, 208 V AC, 200 V AC, 100 V AC, 110 V AC, 120 V AC Output
- Single Phase
- Pure Sine Wave
- Serial Port
- USB
- LCD Display
- 18 x NEMA 5-20R, 2 x NEMA L6-20R, 1 x NEMA L6-30R, 1 x Hardwired Receptacle(s)
- Network-M3 Card, INDGW-M2 Card, Relay-MS Card
OVERVIEW

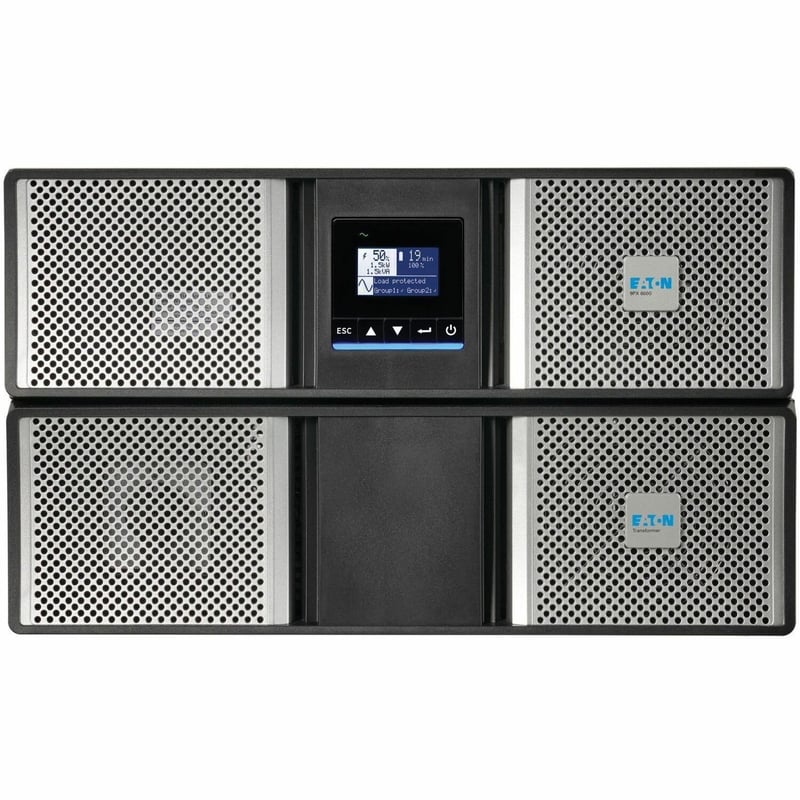

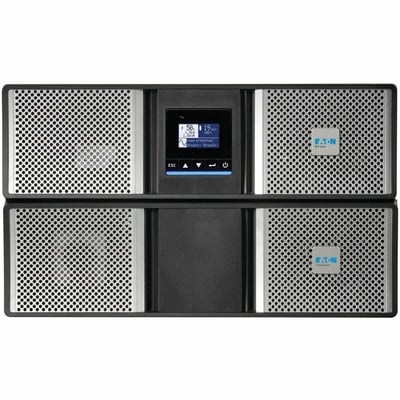

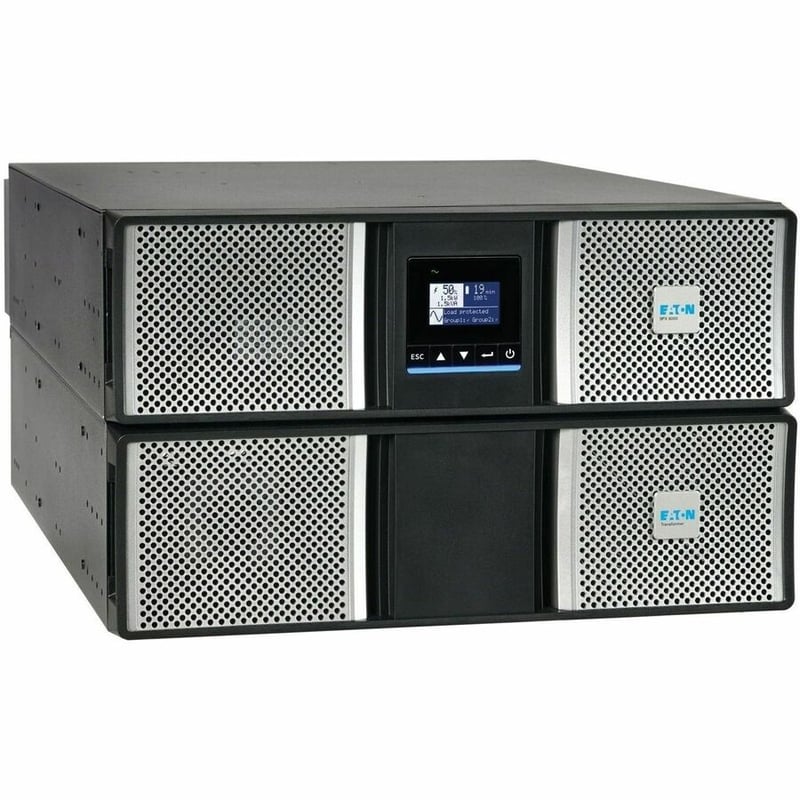

9PX 3KVA/KW 208/120V ONLINE UPS L6-30P HW 18X 5-20R 2X L6-20R 6U
3kVA/3kW/120V/208V Battery Backup for Distributed IT and Edge NetworksThis 9PX G2 rack-mount online double-conversion UPS system provides reliable, low-maintenance battery backup and AC power protection against blackouts, brownouts, surges and line noise that can damage critical IT equipment or destroy data. The 9PX3K3UNTF5G2 is ideal power management for IT managers, data center managers, electrical contractors, integrators, specifying engineers and other end users in business, edge computing, education, government, healthcare, retail and other networking applications.Delivers Maximum Power Reliability with Best-in-Class EfficiencyWith unity power factor (3000VA/3000W output), the 9PX3K3UNTF5G2 maximizes usable output power and allows you to support more devices, including servers, ...
PACKAGE CONTENTS
- 9PX G2 9PX3K3UNTF5G2 3000VA Rack/tower UPS
- 9PXTFMR5G2 120V Step-down Transformer
- NETWORK-M3 Gigabit Network Card
- USB Cable
- RS-232 Cable
- Cable Gland for Hardwire Connection
- Rack-mounting Hardware
- Tower Support Stands
- Quick Start Guide
