PRODUCT HIGHLIGHTS
- Product ConditionNew and Factory Fresh
- Limited Warranty3 Year
- Shipping Weight23 lbs.
- 19 Outlets, 10 ft, 2 x NEMA L6-30P, Horizontal, 2U, LCD, 3YR Warranty
CyberPower PDU30SWHVT19ATNET 200 - 240 VAC 30A Switched ATS PDU
PRODUCT HIGHLIGHTS
- Product ConditionNew and Factory Fresh
- Limited Warranty3 Year
- Shipping Weight23 lbs.
- 19 Outlets, 10 ft, 2 x NEMA L6-30P, Horizontal, 2U, LCD, 3YR Warranty
OVERVIEW

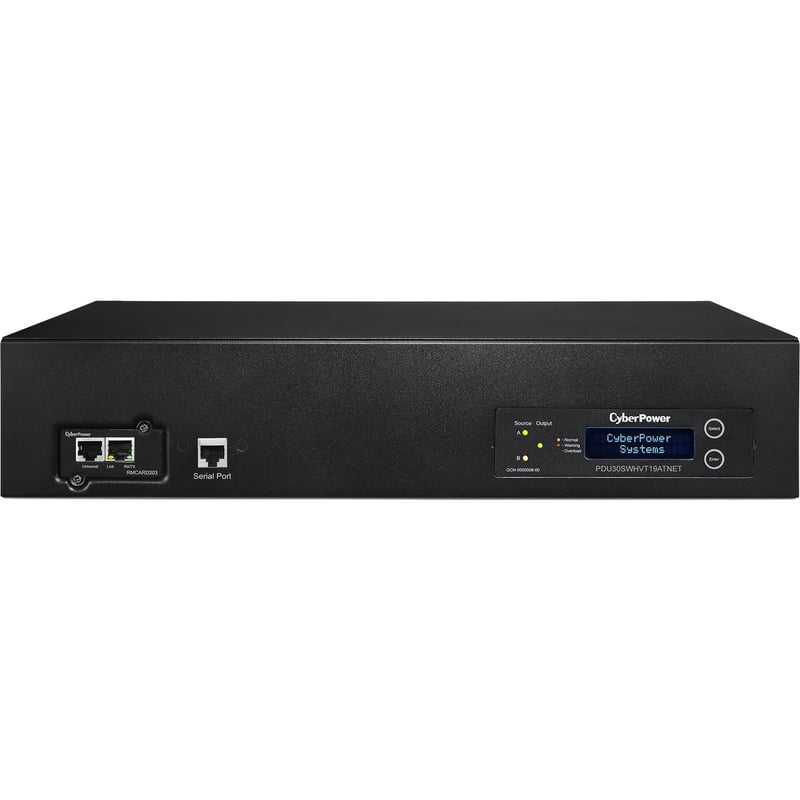

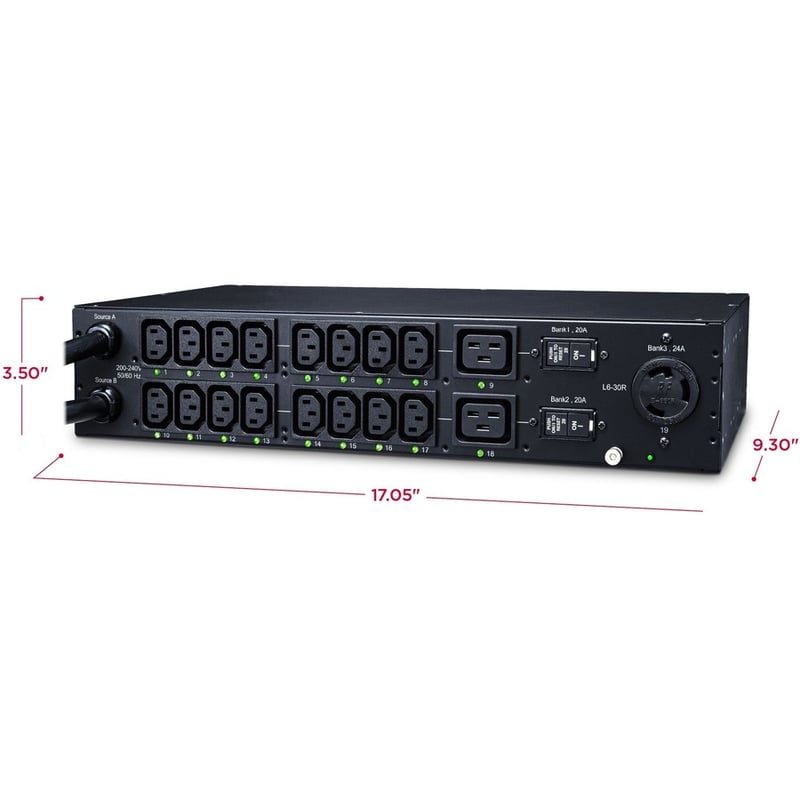

CyberPower PDU30SWHVT19ATNET 200 - 240 VAC 30A Switched ATS PDU

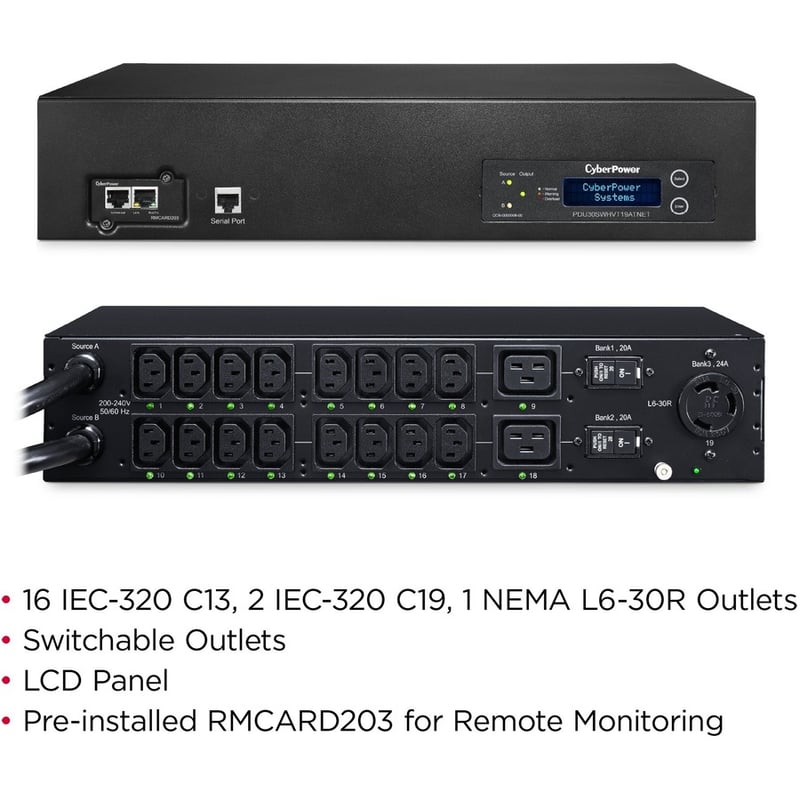

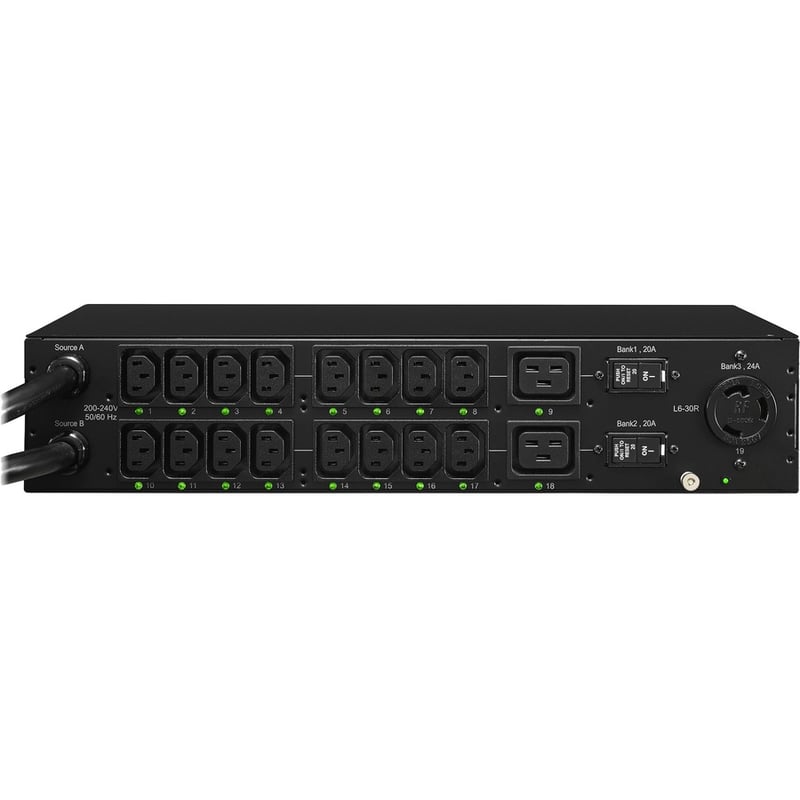

The CyberPower PDU30SWHVT19ATNET, a 19-outlet (rear), 2U rackmount switched automatic transfer switch (ATS) power distribution unit (PDU), provides 200-240V 30A output. It distributes unfiltered electrical pass-through to to 19 receptacles--16 IEC-320 C13, 2 IEC-320 C19, and 1 NEMA L6-30R receptacles-from redundant NEMA L6-30P plugs. Dual power cords can be plugged into separate power sources to provide redundancy to single-corded connected equipment. If power for the primary source exceeds the lower or upper thresholds, or if power fails, the PDU will switch to the secondary power source to ensure continuous operation. The PDU will switch back to the primary power source ...
PACKAGE CONTENTS
- PDU30SWHVT19ATNET Switched ATS PDU 200-240V 30A 2U 19-Outlets (2) L6-30P
- 2 x Mounting Brackets
- 24 x M4x8 Bracket Mounting Screws
- 6 x M5x12 Rack Mounting Screws
- 6 x Washers
- 2 x Cord Retention Trays
- 4 x M3x4 Cord Retention Tray Mounting Screws
- 30 x Cable Ties
- RJ45/DB9 Serial Port Connection Cable
- Jumper
- User Manual
- Registration Card
- CD
- 4 x IEC Socket Power Cord Stands
- 29 x M3x4 Screws
- 27 x Power Cord Retention Cable Clip
- 27 x Cable Ties
