Comprehensive Video Extender Kit

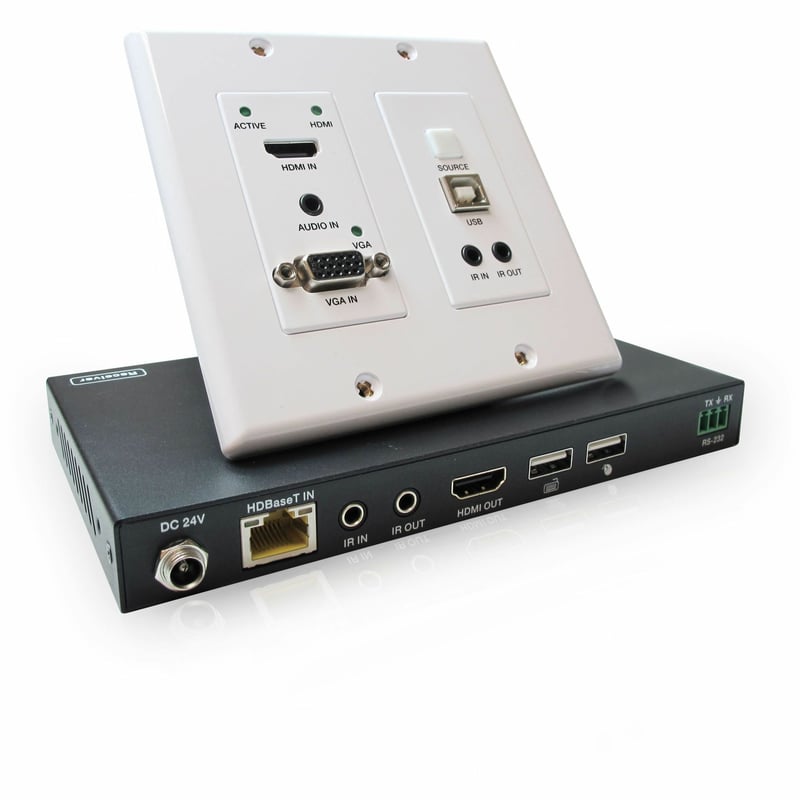

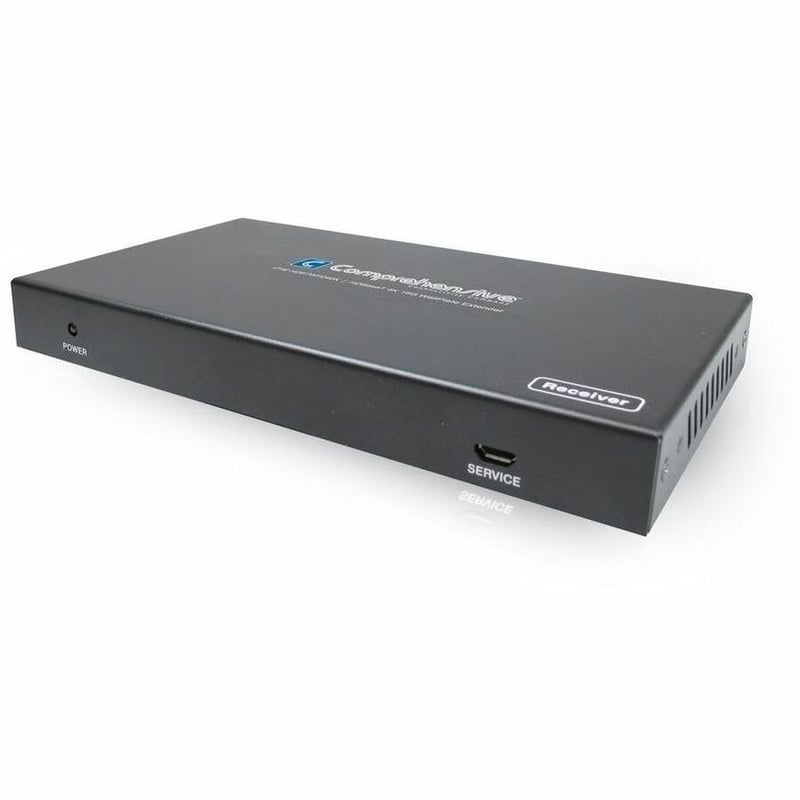

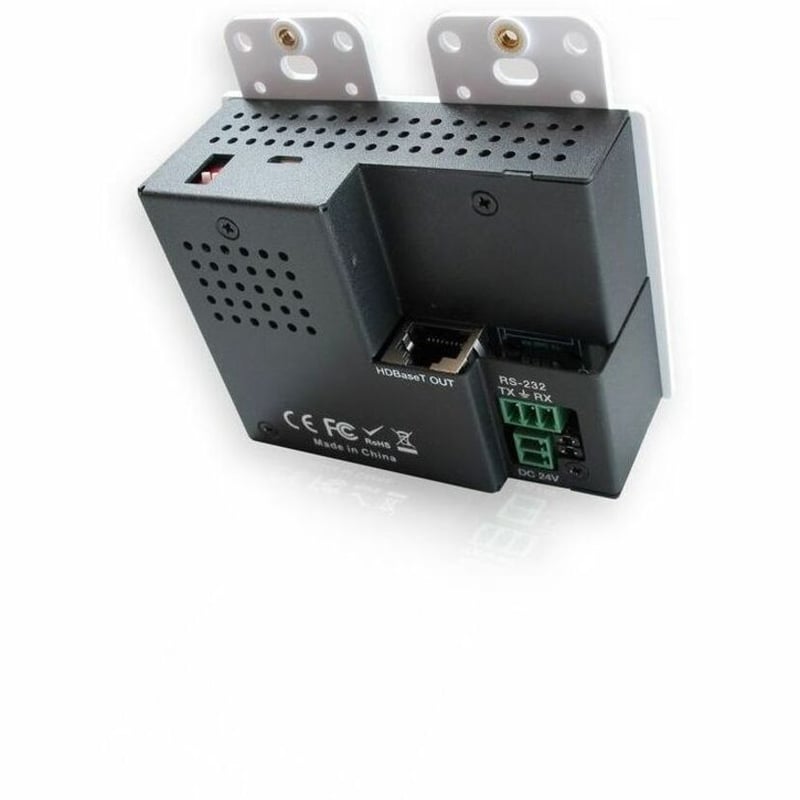

The CHE-HDBTWP240K supports HDMI, USB 2.0 and VGA with audio inputs within a standard 2-Gang US Decora wall box and can transmit HDMI signal over CAT6/6a/7 to a distance up to 131ft for 4K2K@60Hz (4:4:4) or up to 230ft for 1080p60Hz. Built in auto switching displays the last connected device, you can use the front button controls for manual switching, or serial RS-232 option for remote control. The USB KVM function enables the USB transmission from the receiver to the transmitter. Bi-directional power allows easy connection to either the wall plate end or receiver end. HDCP and EDID are supported via ...
