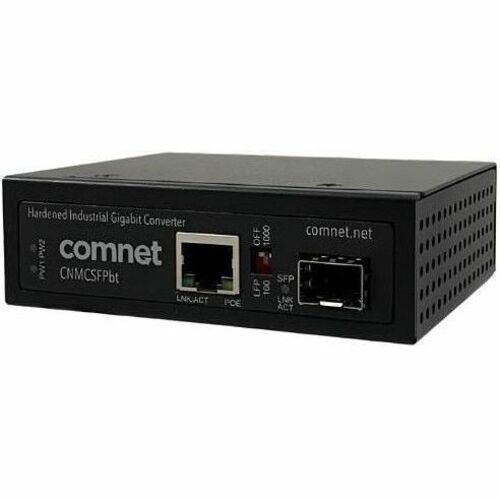

ComNet CNMCSFPBT Transceiver/Media Converter

Purpose Built Professional SecurityThe ComNet™ CNMCSFPbt is an industrial grade / environmentally hardened fiber optic Ethernet transceiver (media converter) that complies with the PoE standard as defined by the IEEE 802.3bt Type 4 while maintaining backward compatibility with the previous standards as defined by IEEE802.3at-2009 and IEEE802.3af-2003.The media converter consists of one DIP switch selectable 100/1000BASE-X SFP port, and one auto-negotiating 10/100/1000BASE-T(X) RJ-45 PSE port. When supplied with an operating power input of 52 to 56 VDC, PoE that is compliant with the PoE standard as defined by IEEE 802.3bt Type 4 is produced, capable of delivering up to 90 ...
