NEXUS 2-PORT QDD SMARTNIC+ (16-CHANNEL), VU9P FPGA, 9GB DDR

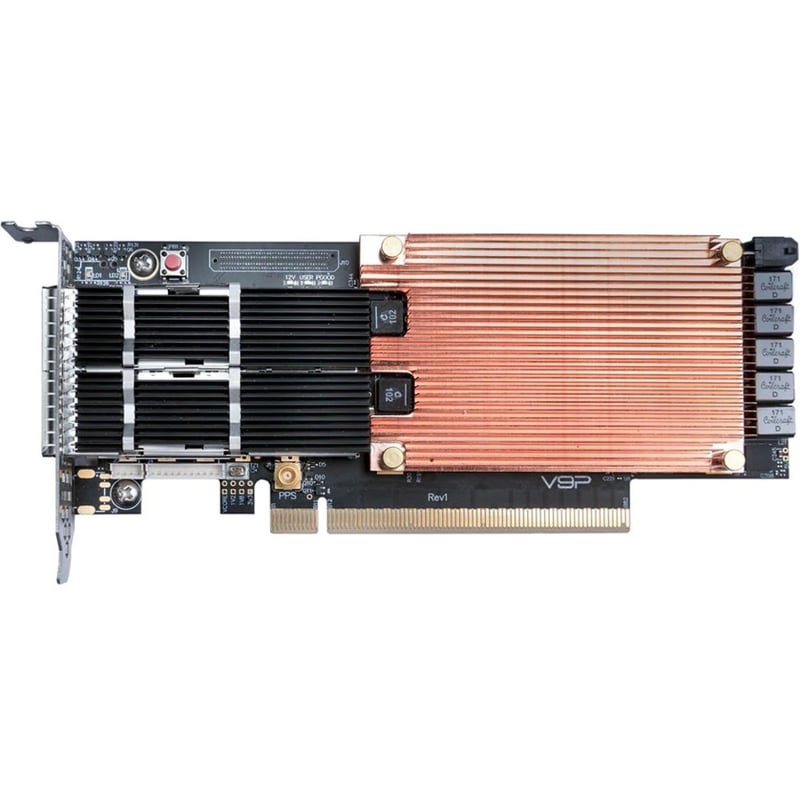

Highest-density network application card The Cisco Nexus® SmartNIC+ V9P is an FPGA-based network application card, optimized for low latency and high density. The device packs a powerful 16nm Xilinx Virtex UltraScale Plus (VU9P) FPGAs with 2.5M logic cells, into a compact, half-height, half-length, PCIe 16x form factor. High-capacity and low-latency memory An extensive memory hierarchy for complex, memory-intensive applications The Xilinx VU9P FPGA (Field Programmable Gate Array) features 75Mbit of block RAM and 270Mbit of UltraRAM on chip. The Cisco Nexus SmartNIC+ V9P further incorporates an additional 9GB of DDR4 DRAM on the board for high throughput access. The DRAM ...
