PRODUCT HIGHLIGHTS
- Product ConditionNew and Factory Fresh
- Limited Warranty5 Year
- Shipping Weight1 lbs.
- For Data Networking, Optical Network
- 1 x MPO-24 Network, 24 x LC Duplex Network
- Optical Fiber
- 1520 nm, 1612 nm, 1567.34 nm, 1569.60 nm Wavelength
CISCO
Authorized Dealer
NCS 1000 MTP/MPO TO 24 COLORLESS CHS PASSIVE BREAKOUT MODULE
BYCISCOPCN#0487BIMFG#NCS1K-BRK-24
OUT OF STOCK
FREE SHIPPING
$11,374.29
PRODUCT HIGHLIGHTS
- Product ConditionNew and Factory Fresh
- Limited Warranty5 Year
- Shipping Weight1 lbs.
- For Data Networking, Optical Network
- 1 x MPO-24 Network, 24 x LC Duplex Network
- Optical Fiber
- 1520 nm, 1612 nm, 1567.34 nm, 1569.60 nm Wavelength
OVERVIEW

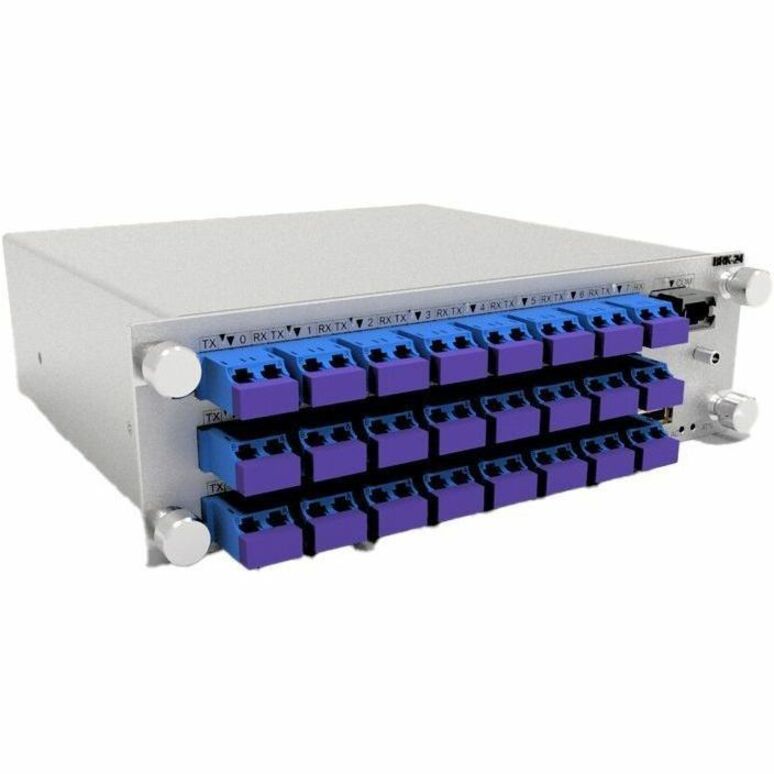

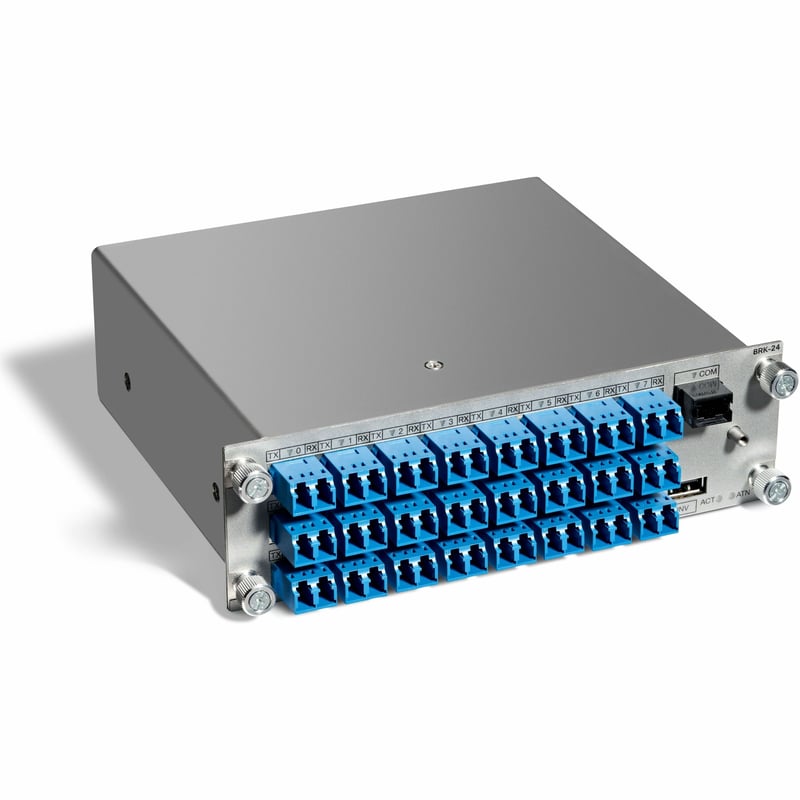

NCS 1000 MTP/MPO TO 24 COLORLESS CHS PASSIVE BREAKOUT MODULE
The NCS1K-BRK-24 module providesthe breakout of 16 fibersfrom an MPO-24 connector to 24 duplex LC connectors. The signals on each fiber from the MPO input ports are split over three LC output ports by a 1x3 optical splitter. The signals from the three adjacent input LC ports are combined into a single MPO fiber output port through a 1x3 optical coupler. For each port (MPO and LC), power monitors with tone detection capability are available. A filtered optical loopback (191.175 THz) from one MPO input port (fiber-1) to all MPO output ports is available for connection verification.","The NCS1K-BRK-24 module providesthe ...
PACKAGE CONTENTS
No package contents information available.
FEATURES & DESIGN
Features
No features information available.
