PRODUCT HIGHLIGHTS
- Product ConditionNew and Factory Fresh
- Limited Warranty3 Year
- Shipping Weight1 lbs.
- 12Gb/s SAS, Serial ATA/600
- PCI Express 3.0 x8
- Low-profile
- Plug-in Card
- RAID Supported
- 0, 1, 5, 10, 50, 6, 60 RAID Level
- 2 x SFF-8643
- 8 Total SAS Port(s)
- 2 SAS Port(s) Internal
- PC, SPARC
BROADCOM 9361-8I 12GB/S PCIE 3.0 8-PORT INTERNAL 1G DDR3
PRODUCT HIGHLIGHTS
- Product ConditionNew and Factory Fresh
- Limited Warranty3 Year
- Shipping Weight1 lbs.
- 12Gb/s SAS, Serial ATA/600
- PCI Express 3.0 x8
- Low-profile
- Plug-in Card
- RAID Supported
- 0, 1, 5, 10, 50, 6, 60 RAID Level
- 2 x SFF-8643
- 8 Total SAS Port(s)
- 2 SAS Port(s) Internal
- PC, SPARC
OVERVIEW

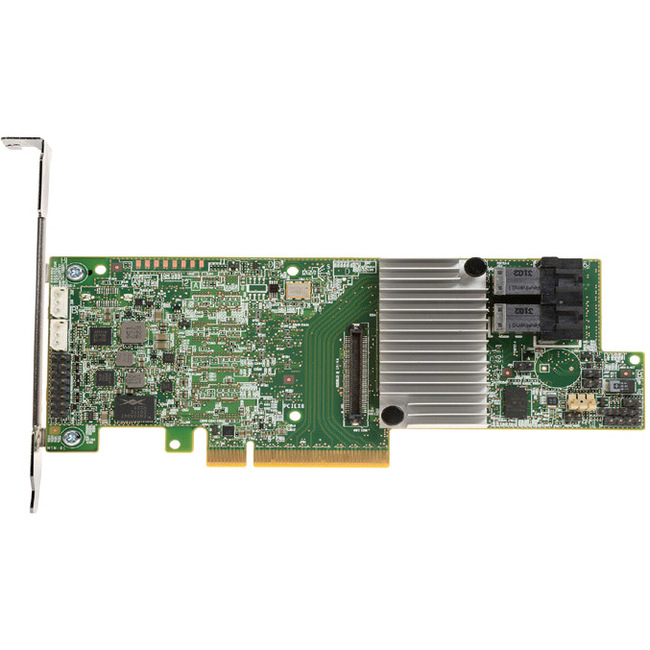

BROADCOM 9361-8I 12GB/S PCIE 3.0 8-PORT INTERNAL 1G DDR3

Datacenter, cloud and high-performance computing environments not only require large amounts of storage capacity, they also must provide the data protection and performance today's applications and end users demand. The MegaRAID SAS 9361-8i 12Gb/s SAS and SATA RAID controller card addresses these needs by delivering proven performance and RAID data protection for a range of server storage applications.Connect up to 128 SATA or SAS drives with eight internal 12Gb/s SATA and SAS portsFit into rack-mounted servers with low-profile form factor and side-mounted SAS connectorsSupport critical, high-bandwidth applications with PCIe® 3.0 connectivityBalance protection and performance for critical applications with RAID levels 0, 1, 5, 6, 10, 50, and 60Add more protection and peace of mind with optional CacheVault® flash cache protection.
PACKAGE CONTENTS
- MegaRAID SAS 9361-8i
- QIG
- LP Bracket
- 2 x 1-meter Mini-SAS HD SFF8643 to SATA Fanout Cables
