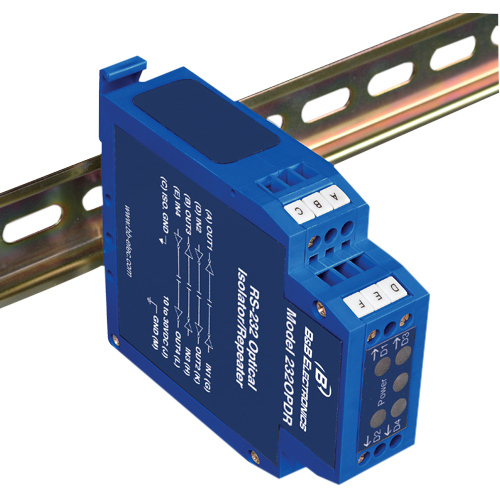

B+B SmartWorx RS-232 Isolated Repeater, DIN Rail

The 232OPDR is a DIN Rail mountable RS-232 optical isolator and repeater. It provides 2000 V Isolation for four RS-232 signal lines, two in each direction. The isolator has four LED's to show data flow and one LED to indicate power. Connections are made to a terminal block. The isolation provides protection for computer equipment from ground loops and induced currents caused by lightning or heavy electrical loads. It also functions as a repeater to extend RS-232 signals another 50 feet. The 232OPDR can support two data pairs or one data pair plus control signals in both directions.
