PRODUCT HIGHLIGHTS
- Product ConditionNew and Factory Fresh
- Shipping Weight1 lbs.
- Functions: Video Encoding
- 2160p
- 4096 x 2160
- 60 fps
- 4K UHD, 4K, Full HD
- H.265 (HEVC), H.264, H.265
- DisplayPort
- SDI
- PC, Linux
- Windows 8, Windows 8.1, Windows 7 x64, Windows Server 2012, Windows Server 2012 R2 x64, Windows Server 2008 R2 x64, Ubuntu 14.04 Supported Operating System

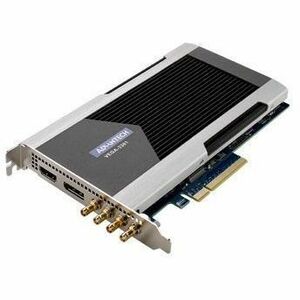

4KP60 HEVC ENCODER CARD
PRODUCT HIGHLIGHTS
- Product ConditionNew and Factory Fresh
- Shipping Weight1 lbs.
- Functions: Video Encoding
- 2160p
- 4096 x 2160
- 60 fps
- 4K UHD, 4K, Full HD
- H.265 (HEVC), H.264, H.265
- DisplayPort
- SDI
- PC, Linux
- Windows 8, Windows 8.1, Windows 7 x64, Windows Server 2012, Windows Server 2012 R2 x64, Windows Server 2008 R2 x64, Ubuntu 14.04 Supported Operating System
OVERVIEW
4KP60 HEVC ENCODER CARD

VEGA-3301 enables real-time 4K UltraHD (2160p60) HEVC encoding at up to 20x less power consumption than a software-only solution. The HEVC/H.265 codec is gaining momentum because it reduces bit rates by approximately 50% when compared to an equivalent quality video stream encoded using H.264, enabling more channels or higher resolution video delivery over the same infrastructure. It is particularly relevant for 4K UltraHD transmission which requires a much higher stream capacity. These improvements are achieved at the penalty of much higher computation complexity, with up to four general purpose server class processors required to perform a 4K 60fps software-based broadcast ...
PACKAGE CONTENTS
No package contents information available.
