PRODUCT HIGHLIGHTS
- Product ConditionNew and Factory Fresh
- Limited Warranty5 Year
- Shipping Weight2 lbs.
- 16 Ports
- Manageable
- Gigabit Ethernet
- 10/100/1000Base-TX, 10/100/1000Base-T, 1000Base-X, 1000Base-SX/LX, 1000Base-LHX, 1000Base-ZX, 100Base-FX
- 2 Layer Supported
- 4 SFP Slots
- 16 W Power Consumption
- 420 W PoE Budget
- Twisted Pair, Optical Fiber
- PoE Ports
- DIN Rail Mountable, Wall Mountable, Enclosure
- 5 Year Limited Warranty
POE MANAGED ETHERNET SWITCH 16G+4SFP PORT POE MANAGED ETHERNET
PRODUCT HIGHLIGHTS
- Product ConditionNew and Factory Fresh
- Limited Warranty5 Year
- Shipping Weight2 lbs.
- 16 Ports
- Manageable
- Gigabit Ethernet
- 10/100/1000Base-TX, 10/100/1000Base-T, 1000Base-X, 1000Base-SX/LX, 1000Base-LHX, 1000Base-ZX, 100Base-FX
- 2 Layer Supported
- 4 SFP Slots
- 16 W Power Consumption
- 420 W PoE Budget
- Twisted Pair, Optical Fiber
- PoE Ports
- DIN Rail Mountable, Wall Mountable, Enclosure
- 5 Year Limited Warranty
OVERVIEW
POE MANAGED ETHERNET SWITCH 16G+4SFP PORT POE MANAGED ETHERNET

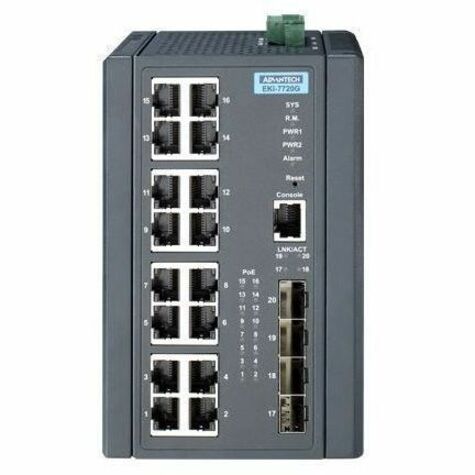

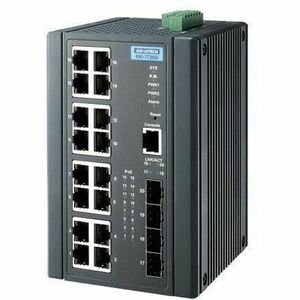

The EKI-7720G-4FPI Gigabit managed PoE switch comes with 16 10/100/1000BaseT(X) ports with 802.3af/at supported and 4 Giga SFP ports. It features 16 IEEE802.3af/at PoE ports, -40~70°C operating temperature, and Din-Rail/Wall-Mount installation options, making it ideal for application which requires high-bandwidth transmission, more PoE ports, and Din-Rail installation. In addition, it is also embedded with Advantech exclusive features like IXM which benefits users for fast deployment and can dramatically save engineers time and costs, X-Ring Pro which achieves ultra-high speed recovery time of less than 20ms to ensure network stability, and Security Pack which protects your network from internal intrusion.
PACKAGE CONTENTS
No package contents information available.
