PRODUCT HIGHLIGHTS
- Product ConditionNew and Factory Fresh
- Limited Warranty5 Year
- Shipping Weight1 lbs.
- 4 Ports
- Gigabit Ethernet
- 10/100/1000Base-T, 10/100/1000Base-TX, 100Base-FX, 1000Base-X
- 2 Layer Supported
- 2 SFP Slots
- 4.32 W Power Consumption
- 120 W PoE Budget
- Twisted Pair, Optical Fiber
- PoE Ports
- DIN Rail Mountable, Wall Mountable
- 5 Year Limited Warranty
Advantech EKI-2706G-2FPI Ethernet Switch
PRODUCT HIGHLIGHTS
- Product ConditionNew and Factory Fresh
- Limited Warranty5 Year
- Shipping Weight1 lbs.
- 4 Ports
- Gigabit Ethernet
- 10/100/1000Base-T, 10/100/1000Base-TX, 100Base-FX, 1000Base-X
- 2 Layer Supported
- 2 SFP Slots
- 4.32 W Power Consumption
- 120 W PoE Budget
- Twisted Pair, Optical Fiber
- PoE Ports
- DIN Rail Mountable, Wall Mountable
- 5 Year Limited Warranty
OVERVIEW

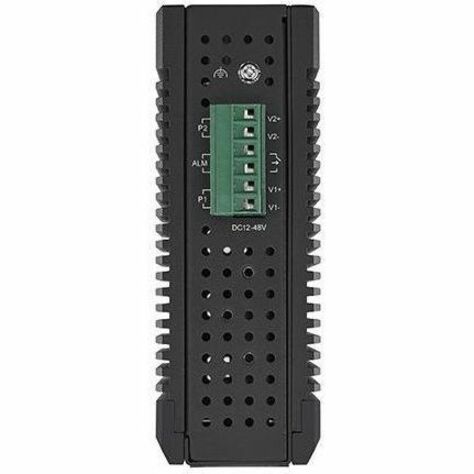

Advantech EKI-2706G-2FPI Ethernet Switch
The EKI-2706G PoE switch is unmanaged Ethernet switches supporting 4 ports PoE+ (Power over Ethernet) and compliant with IEEE 802.3at/af standards. Provides up to 30 watts of power per port and fulfill the power budget of max.120 watts on system with the power input from 12~48VDC. The switch provides a relay output for an event alarm which activates the alarm to notify administrators. Robust design for harsh environment, DIN-rail mounting and fast startup with plug and work. The EKI-2706G supports IEEE 802.3/802.3u/802.3z/802.3ab/802.3x with 10/100/1000 Mbps, full/half-duplex, auto-negotiation and MDI/MDI-X auto-sensing to provide an economical solution for your industrial Ethernet network.
PACKAGE CONTENTS
No package contents information available.
