PRODUCT HIGHLIGHTS
- Product ConditionNew and Factory Fresh
- Limited Warranty5 Year
- Shipping Weight1 lbs.
- 1 x Network (RJ-45)
- 1 x SC Ports
- DuplexSC Port
- Multi-mode
- 1310 nm Fiber
- Fast Ethernet
- 10/100Base-TX, 100Base-FX
- 2 km
- DC
- Rail-mountable, Panel-mountable, Wall Mountable
B+B SmartWorx 10/100T (X) to Multi-Mode SC Type Fiber Optic Industrial Media Converter
PRODUCT HIGHLIGHTS
- Product ConditionNew and Factory Fresh
- Limited Warranty5 Year
- Shipping Weight1 lbs.
- 1 x Network (RJ-45)
- 1 x SC Ports
- DuplexSC Port
- Multi-mode
- 1310 nm Fiber
- Fast Ethernet
- 10/100Base-TX, 100Base-FX
- 2 km
- DC
- Rail-mountable, Panel-mountable, Wall Mountable
OVERVIEW

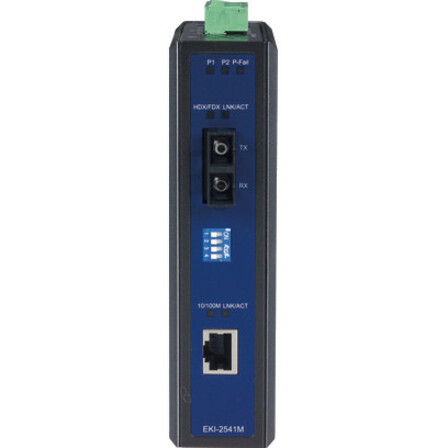

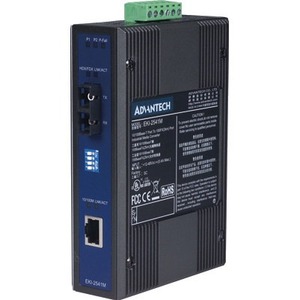

B+B SmartWorx 10/100T (X) to Multi-Mode SC Type Fiber Optic Industrial Media Converter

The EKI-2541M/2541S is designed to convert Ethernet networks to fiber networks by transparently converting Ethernet signals to optic signals. The advantages of fiber optics are wide bandwidth, EMI immunity and long-distance transmissions.Therefore, the EKI-2541M/2541S is an ideal solution for \"fiber to building\" applications at central offices or local sites. EKI-2541M/2541S supports MDI/MDIX auto detection, so you don't need to use crossover wires. Furthermore, the EKI-2541M/2541S can work normally from -10 to 60°C and accepts a wide voltage range from 12 ~ 48 V DC . Besides, it also provides 3,000 V DC surge (EFT) protection against over-voltage, so it is ...
PACKAGE CONTENTS
No package contents information available.
