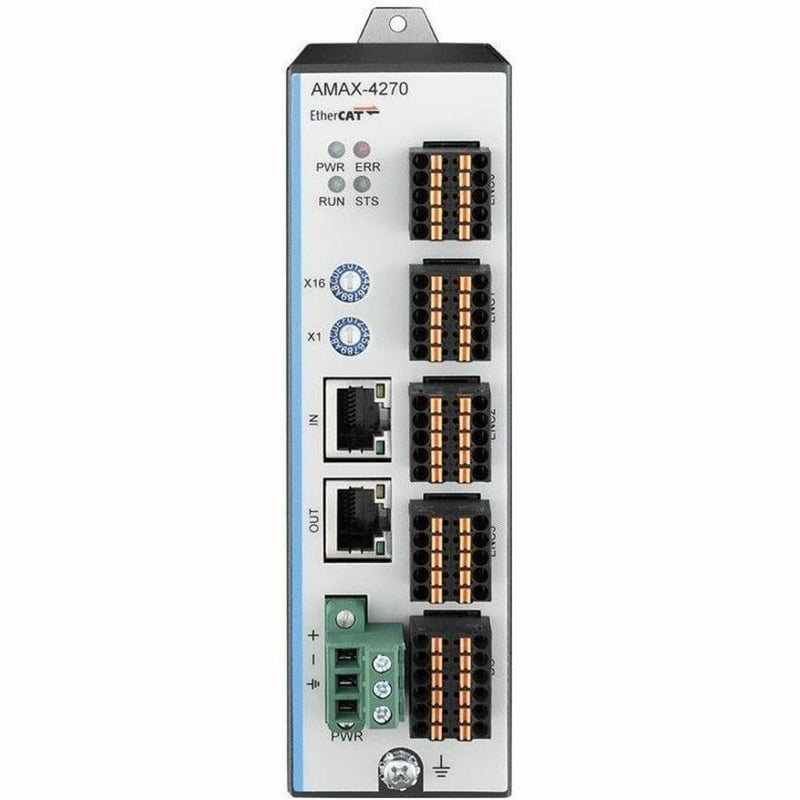

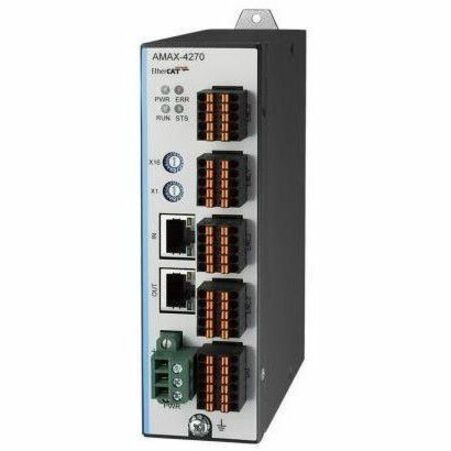

Advantech 4-channel High Speed Trigger and Latch EtherCAT Module

IntroductionAMAX-4270 is the EtherCAT subDevice with 4-channel high speed trigger and latch function. It provides 32-bit 4-channel counter/encoder for incremental encoders, which supportsCW/CCW, Pulse/Direction and A/B mode. The trigger output supports sink, source and TTL type with 10kHz frequency, providing trigger delay time function for each trigger outputchannel and 1D, 2D position compare. AMAX-4270 has 4-channel latch input with 10kHz for latching encoder value.AMAX-4270 features high speed trigger and latch function that can help users to achieve the AOI, glue dispensing, measurement, and storage assembly applications.
