B+B SmartWorx Serial RS-232 DB9 Female To TTL DB9 Male Port Powered Converter
BYADVANTECHPCN#3V6807MFG#232LPTTL
OUT OF STOCK
$77.99
PRODUCT HIGHLIGHTS
- Product ConditionNew and Factory Fresh
- Limited WarrantyLifetime
- Shipping Weight2 lbs.
- 1 x 9-pin DB-9 RS-232 Serial Female
- 1 x 9-pin DB-9 Serial Male
OVERVIEW

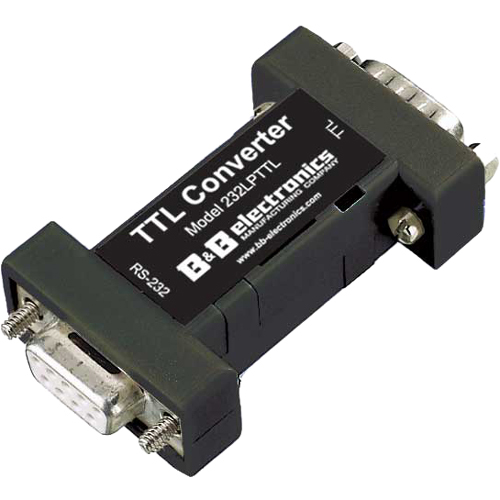

B+B SmartWorx Serial RS-232 DB9 Female To TTL DB9 Male Port Powered Converter
Model 232LPTTL converts RS-232 to 5VDC TTL/CMOS compatible levels. Model 232LPTTL33 converts RS-232 to 3.3VDC TTL/CMOS compatible levels. Two channels are used to convert from RS-232 to TTL/CMOS signals and two channels are used to convert from TTL/CMOS signals to RS-232. These converters support TD, RD, RTS, and CTS. DB9S female connector on the RS-232 side. DB9P male connector on the TTL/CMOS side. This unit is powered from the RS-232 data and handshake lines, whether the lines are high or low.
